QSD2308L/QSD2316L DVR User’s Manual
6
2.2 Front Panel Layouts
NOTE: We use two different front panel designs on these models. They
have the same function buttons but they are arranged differently.
Please match the front panel on your model with the layouts below.

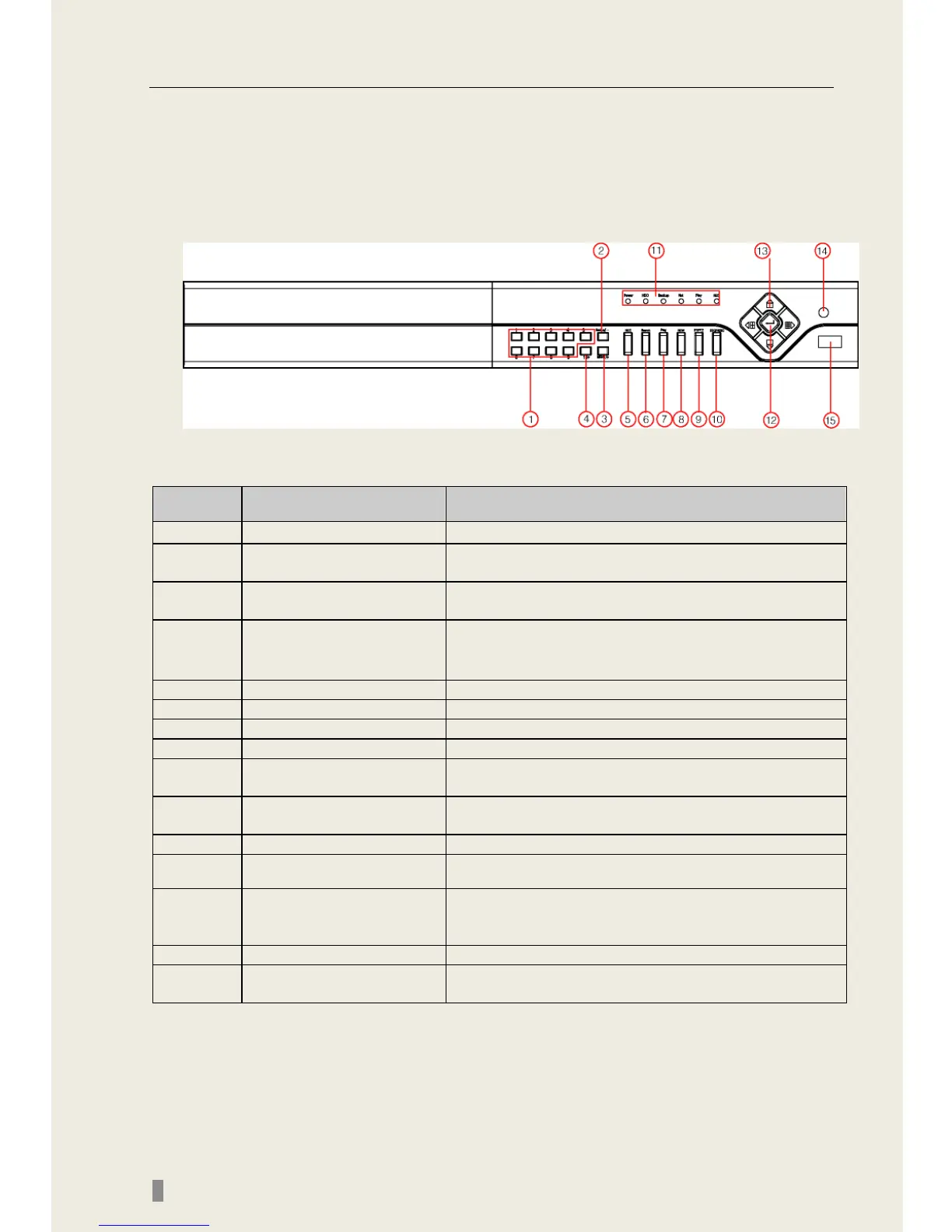

Fig 2.5 Front Panel Option A
Item
Name
Description
1
Digital buttons
Input numbers or choose camera
2
-/Backup
1. Decrease the value in setup
2. Enter backup mode from live view
3
+/Menu button
1. Increase the value in setup
2. Enter menu from live view
4
10+/Info
1. Enter number 10 & above with other numbers 0-9,
push twice for 10.
2. System Info
5
RECORD
Record manually
6
SEARCH
Enter search mode
7
PLAY
Enter playback menu
8
REW
Rewind
9
FF/PTZ
1. Fast forward
2. Enter PTZ mode from live view
10
STOP/ESC
1. Quit playback mode
2. Exit the current menu or status
11
Indicator
Working indicators of power, HDD, network, etc
12
Enter button
To confirm the choice or setup
13
Direction/Multi-screen
button
1. Direction buttons. Move cursor in setup or pan/tilt
PTZ
2. Change screen display like single, 4 and 8 screens
14
IR Receiver
For remote control
15
USB port
To connect external USB flash drive for backup or
updating firmware
Table 2.1 Functions of Front Panel Buttons Option A
