QSD2308L/QSD2316L DVR User’s Manual
5

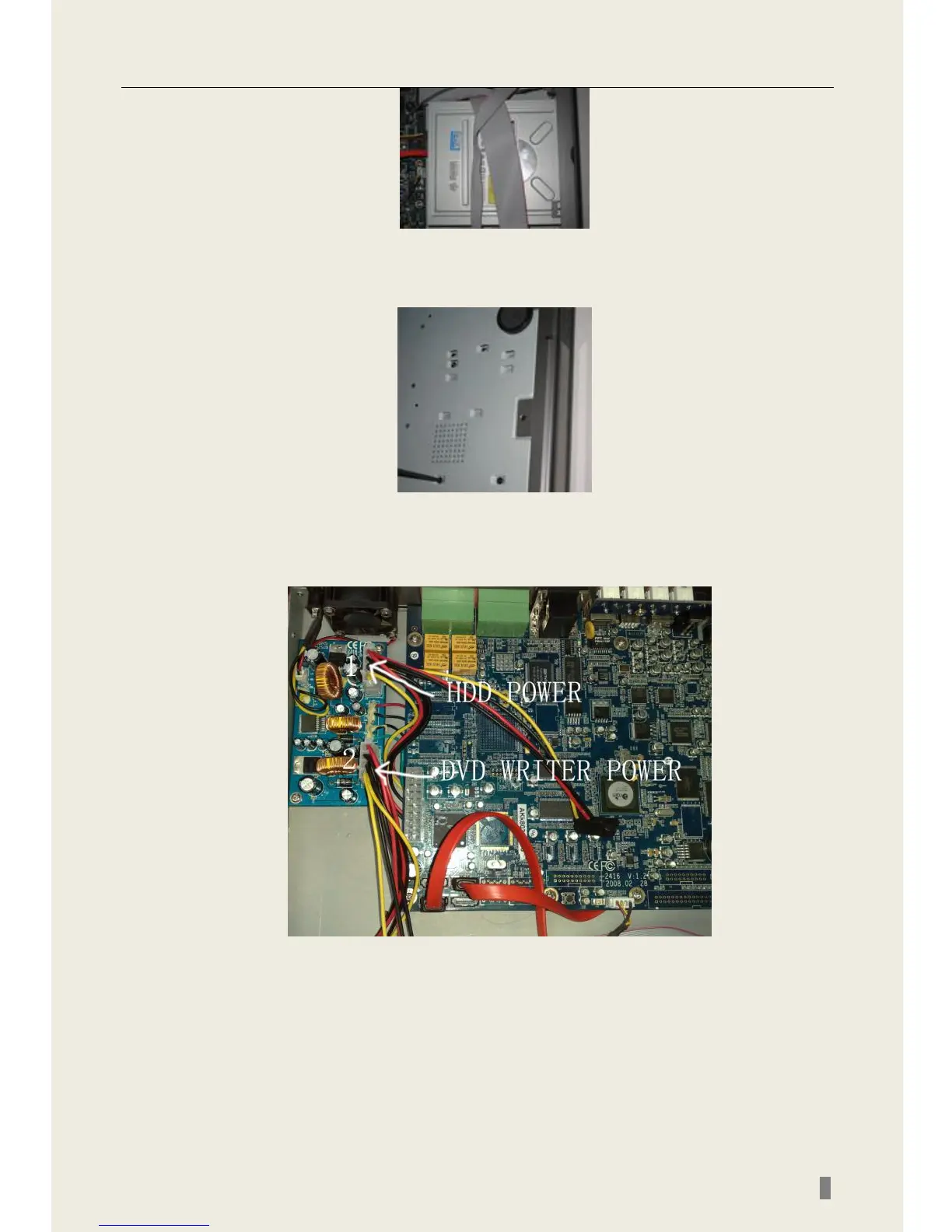

Fig 2.3 Connect the Writer
STEP3 Screw in the writer as below.
Fig 2.4 Screw in the Writer
STEP4 Attach the power cable to the proper system board connection.
