QSD2308L/QSD2316L DVR User’s Manual
53
PTZ control:
Click P.T.Z to enter the interface shown below. Click on a channel to select
the speed dome.

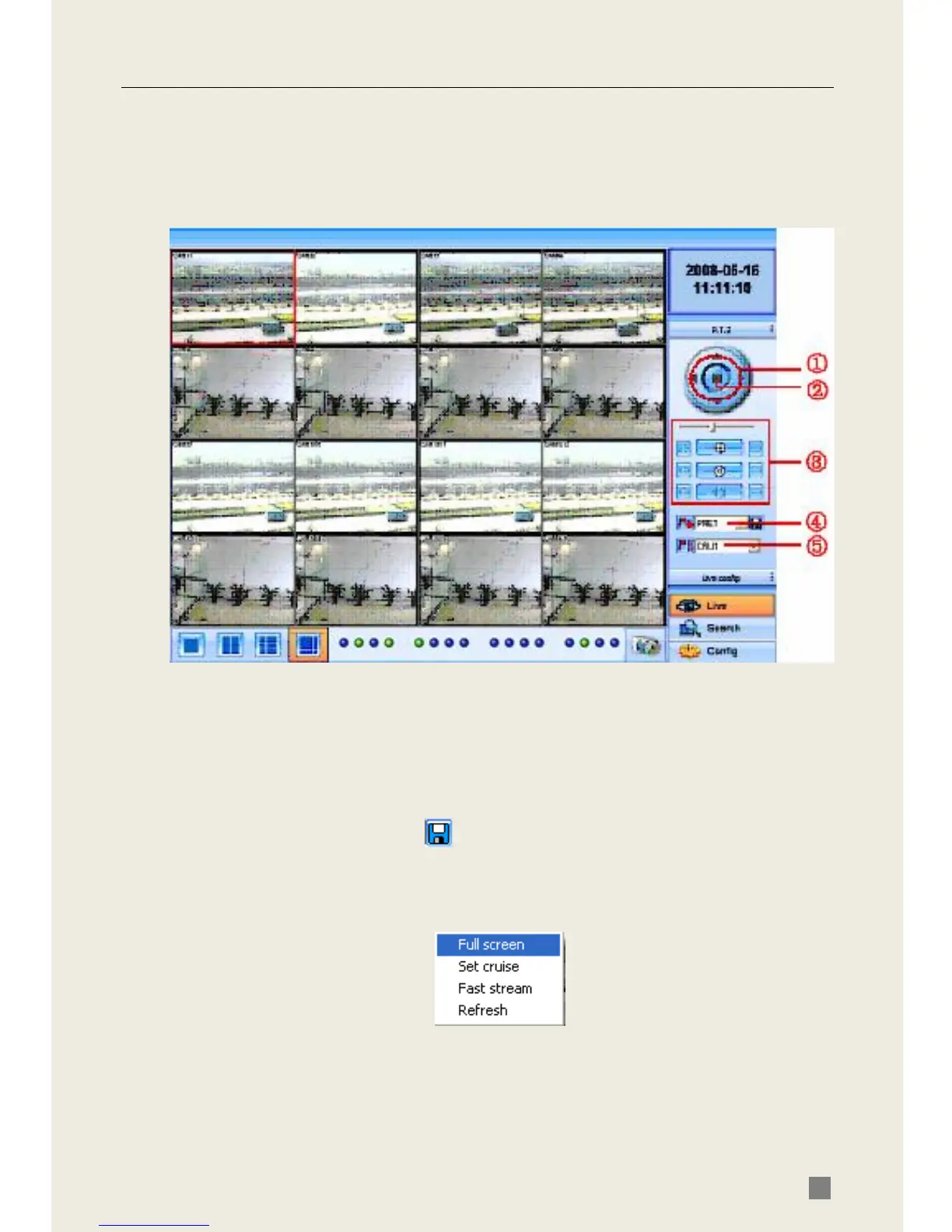

Fig 6.4 Remote PTZ control
① Move the speed dome.
② Stop adjustment.
③ Adjust zoom, focus, Iris, Speed.
④ Go to the preset. Click to rename the preset.
⑤ Select and do auto cruise.
Click right mouse, a pull-down menu will appear as shown below.
Fig 6.5 Preview Control Menu
Audio: Enable remote audio transmission. Users can hear the audio from the
DVR.
Full screen: The picture will fill the screen, without tools bar display. Double
click or click right mouse button to return to the previous interface.
