QSC PowerLight Series Technical & Service Manual

14 QSC Audio Products, Inc.
TD-000083-00
Key QSC Part Description Qty.
1
2
3
4
WP-000177-00 Line filter PCB assy. 1
NW-000021-03 Flat Washer 1
WP-000042-00 AC power cord assy., 30A 125V 1
SW-000027-SW Switch AC 1
Key QSC Part Description Qty.
1
2
3
4
5
WP-000181-00 Line filter PCB assy. (230V) 1
C0-000099-00 Connector line side flange 1
SC-083061-PU Screw, #8-18 × 3/8”, flat head 2
SW-000027-SW Switch AC 1
WC-000022-00 Cord set 3 cond. 16A 250 VAC 1
120V version
230V version

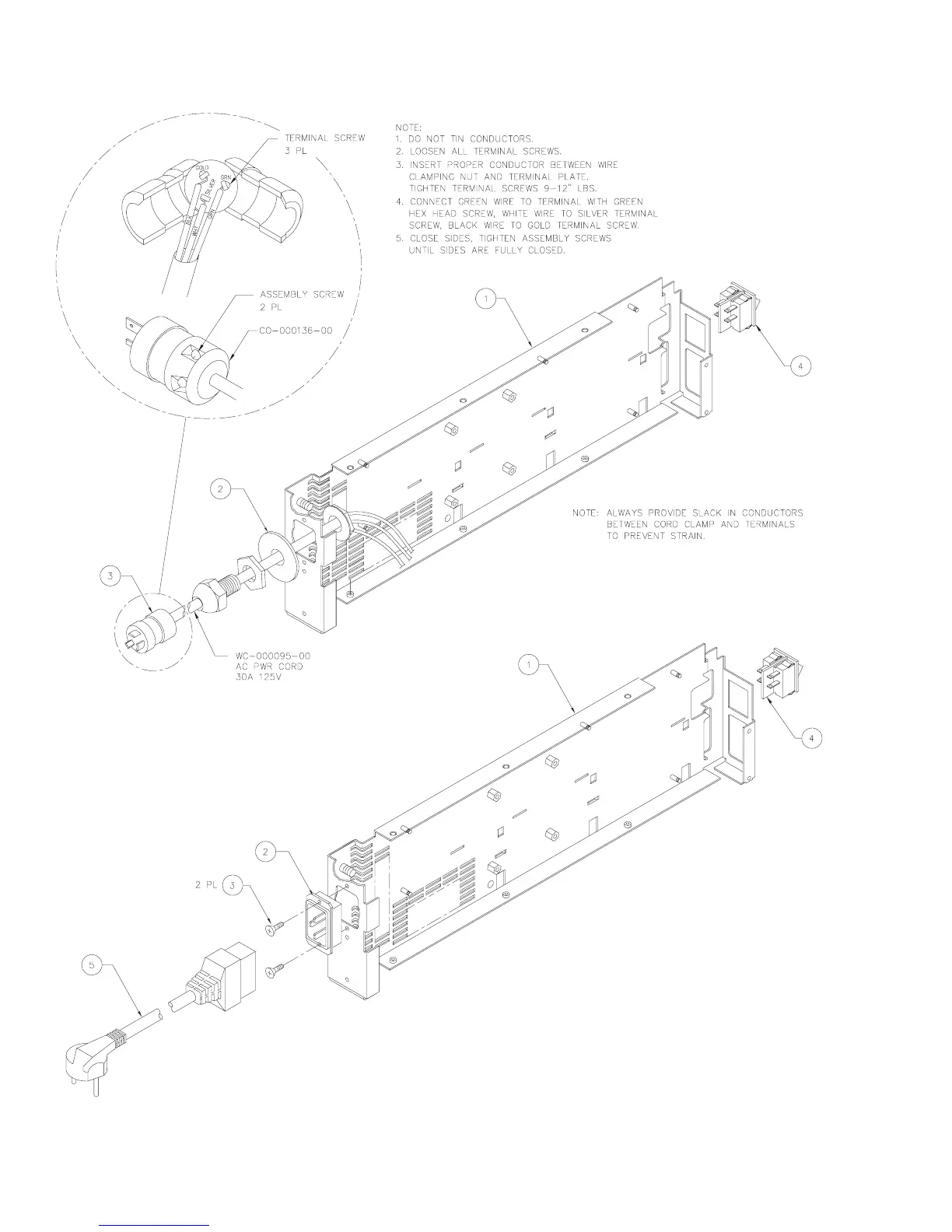

Figure 2.8. Assembly details of the AC line filter.

QSC PowerLight Series Specifications

General

Channels	2
Input Impedance	20kΩ balanced, 10kΩ unbalanced
Cooling	Variable speed fan
Connectors	XLR, Speakon, binding posts
Protection	Thermal, short circuit
