Quadra-Fire CASTILE - Dimensions and Clearances; Appliance Dimensions

Page20
October 27, 2011
R
Castile & Santa Fe CE Insert
7069-101B
6

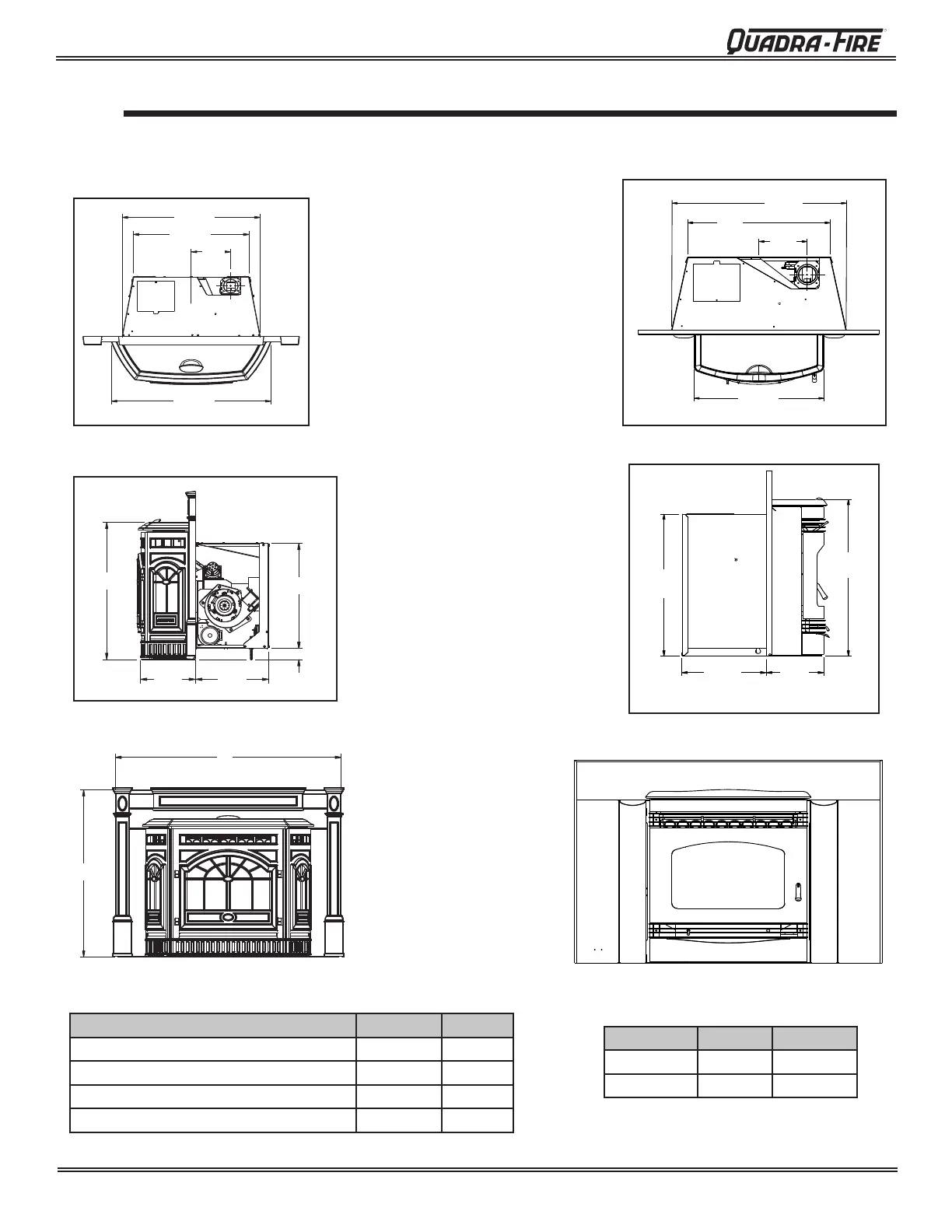

Dimensions and Clearances
A. Appliance Dimensions
Figure 20.3- Front View
Figure 20.1 - Top View
Figure 20.2 -Side View
819mm
707mm
594mm
203mm
483mm
629mm
249mm
330mm
51mm
Overall Size A B
MetalSurroundw/CastTrim,STD 1080mm 762mm
MetalSurroundw/CastTrim,LRG 1219mm 864mm
MetalSurroundw/StandardTrim,STD 1092mm 787mm
MetalSurroundw/StandardTrim,LRG 1294mm 864mm
A
B
21-1/2”
(546mm)
28-7/8”
(733mm)
23-5/8”
(600mm)
8”
(203mm)
C
L
Figure 20.4 - Top View
12-3/4”
(
324mm)
8-5/8”
(
219mm)
23”
(
584mm)
25-3/8”
(
645mm)
Figure 20.5 -Side View
Figure 20.6- Front View
Panel A B
Standard 762mm 1016mm
Large 838mm 1270mm
CASTILE ONLY
SANTA FE ONLY
