Quadra-Fire CASTILE - Vertical Outside Air Installation

R
October 27, 2011
Page27
Castile & Santa Fe CE Insert
7069-101B

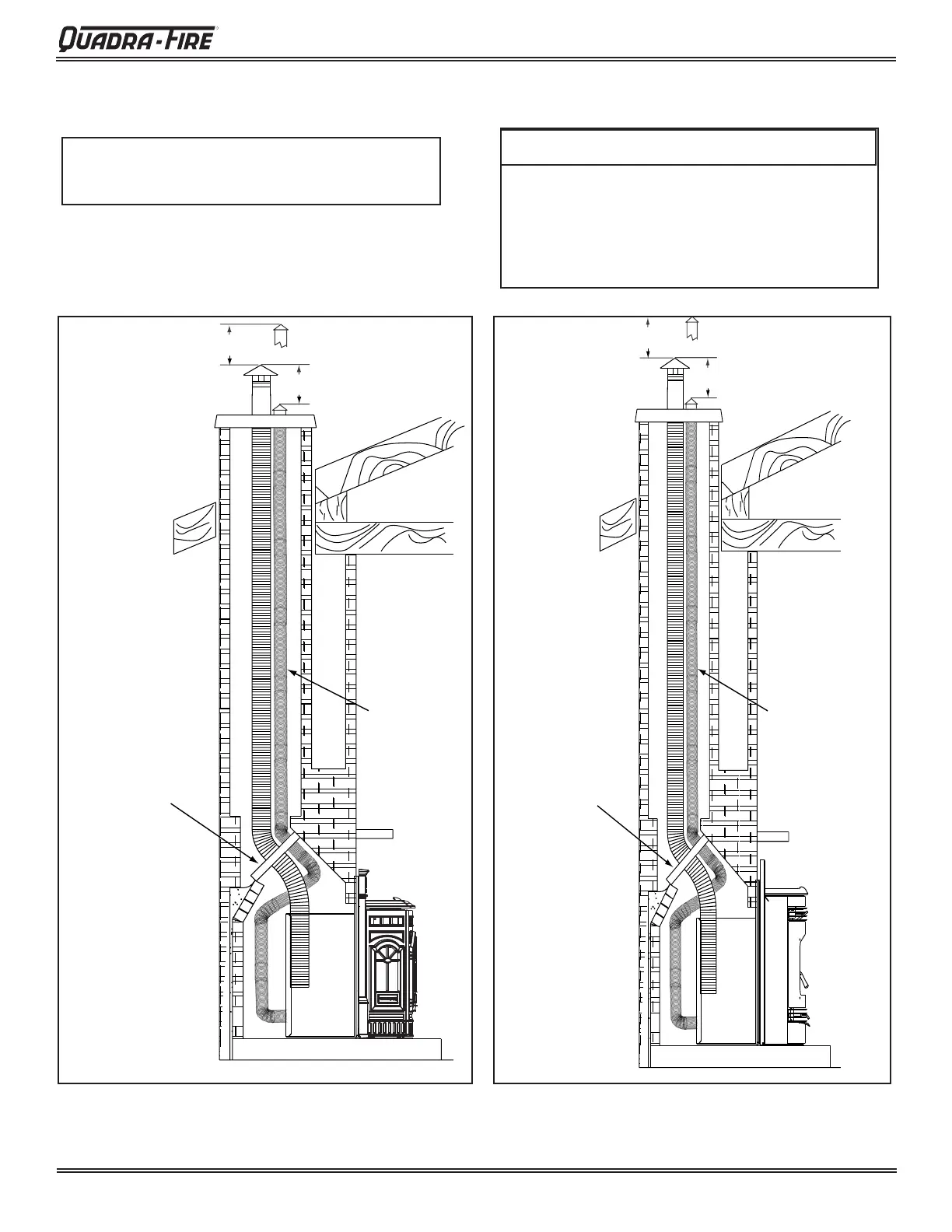

B. Full Reline With Vertical Outside Air
Figure 29.1
Outside Air
Termination
at
Chimney Top
12” (305mm)
min. below
12” (305mm)
min. above
NOTE; Use metal
plate around
exhaust vent pipe
and seal all edges
with non-flammable
insulation such as
mineral wool or
ceramic.
Do not use high
temperature caulk-
ing materials to seal
any edge to prevent
future serviceability
NOTE: Check clearances carefully for this type of
installationto ensure adequate roomforoutside air
venting.
Checkbuildingcodespriortoinstallation.
• InstallationMUSTcomplywithlocal,regional,stateand
nationalcodesandregulations.
• Consultlocalbuilding,reofcialsorauthoritieshaving
jurisdiction about restrictions, installation inspection,
andpermits.
CAUTION
Outside Air
Termination
at
Chimney Top
12” (305mm)
min. below
12” (305mm)
min. above
NOTE; Use metal
plate around
exhaust vent pipe
and seal all edges
with non-flammable
insulation such as
fiberglass, mineral
wool or ceramic.
Do not use high
temperature caulk-
ing materials to seal
any edge to prevent
future serviceability
Figure 29.2
