Interface Page 69 of 85

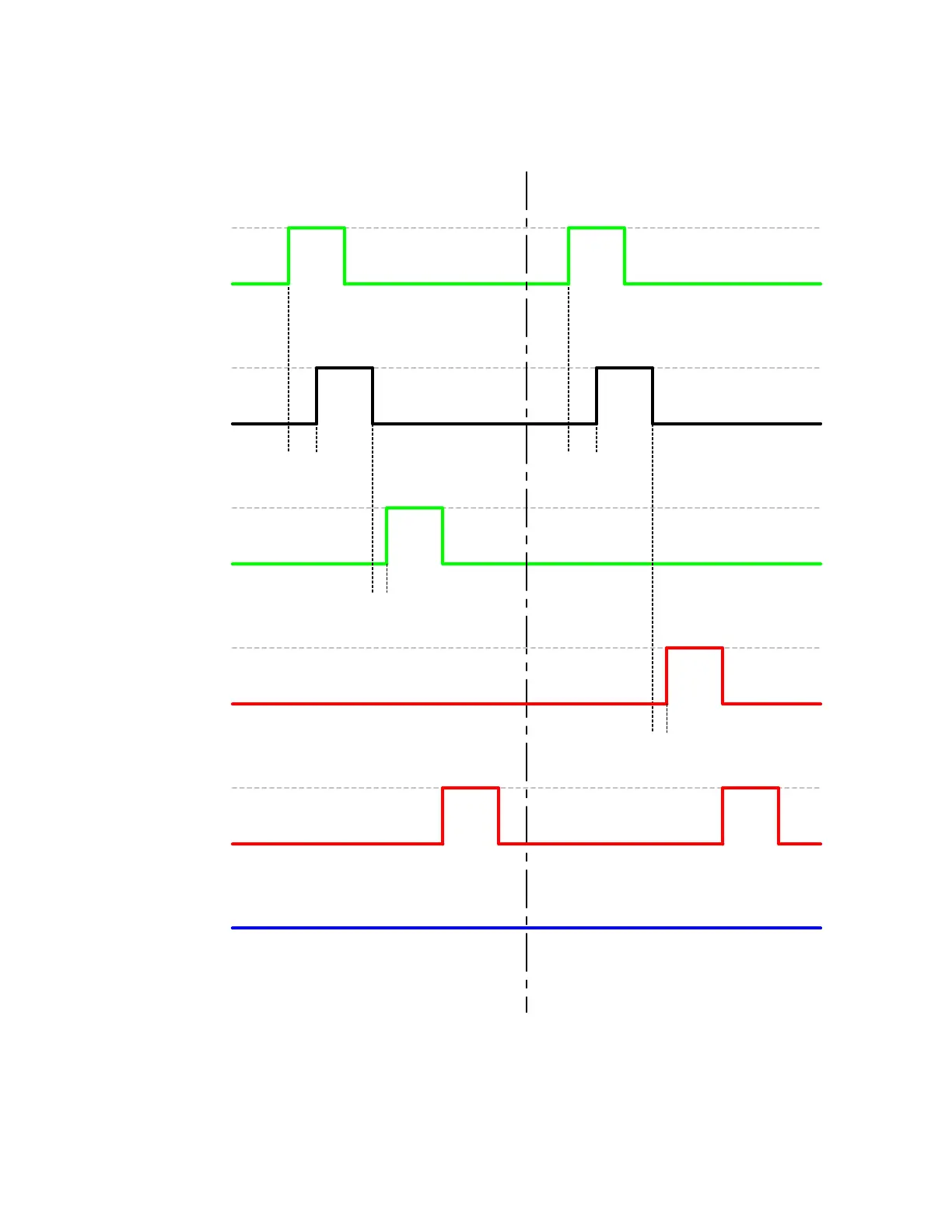

Figure 3-5 illustrates the timing diagram for the Sentry Plus Series instruments under a PASS

condition and a FAIL condition.

Figure 3-5: Sentry Plus Series Timing Diagram

OPEN

START

UNDER

TEST

PASS

180ms

0.5ms

180ms

PASS CONDITION FAIL CONDITION

OPEN

FAIL

RESET

0.5ms

OPEN

INTERLOCK

COM
