3.6 S08 Gun Probe
The S08 Gun Probe provides fast testing capability with pinpoint control. Use the black lead of
the S02 Lead Set with the S08 Gun Probe.
1. Connect the S02 black banana plug to the Sentry Plus RTN/LOW terminal.
2. Connect the S02 black alligator clip to the low side of the DUT.
3. Connect the white banana plug to the Sentry Plus OUTPUT terminal.
Figure 3-10 illustrates this connection of the S08 probe to a Sentry 30 Plus unit.
S08
GUN PROBE
Custom
White
Banana
Plug
to
OUTPUT
++++
----
Rack
of
DUTs
F1
RTN/LOW
F2
OUTPUT
DANGERPASS FAIL
F1
F2
F3
F4
START
STOP
Sentry 30 Plus AC/DC/IR Hipot Tester
01
Q uadTech
!
CAUTION
F4
F3
Max 5kVAC
6kVDC
CAL UPDATE
Use S02 Lead:
Black Banana Plug
to RTN/LOW
1
2
3

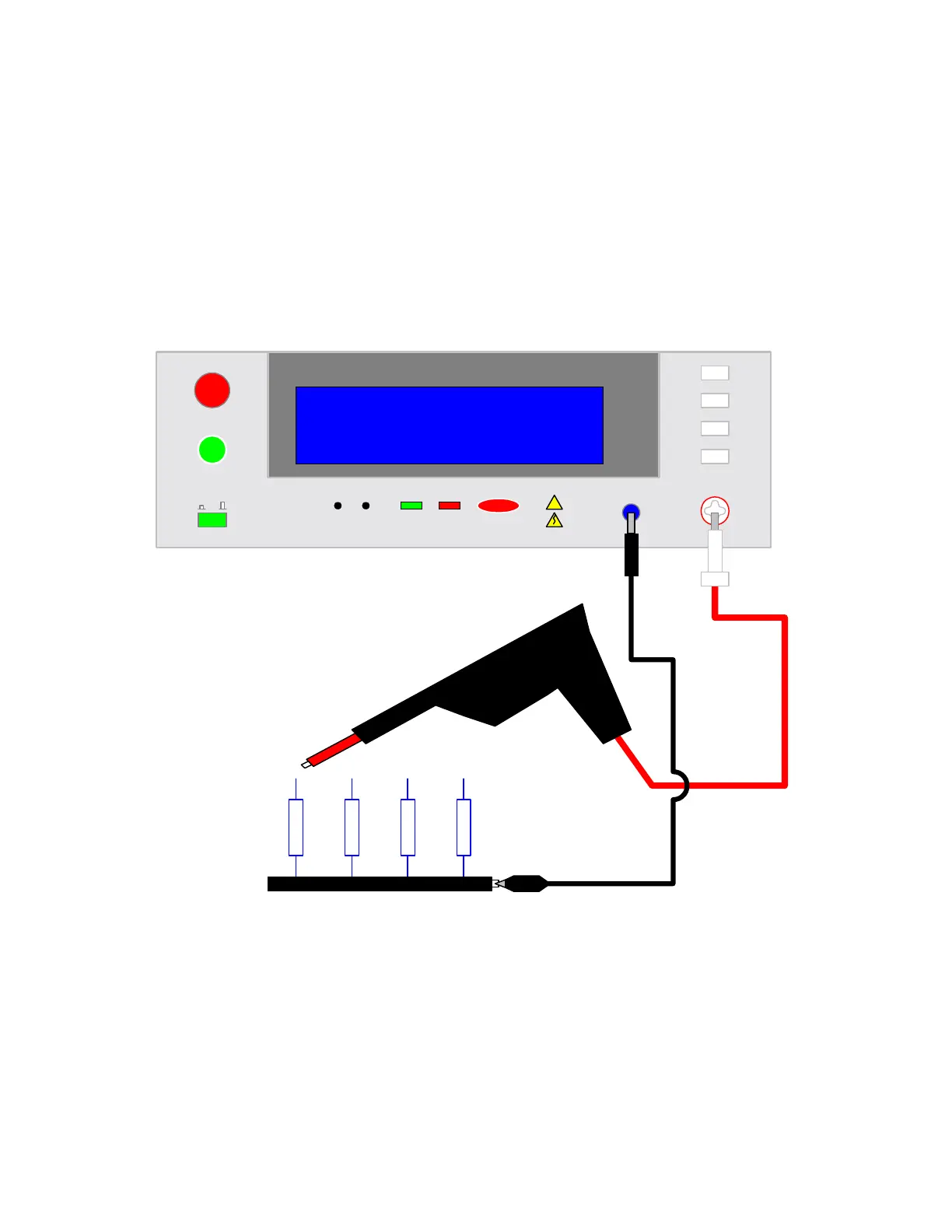

Figure 3-10: S08 Gun Probe connected to Sentry 30 Plus Hipot Tester
