QuadTech Sentry 30 Plus User Manual

Page 72 of 85 Interface
3.4 S03 Corded Product Adapter (115V)
The S03 Corded Product Adapter is a 3-prong electrical outlet box to facilitate testing of corded
products. The S03 cable is connected to the Sentry Plus Series instrument via a two-lead set.
1. Connect the black banana plug to the Sentry Plus RTN/LOW.
2. Connect the white banana plug to the Sentry Plus OUTPUT terminal.
3.
Plug the DUT’s 3-wire power cord into the S03 corded product adapter.
4.
For GC test, connect GC Lead (700100) to rear Sentry Cont Check terminal and metal on
case of DUT.

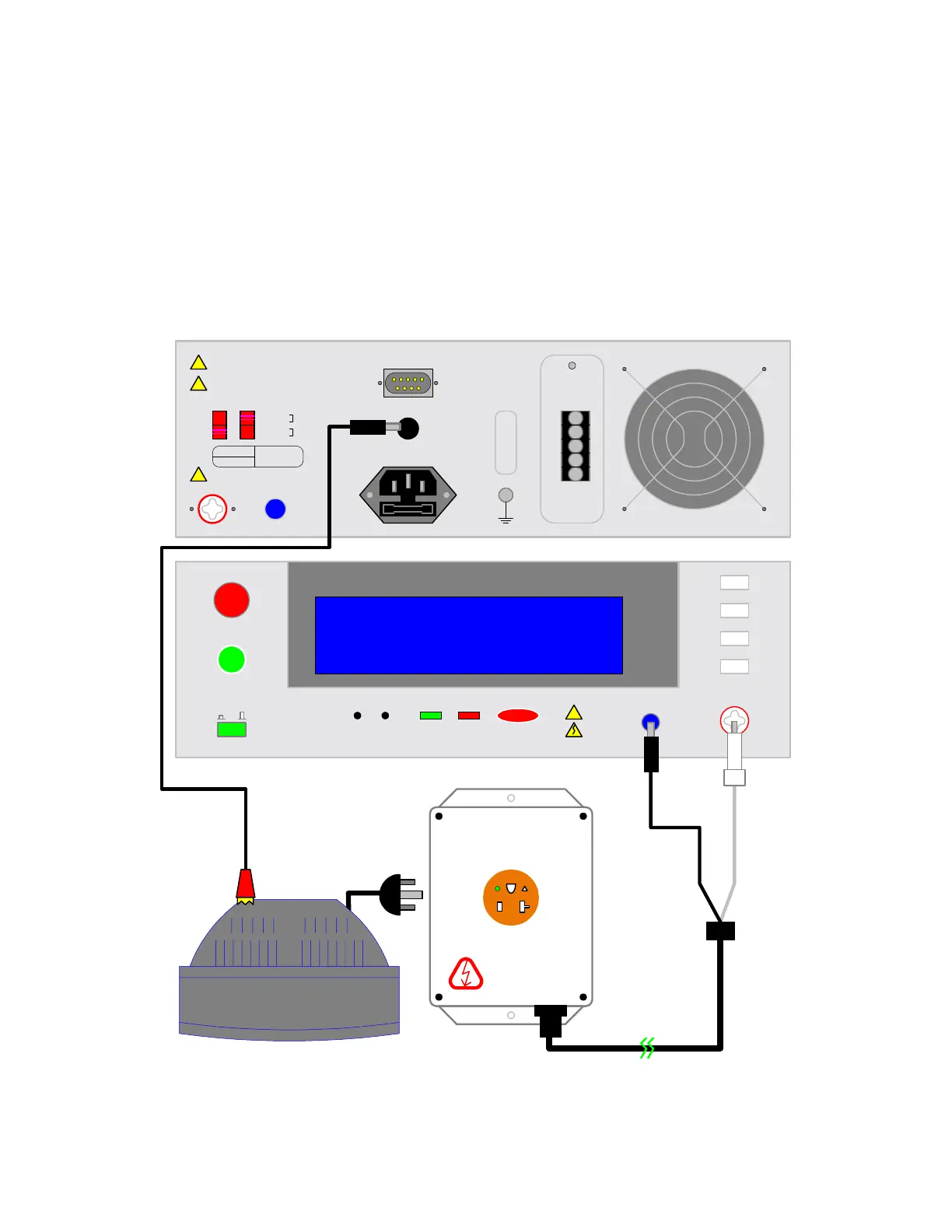

Figure 3-8 illustrates this connection of the S03 cable to a Sentry 30 Plus instrument.
S03 Corded
Product Adapter
Custom
White
Banana
Plug
to
OUTPUT
Black
Banana
Plug
to
RTN/LOW
DUT (Monitor)
DUT plugged into
S03 Adapter
F1
RTN/LOW
F2
OUTPUT
DANGERPASS FAIL
F1
F2
F3
F4
START
STOP
Sentry 30 Plus AC/DC/IR Hipot Tester
01
Q uadTech
!
CAUTION
F4
F3
Max 5kVAC
6kVDC
CAL UPDATE
3
1
2
HV OUTPUT
!
HIGH VOLTAGE
Max 5kVAC/6kVDC
RTN/LOW
!
CONT. CHECK OPTION
VOLTAGE SELECTOR
POLLUTION DEGREE 2
INS TALLATI ON CATEGORY II
WA RNING: F OR CONTINUED PROTECTION
AGAINST FIRE HAZARD, REPLACE ONLY WITH
THE SAME TYPE AND RATING OF FUSE AS
SPECIFIED FOR THE LINE VOLTAGE BEING
UTILIZED.
CAUTION: NO OPERATOR SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
PERSONNEL.
90V - 110V ~
216V - 250V ~
198V - 242V ~
108V - 132V ~
3.15AT
250V
1.6AT
250V
INTER
LOCK
COM
START
RESET
69
15
100V/120V/220V/240V~
50/60Hz 300W MAX
MODEL NO.
SERIAL NO.
FAN 50
o
C AUTO ON/OFF
Hipot
Connection
Ground Continuity Connection
4
DO NOT TOUCH WHILE UNDER TEST
QuadTech
MAX. VOLTAGE
5kVAC
6kVDC
20A 125V
Figure 3-8: S03 Corded Product Adapter
