BMC MAINTENANCE GROUP

3-85

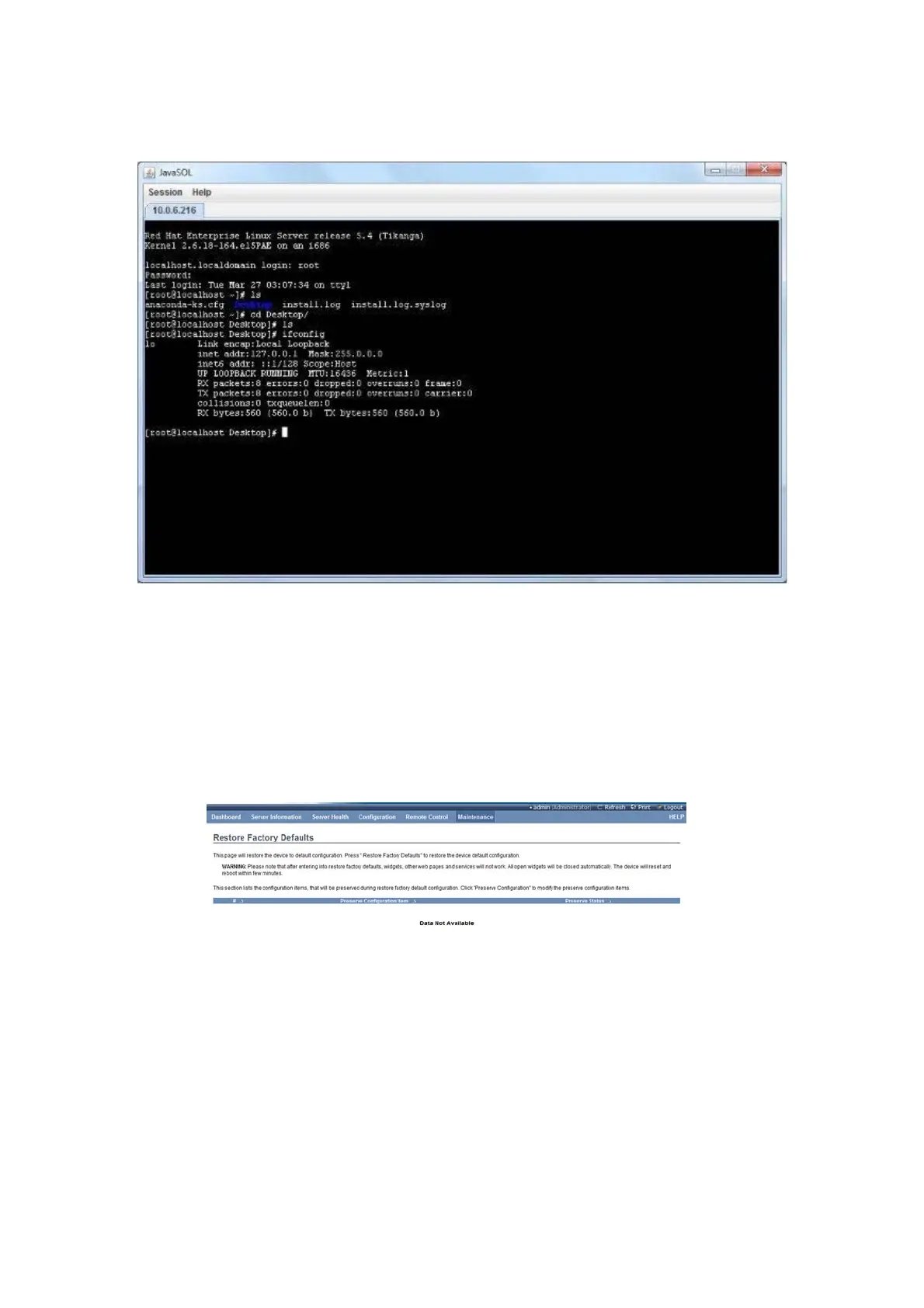

4. Click Connect to open the SOL redirection window as shown in the screenshot

below.

Maintenance Group

This group of pages allows you to do maintenance tasks on the device. The menu contains

the following items:

 Preserve Configuration

 Restore Factory Defaults

Figure 3-51. Restore Factory Defaults

Table of Contents3
Precautionary Measures9
Intended Application Uses10
Site Selection10
Equipment Handling Practices11
Power and Electrical Warnings11
System Access Warnings11
Rack Mount Warnings12
Cooling and Airflow13
Laser Peripherals or Devices13
General Information14
Structure of this Guide16
About the System17
1.1 Introduction18
Specifications18
1.2 Package Contents20
1.3 a Tour of the System21
- System Overview21
- System Front View23
  - Front Control Panel (FCP)23
- System Rear View24
- LED Status Definitions26
Bios29
2.1 BIOS Setup Utility30
- Operation30
- Setup Page Layout30
- Entering BIOS Setup30
- Keyboard Commands31
- Menu Selection Bar33
- Server Platform Setup Utility Screens33
- Main Screen34
- Advanced Screen35
- Chipset Screen36
- Server Management Screen37
- Boot Options Screen38
- Security Screen40
- Exit Screen41
- Loading BIOS Defaults43
2.2 BIOS Update Utility44
- Afulnx44
- ME Region Update44
- BIOS Setting Utility45
- BIOS Revision45
- Clear CMOS48
- Clear Password48
2.3 Server Management49
- Console Redirection49
- Network BIOS Support51
  - PXE Boot51
- Checkpoints51
3.1 Server Management Software59
- Server System Overview59
- BMC Key Features and Functions59
- Power System59
- Front Panel User Interface60
- LAN Interface60
  - Session and User61
- Serial over LAN61
- Time Sync61
- Sel61
- Platform Event61
  - Platform Event Filter61
- BMC Firmware Update62
  - DOS Recovery Utility62
  - Webui Update62
3.2 BMC Recovery63
- Recovery Process in DOS System63
- Recovery Process in Linux System63
- Recovery Process in Windows System63
3.3 Smash64
- System Level Commands65
- BMC Information68
Web Graphical User Interface (GUI) for ESMS70
- Using the Web GUI70
- Login70
- Dashboard71
Server Information74
FRU Information74
- Basic Information75
- Product Information76
- Server Component76
- Server Identify77
- BIOS POST Code78
- Server Health Group78
- Sensor Readings79
- Event Log81
Configuration Group84
- Active Directory84
- Dns88
- LDAP/E-Directory92
- Mouse Mode95
- Network97
- Pef100
- Radius108
- Remote Session110
- Smtp111
- Sol114
- Ssl115
- User Management120
- Virtual Media124
- Services125
- LAN Port Settings128
Remote Control128
- Console Redirection129
- Server Power Control140
- Java SOL141
Maintenance Group143
- Preserve Configuration144
- Restore Factory Defaults146
Firmware Update147
- BMC Firmware Update147
  - BIOS Update154
- Log out154
- User Privilege154
  - Regulatory and Compliance Information156
4.1 Electromagnetic Compatibility Notices157
- FCC Verification Statement (USA)157
- Europe (CE Declaration of Conformity)157
- VCCI (Japan)157
- BSMI (Taiwan)157
- Regulated Specified Components158
- Restriction of Hazardous Substances (Rohs) Compliance158
- End of Life / Product Recycling158
Product Regulatory Compliance Markings159
