QUANTA QuantaGrid S31A-1U - System Rear I;O; Power Sub-System (Redundant PSU SKU)

ABOUT THE SYSTEM SYSTEM REAR VIEW
1-8

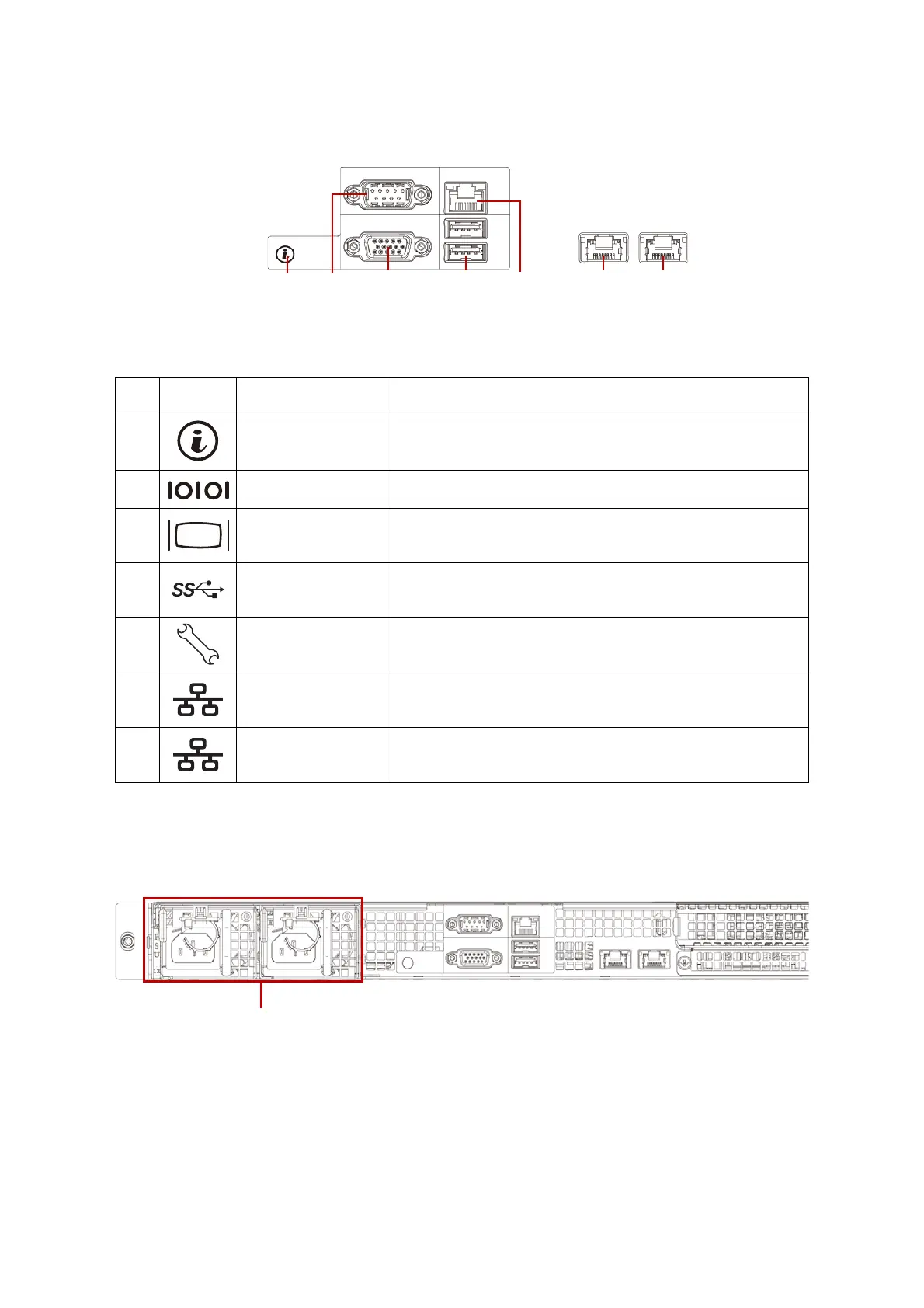

System Rear I/O
Figure 1-6. System Rear I/O
Power Sub-System (Redundant PSU SKU)
Figure 1-7. Redundant PSU to Mainboard Module Description
A single power supply unit (default) and power distribution board (PDB) are supplied in
the system. A secondary PSU is available for redundacy functionality.
Table 6: System Rear I/O Defintition
NO.ICON NAME DESCRIPTION
1 ID button with LED Toggle the identification when pressing
2 COM port DB9 port for debug or terminal concentrator
3VGA connector
Maximum display resolution: 1920x1200 32bpp@60Hz
(reduced blanking)
4 USB ports USB 3.0 ports
5 Dedicated NIC Dedicated RJ45 connector
6 LAN2 RJ45 connector featuring share NIC
7LAN1 RJ45 connector
23 45 617
PSU
