ABOUT THE SYSTEM LED STATUS DEFINITIONS
1-11
BMC Management Port LED
The system mainboard includes GbE dedicated management port. The RJ45 connector
has two built-in LEDs. See the following illustration and table for details.

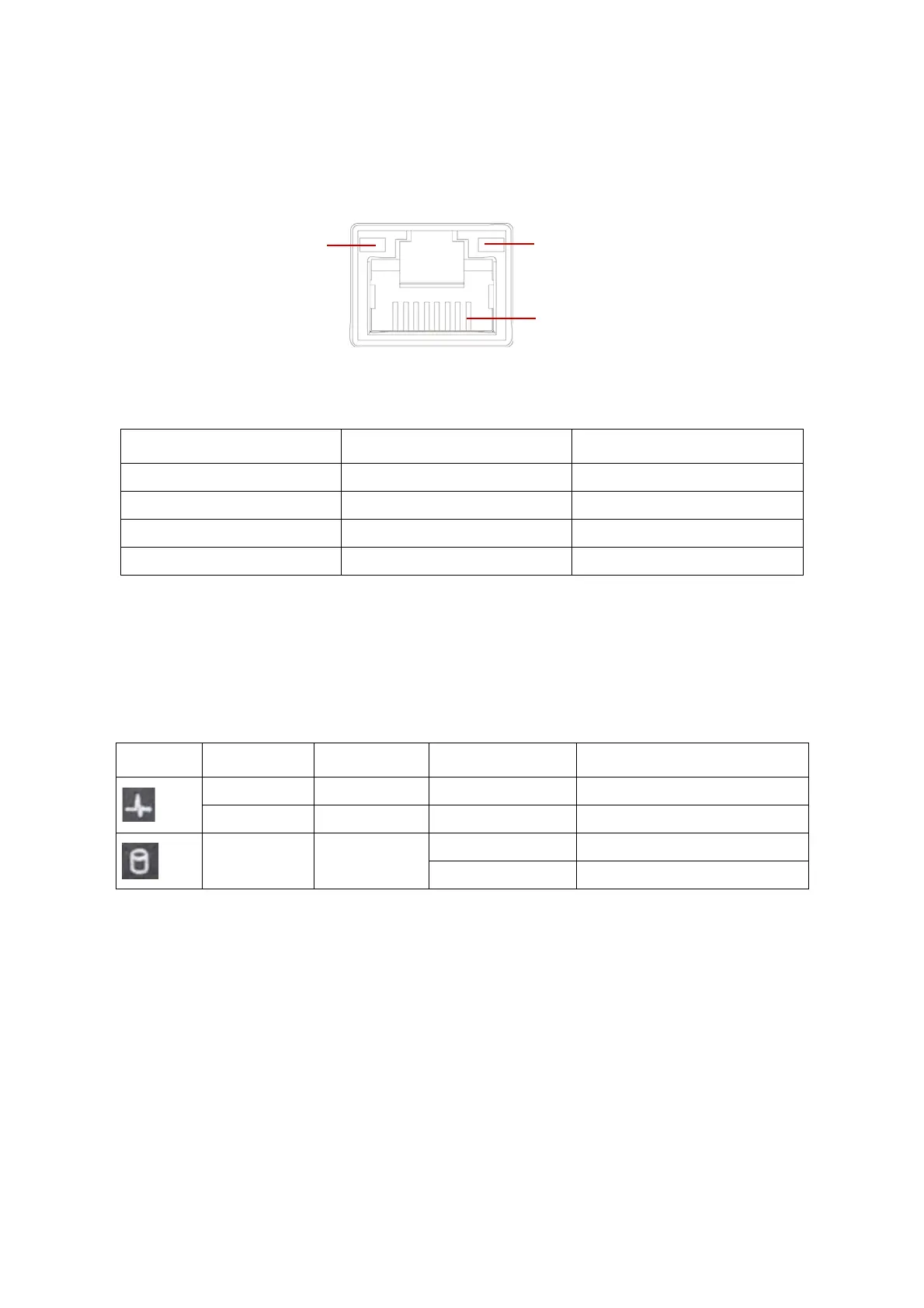

Figure 1-11. RJ45 LAN Connector
HDD LED
The following LED behavior table represents LED conditions when a driver is online and
the slot is not empty.
* Only support SATA/SAS HDD/SSD.
Table 11: RJ45 LED Description
CONDITION LINK ACTIVITY
Unplugged Off Off
1G active link On amber Blinking green
100M active link On green Blinking green
10M active link Off Blinking green
Table 12: HDD LED Status Behavior
ICON NAME COLOR CONDITION DESCRIPTION
HDD Present Blue On Drive is online
HDD Fault Amber On HDD failure
HDD Access Blue
Blinking HDD access is active
Off No access
Link
Activity
PIN 1
Location
