BMC MAINTENANCE GROUP
3-86
Preserve Configuration
This page allows the user to configure the preserve configuration items, which will be
used by the Restore factory defaults to preserve the existing configuration without over-
writing with default configuration.

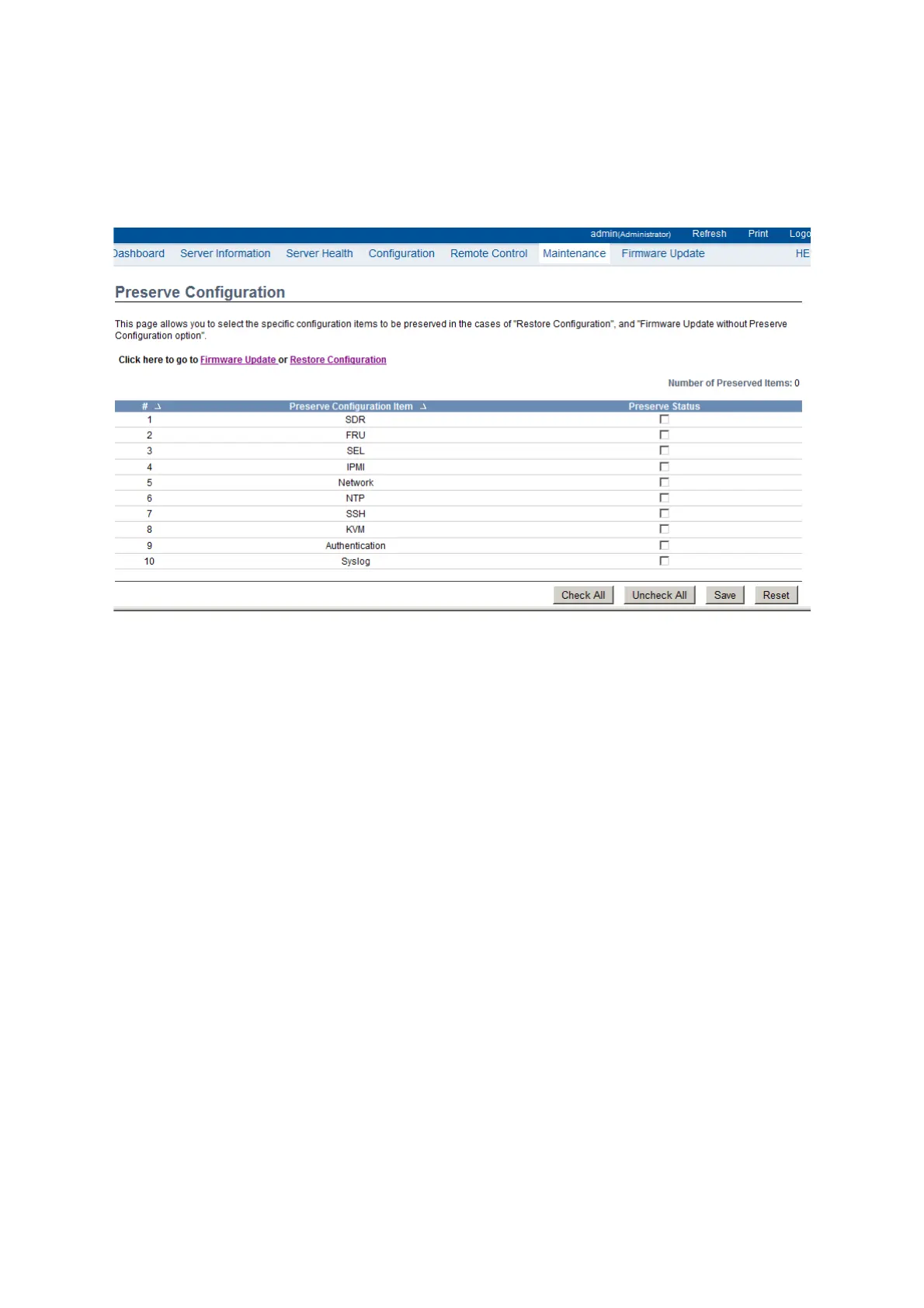

Figure 3-52. Preserve Configuration Page
Item Verification Procedure
1. SDR
Step 1: add OEM record (Please refer to IPMI 2.0 Spec. page 468/644)
Command: ipmitool raw 0x0a 0x24 0x0 0x0 0x51 0xc0 4 0x57 0x01 0x0 0xf5
Response: 55 00 „» 55 is the last record ID
Step 2: get OEM record, to use the last record ID to check if added successfully
(Please refer to IPMI 2.0 Spec. page 466/644)
Command: ipmitool raw 0x0a 0x23 0x0 0x0 0x55 0x0 0x0 0xff
Response: ff ff 55 00 51 c0 04 57 01 0 f5 „» ff ff means record ID 55 is the last record ID
Step 3: go to Web-UI to check “SDR” to be preserved
Step 4: upgrade firmware
Step 5: after Step 4, go to Step 2 and check if the OEM record is still preserved
(if preserved then PASS, else FAIL)
2. SEL
Step 1: Please use IPMI command to add an event. Ex: ipmitool event 1
Step 2: go to Event Log to check if the event added
Step 3: go to Web-UI to check “SEL” to be preserved
