ABOUT THE SYSTEM SYSTEM REAR VIEW
1-7

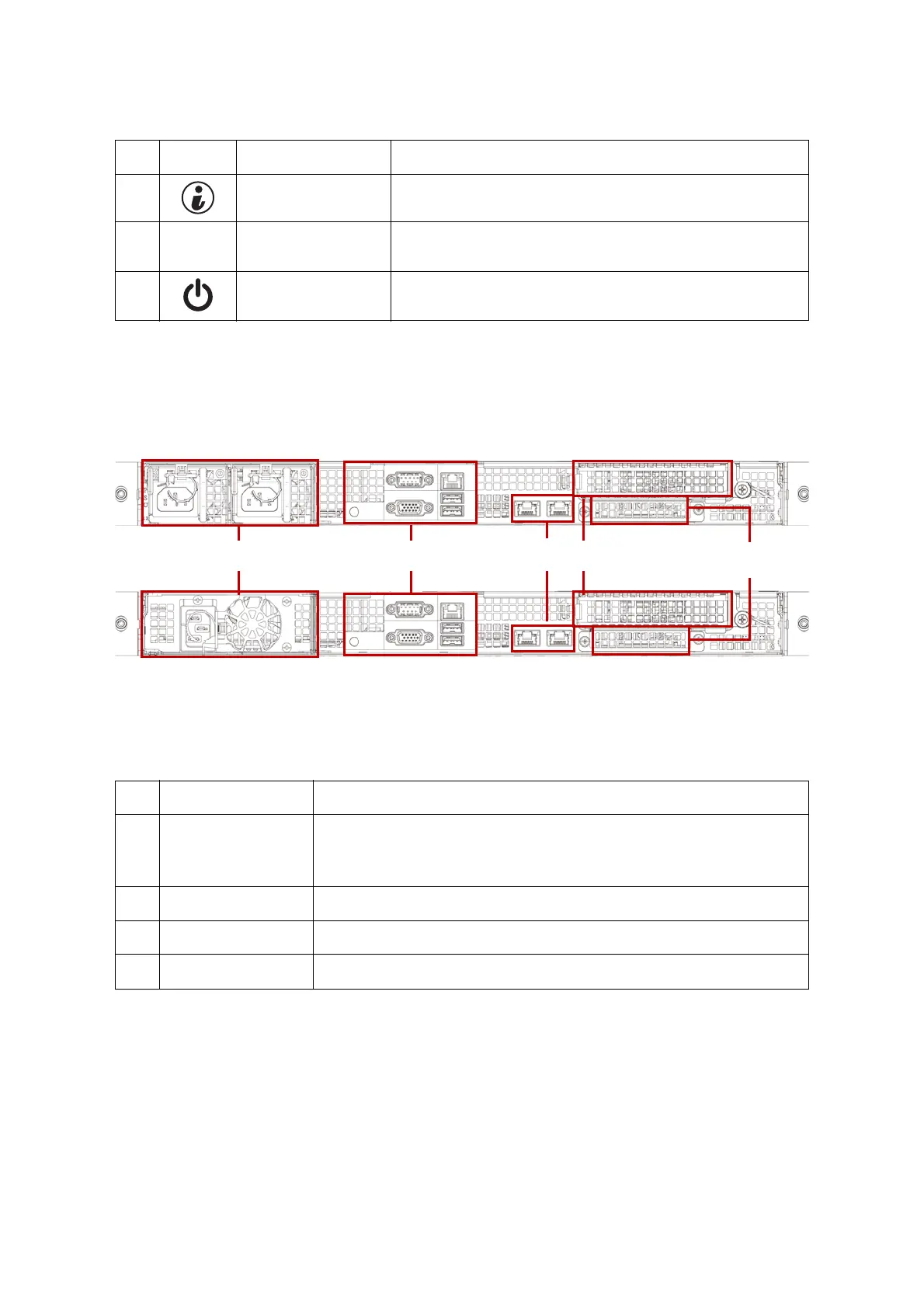

System Rear View
Figure 1-5. System Rear View
7 Identification LED Activate ID LED to identify system
8 ID button Toggles ID LED
9 Power button Power on / off
Table 5: System Rear View
NO.FEATURE DESCRIPTION
1 Power sub-system
Upper: Redundant power supply unit.
Bottom: Fixed power supply unit.
See Power Sub-System (Redundant PSU SKU) on page 1-8.
2 System I/O ports See System Rear I/O on page 1-8
3 Expansion slot PCIe expansion slot with PCIe x8 signal
4 OCP mezzanine slot Support OCP mezzanine card with PCIe x 8 signal
