BMC REMOTE CONTROL
3-70
5. Choose any one of the available interfaces from the Interface drop-down list.
6. Enter the Nonsecure port number in the Nonsecure Port field.
7. Enter the Secure Port Number in the Secure Port field.
8. Enter the timeout value in the Timeout field.
The values in the Maximum Sessions field cannot be modified.
9. Click Modify to save the entered changes and return to the Services Page else Click
Cancel to exit.
LAN Port Settings
Here you can configure LAN Port setting of the BMC NIC.

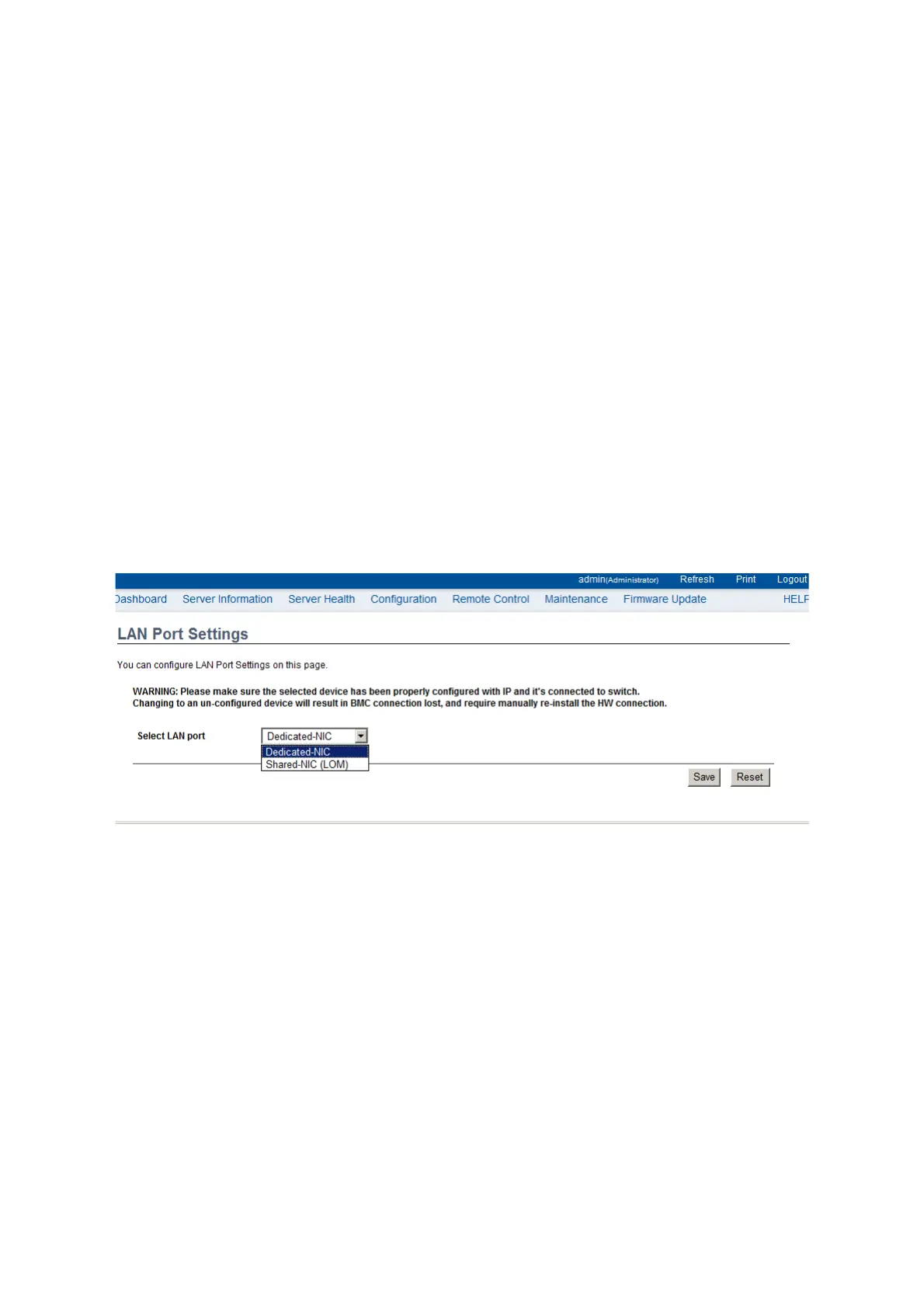

Figure 3-45. LAN Port Settings
Procedure:
1. Select LAN Port from the dropdown list
2. Click Save to save the change or click Reset to reset the previously saved values.
Remote Control
The Remote Control consists of the following menu items.
Console Redirection
Server Power Control
Java SOL
Interfaces, Nonsecure port, Secure port, Time out and Maximum Sessions will not be active
unless the current state is active.
