BMC DASHBOARD
3-14

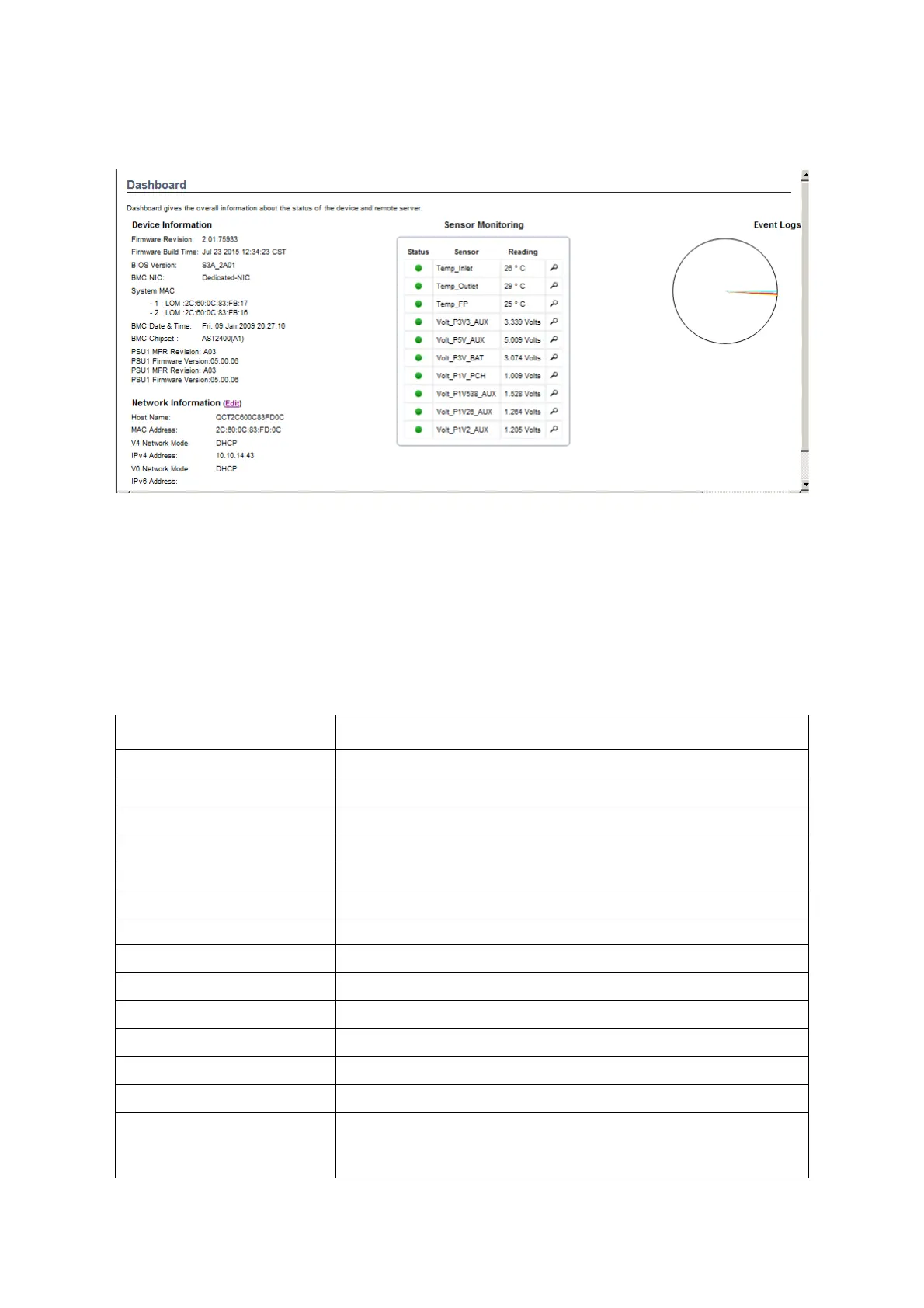

To open the Dashboard page, click Dashboard from the main menu. A sample screenshot
of the Dashboard page is as follows:
Figure 3-5. Dashboard
A brief description of the Dashboard page is given in the next section.
Device Information
The Device Information displays the following information:
Table 6: Device Information Page
ITEM DESCRIPTION
Firmware Revision The revision number of the firmware.
Firmware Build Time Firmware date and time.
BIOS Version The current BIOS firmware version.
PSU1 MFR Revision Display PSU1 manufacture revision.
PSU1 Firmware version Display PSU1 Firmware version.
PSU2 MFR Revision Display PSU2 manufacture revision.
PSU2 Firmware version Display PSU2 firmware version.
PDB Firmware Version The current PDB (Power Distribution Board) firmware version.
FCB Version The current FCB (Fan Control Board) firmware version.
PSU Max output Power Display power supply max output power (Watts).
MB Position Display the current position of the mainboard within the chassis.
Blackplane F/W version Display current backplane firmware version.
BMC NIC Display current used NIC.
System MAC
The maximum MAC address of system LAN port is 8. From Grantley plat-
form, BMC supports to show LAN Card Type (LOM/OCP Mezzanine/
Quanta Mezzanine) for System MAC.
