QUANTA QuantaGrid S31A-1U User Manual

ABOUT THE SYSTEM SYSTEM OVERVIEW
1-5

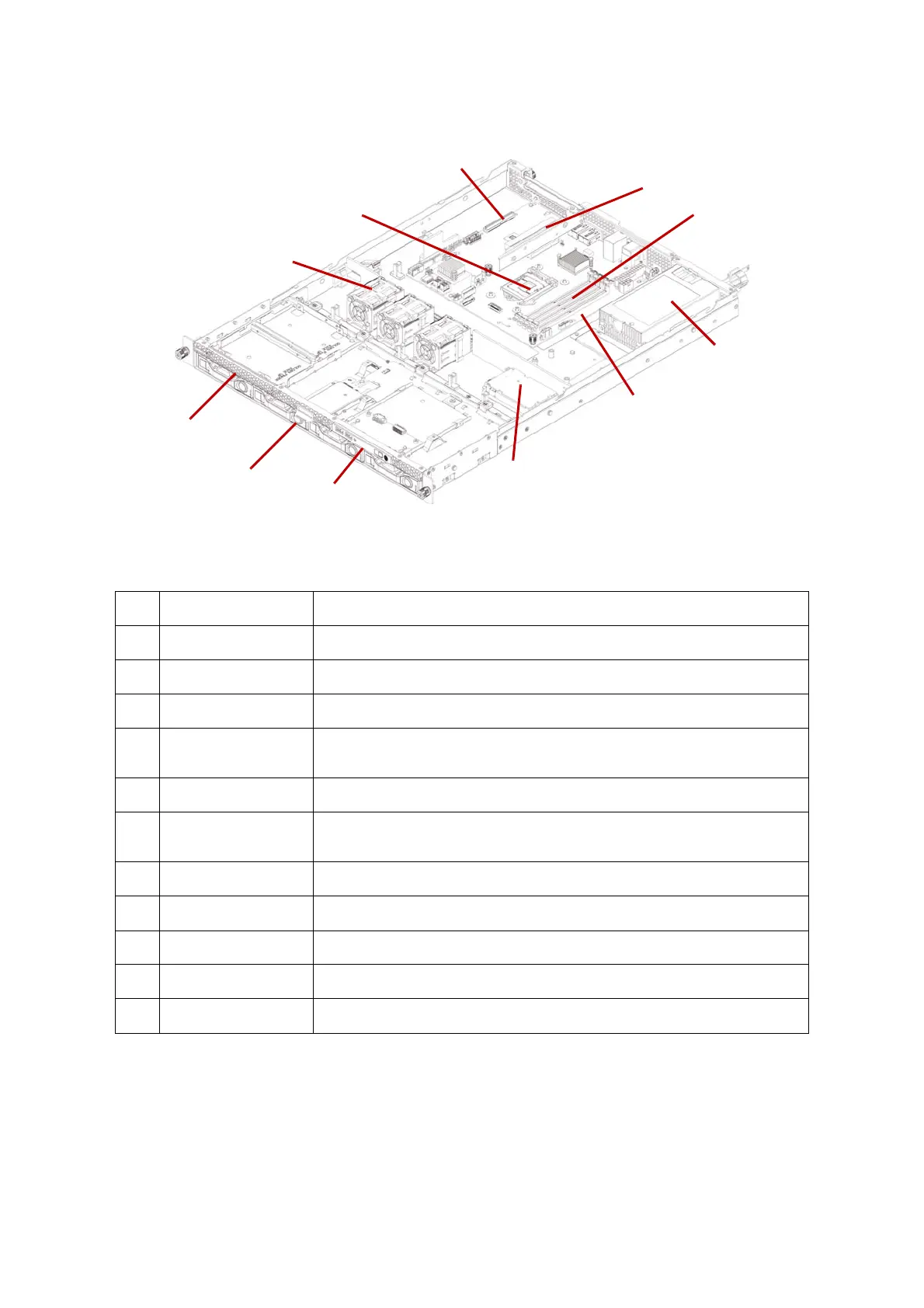

The fixed PSU configuration system overview is displayed in the following image:
Figure 1-2. Fixed PSU System (SKU2) Component Overview
Table 2: Component Overview
NO.ITEM DESCRIPTION
1 Fan module (3) System fan modules
2 CPU socket LGA 1151 socket
3 OCP mezz slot Support OCP mezzanine card, PCIe x8, Gen 3.0
4 Riser assembly
 Support PCIe expansion card, PCIe x 8, Gen 3.0
 Support QCT SAS mezzanine card, PCIe x 8, Gen 3.0
5 DIMM slots (4) DDR4 DIMM slots
6 PSU assembly
 SKU1: Redundant power supply unit assembly
 SKU2: Fixed power supply unit assembly
7 Mainboard System mainboard
8 Backup battery Backup battery for SAS mezzanine card
9 Front control panel See Front Control Panel (FCP) on page 1-6
10 HDD assembly 4 x 3.5” SAS/SATA hard disk drive assemblies
11 SSD assembly 2 x solid state disk drive assemblies.
2
5
7
10
1
6
4
3
9
8
11

QUANTA QuantaGrid S31A-1U Specifications

General

Brand	QUANTA
Model	QuantaGrid S31A-1U
Category	Server
Language	English
