Connect to Power3.3
The switch has two Power Supply Units (PSU). Each PSU has an AC power connector. Depending on
your needs, you may opt to use one or both PSUs at a time.
To connect the switch to a power source, do the following:
Connect one end of the AC power cord to an AC power connector.1.
If you want to use two PSUs, connect another strip of AC power cord to the other AC power 2.
connector. Otherwise, skip this step.
Connect the other end(s) of the AC power cord(s) to grounded power outlet(s).3.
The switch has no power button. Once an AC power cord is connected to a power outlet, the switch
power is turned on. The Power LED lights green.
Check the Installation3.4
Check the following pointers to inspect the installation:
Is the switch securely installed and stable?•
Is/Are the AC power cord(s) properly connected to the power outlet(s)?•
Is the Power LED (on the Console port) lit green?•
Connect Equipment3.5
You can connect equipment to the switch through the SPF+ and QSFP+ ports.
SFP+ Port3.5.1
The switch has 48-SFP+ ports. The Small Form-Factor Pluggable Plus (SFP+) port is the second
generation of the SFP interconnect system designed for 10Gb/s data rate.
The SFP+ ports are numbered and have corresponding SFP+ port LEDs. The lower row ports are
even numbered (i.e. Port 2, Port 4, Port 6, and so on). The upper row ports are odd numbered (i.e.
Port 1, Port 3, Port 5, and so on). See illustration below.

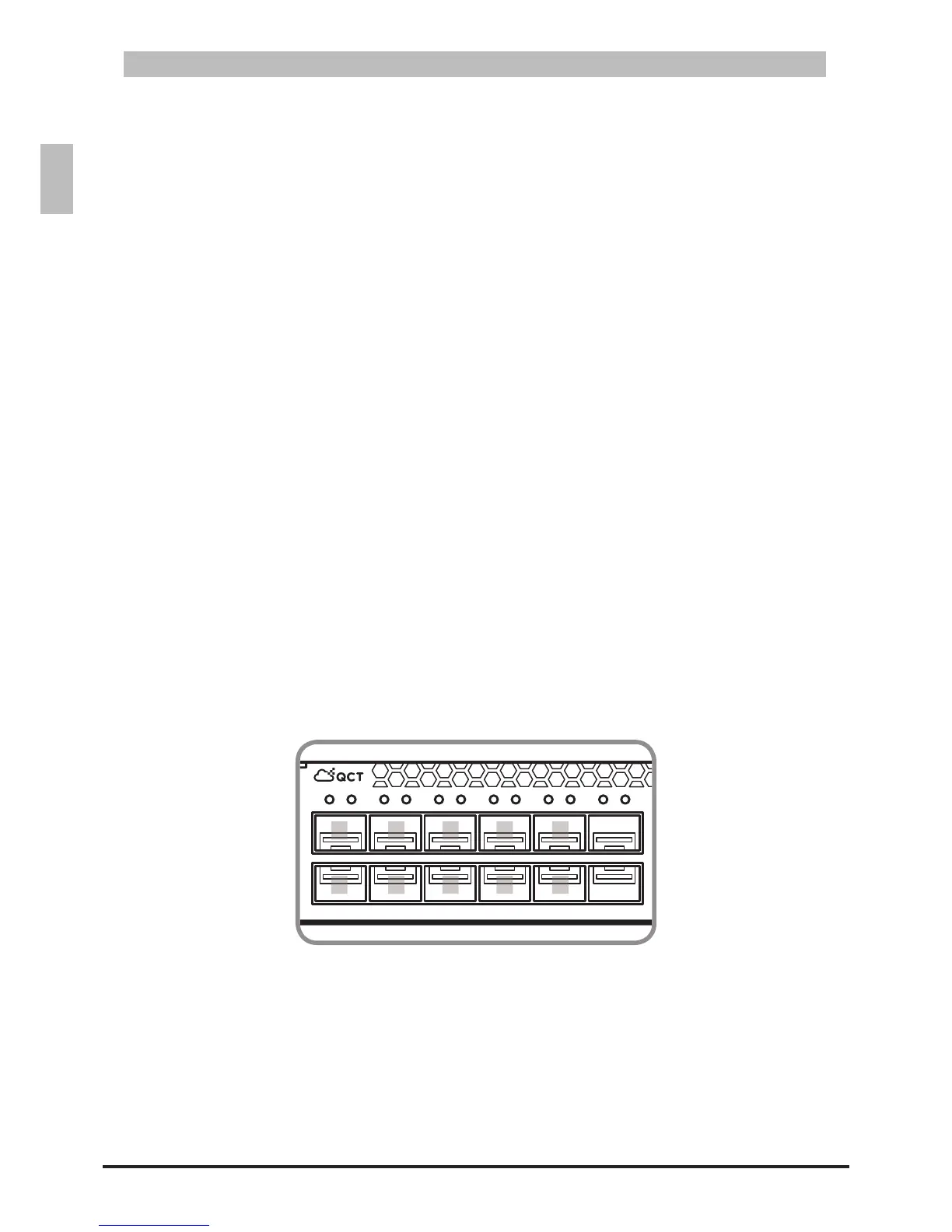

SFP+ Port NumberingFigure 3-6:
