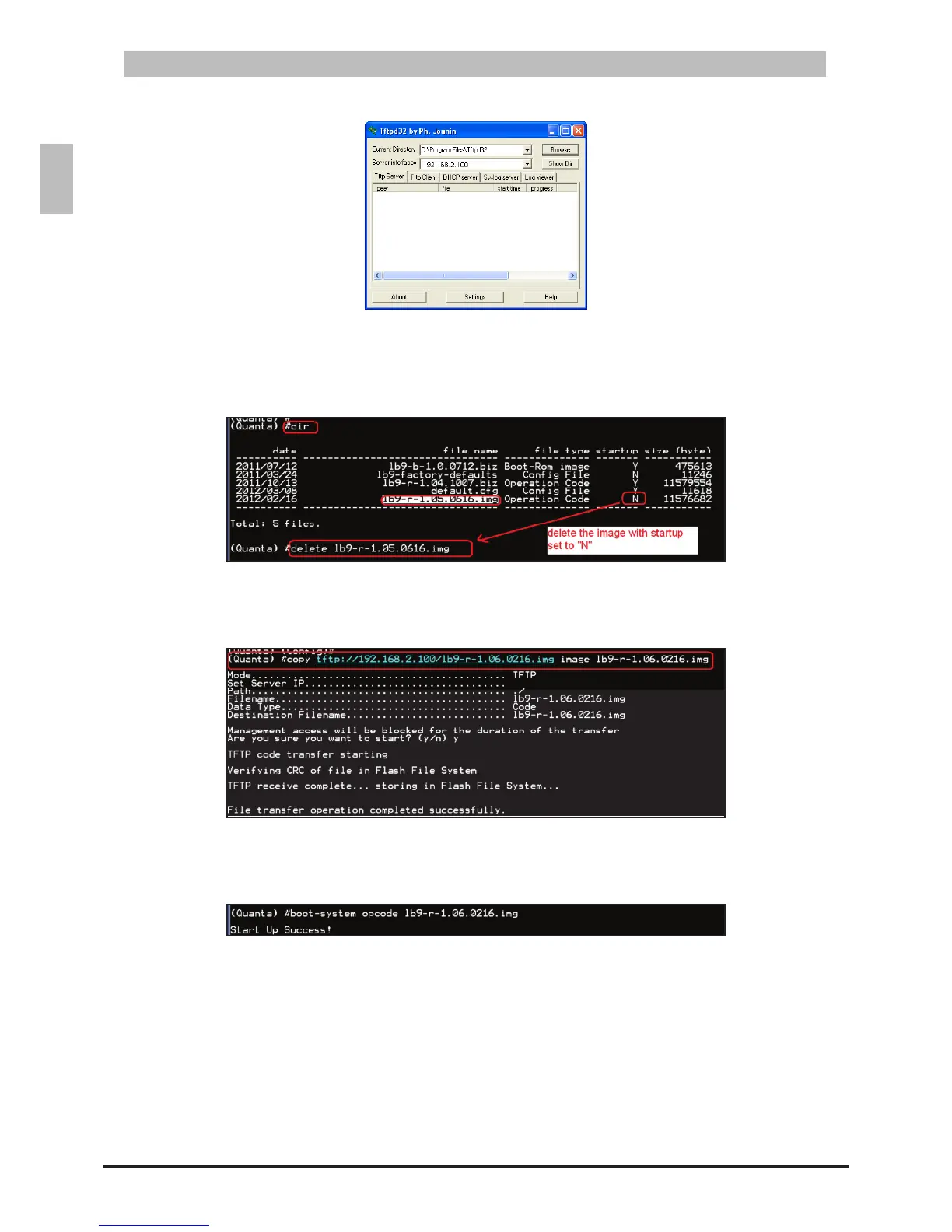

Example of TFTP Server ScreenFigure 4-8:
Theswitchsupportstwoimages.Thisistoensurethatifoneimagelefails,anotherbackup4.
isreadyforuse.Usethe“dir”commandtocheckiftheimagelesexist.Iftheswitchalready
contains 2 images, you need to remove one of the images and use the “delete <image name>”
command to delete the non-startup image.
Delete Image Screen SampleFigure 4-9:
Input the following command to update the image: 5.
“copy tftp://<server ip addr>/<le name> image <le name>”.
Update Image Screen SampleFigure 4-10:
10.0.10.5
Input the following command to set the new image as the “next boot” image: 6.
“boot-system opcode <le name>”.
Set Boot Image Success Screen SampleFigure 4-11:
Reboot the switch.7.
After the system boots up, input “show version” to display and verify the updated version.8.
