QUANTA QuantaMesh T3048-LY2R - Figure 4-14: Example of TFTP Server Screen; Figure 4-16: Copy Kernel Image Screen Sample

34
ENGLISH
Initial Conguration

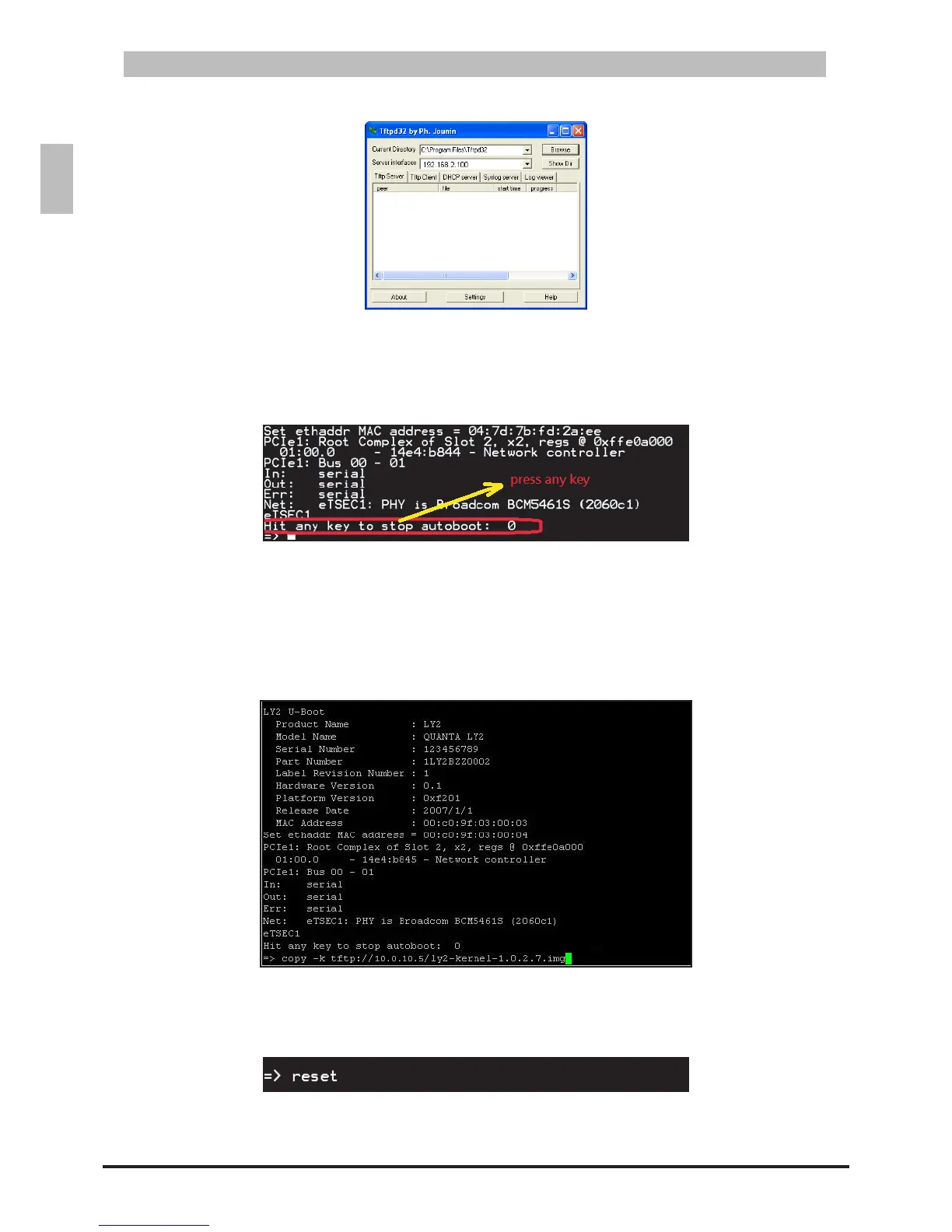

Example of TFTP Server ScreenFigure 4-14:
Reboot the switch. 4.
When the switch boots up, and the “5. Hit any key to stop autoboot” message is displayed, press
any key to stop autoboot.
Figure 4-15:
On the 6. “=>” prompt, use the following commands to download uboot, kernel, and rootfs image
les:
“copy -b tftp://<server ip addr>/<uboot lename>”
“copy -k tftp://<server ip addr>/<kernel lename>”
“copy -r tftp://<server ip addr>/<rootfs lename>”
Copy Kernel Image Screen SampleFigure 4-16:
Once complete, a “done” message appears and the command prompt 7. “=>” follows. Input “reset”
to reset the switch and boot to normal mode.
Figure 4-17:
