QUANTECH
32
SECTION 3 - RIGGING, HANDLING AND STORAGE
FORM QTC4-NM1
ISSUE DATE: 4/2/2018

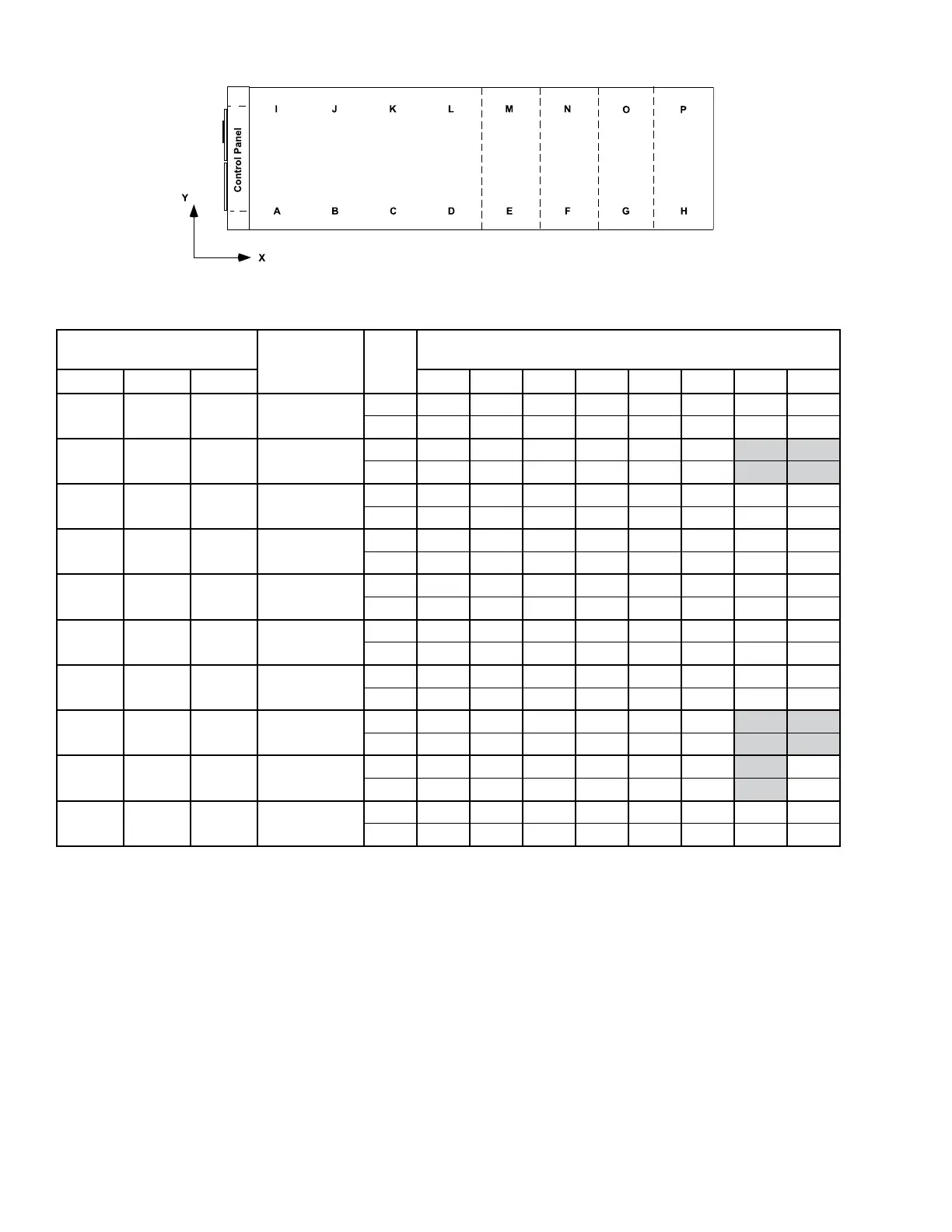

TABLE 1 - UNIT RIGGING (CONT'D)
LD18582
QTC4 MODEL
DESCRIPTION UNITS
RIGGING HOLES
MODEL COND EVAP A B C D E F G H
400 P J
Rigging Hole
Location
inches 12 73 181 238 302 435 478 545
mm 314 1845 4602 6039 7358 11059 12135 13835
405 S H
Rigging Hole
Location
inches 12 73 181 238 302 435
mm 314 1845 4601 6039 7662 11059
410 H H
Rigging Hole
Location
inches 12 73 181 238 302 435 478 545
mm 314 1845 4602 6039 7358 11059 12135 13835
410 P J
Rigging Hole
Location
inches 12 73 181 238 302 435 494 572
mm 314 1845 4602 6039 7358 11059 12546 14541
450 S G
Rigging Hole
Location
inches 12 73 181 238 290 435 478 545
mm 314 1845 4602 6039 7662 11059 12135 13835
490 H J
Rigging Hole
Location
inches 12 73 181 238 290 435 494 572
mm 314 1845 4602 6039 7358 11059 12546 14541
460 S G
Rigging Hole
Location
inches 12 73 181 238 290 435 494 572
mm 314 1845 4602 6039 7358 11059 12546 14529
470 C K
Rigging Hole
Location
inches 12 73 181 238 290 435
mm 305 1854 4597 6045 7366 11049
480 C J
Rigging Hole
Location
inches 12 73 181 238 290 435 572
mm 305 1854 4597 6045 7366 11049 14529
500 S J
Rigging Hole
Location
inches 12 73 181 238 290 435 494 572
mm 305 1854 4597 6045 7366 11049 12548 14529
NOTE: Rigging and lifting the unit must be done by a professional rigger safely, as discussed in this section. The rigger should locate the center
of gravity through trial lifts to account for possible variations in unit conguration. Contact your nearest Quantech Sales Ofce for weight data.
