Quantech QTC4 STYLE A Series User Manual

QUANTECH
26
SECTION 3 - RIGGING, HANDLING AND STORAGE
FORM QTC4-NM1
ISSUE DATE: 4/2/2018
LD18582

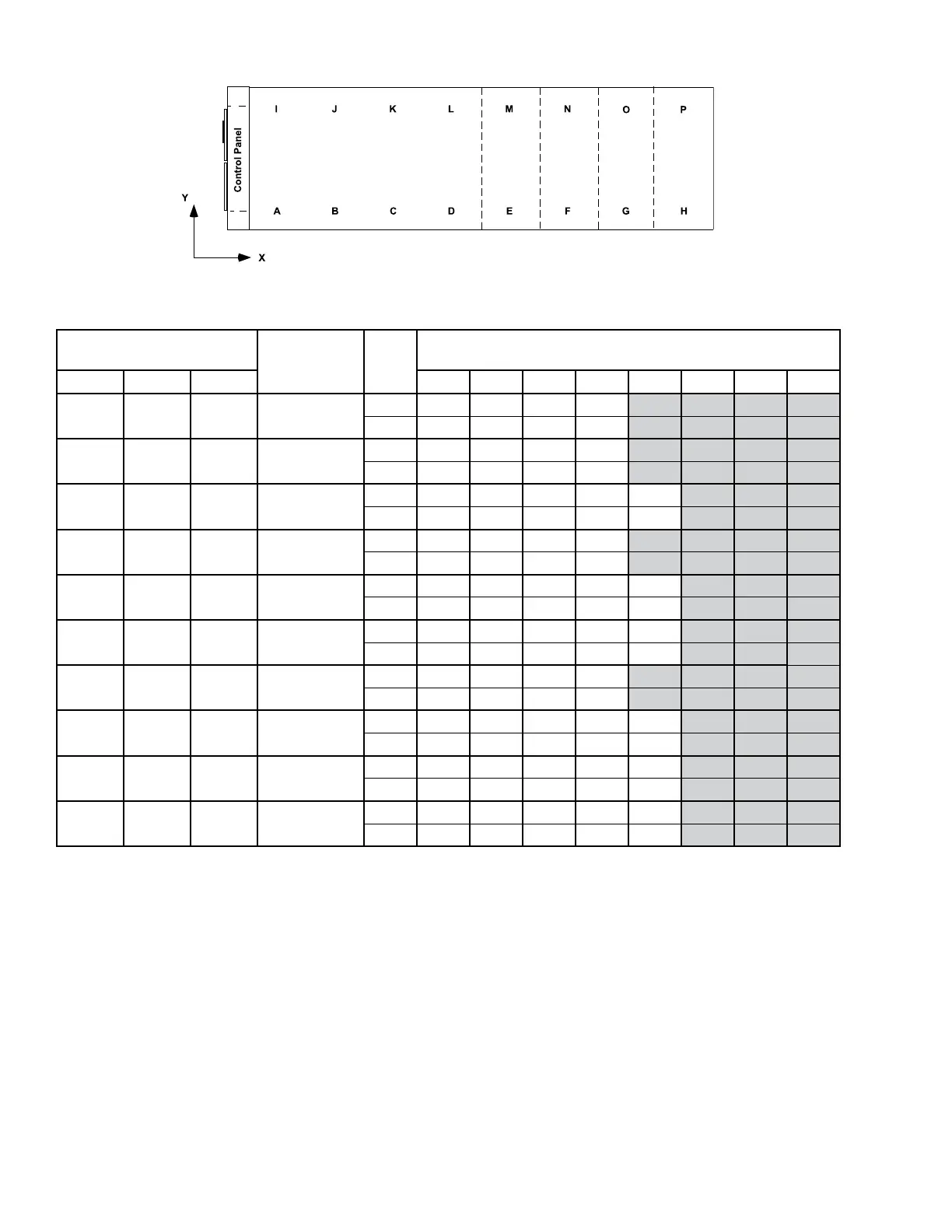

TABLE 1 - UNIT RIGGING
QTC4 MODEL
DESCRIPTION UNITS
RIGGING HOLES
MODEL COND EVAP A B C D E F G H
150 S B
Rigging Hole
Location
inches 18 60 116 192
mm 464 1512 2937 4866
165 H B
Rigging Hole
Location
inches 18 60 137 214
mm 464 1533 3482 5435
175 P C
Rigging Hole
Location
inches 12 73 144 197 260
mm 314 1845 3654 5012 6593
185 S A
Rigging Hole
Location
inches 18 60 143 220
mm 464 1533 3636 5598
185 H A
Rigging Hole
Location
inches 18 60 143 227 272
mm 464 1533 3636 5761 6920
185 P B
Rigging Hole
Location
inches 18 60 137 215 302
mm 464 1533 3484 5455 7670
175 C C
Rigging Hole
Location
inches 18 60 131 214
mm. 464 1518 3332 5430
210 S A
Rigging Hole
Location
inches 18 60 143 227 272
mm 464 1533 3637 5761 6920
210 H C
Rigging Hole
Location
inches 12 73 144 197 260
mm 314 1845 3654 5012 6593
210 P C
Rigging Hole
Location
inches 12 73 163 254 324
mm 314 1845 4144 6443 8218
NOTE: Rigging and lifting the unit must be done by a professional rigger safely, as discussed in this section. The rigger should locate the center
of gravity through trial lifts to account for possible variations in unit conguration. Contact your nearest Quantech Sales Ofce for weight data.
