SECTION 4 - INSTALLATION
FORM QTC4-NM1
ISSUE DATE: 4/2/2018

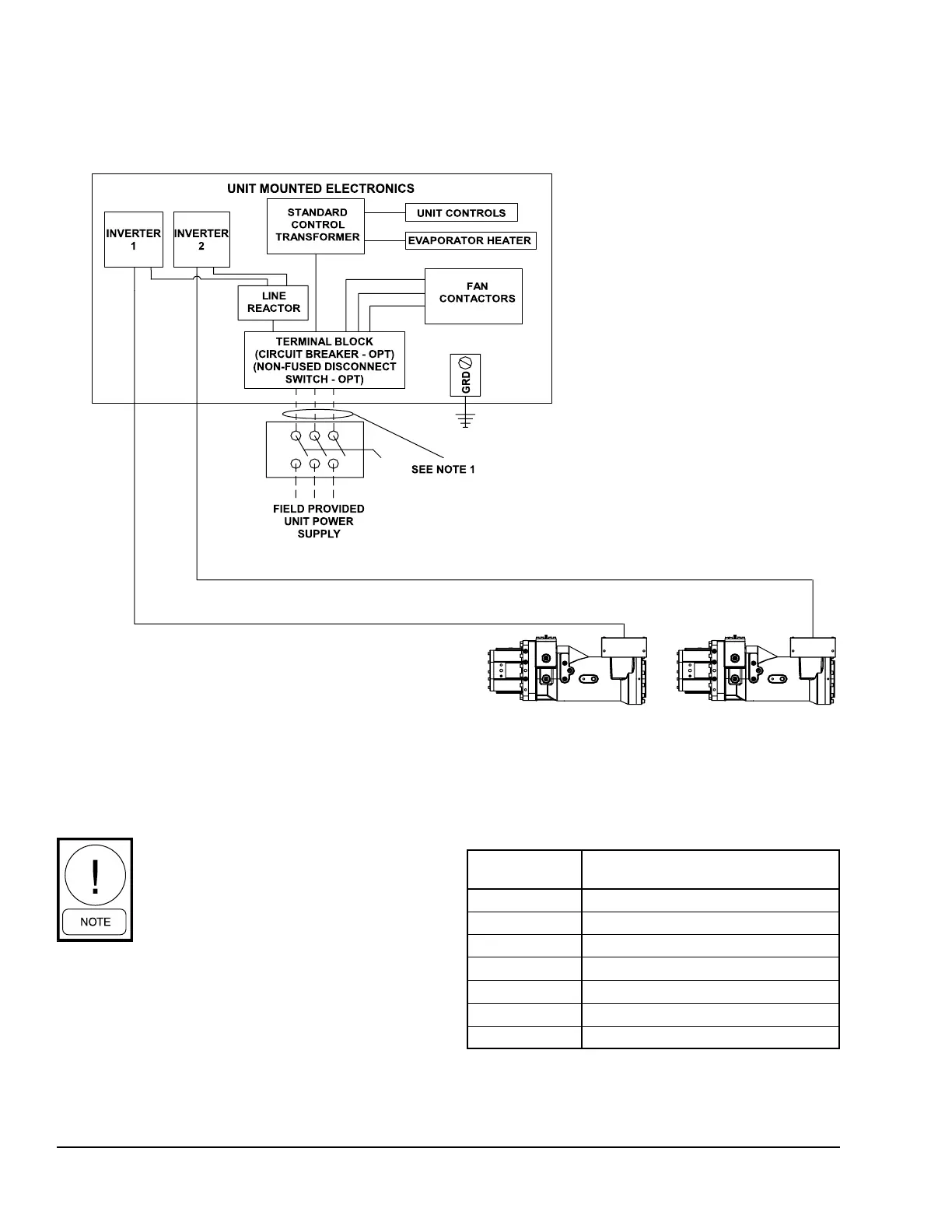

FIGURE 13 - SINGLE POINT POWER WIRING
Minimum Circuit Ampacity (MCA),
Minimum/Maximum Fuse Size and
Minimum/Maximum Circuit Breaker size
varies on chillers based upon model and
options ordered. Consult YorkWorks or
the chiller data plate for electrical data
on a specic chiller.
Voltage Utilization Range
RATED
VOLTAGE
UTILIZATION RANGE
200/60/3 180-220
230/60/3 208-254
380/60/3 342-402
400/60/3 360-440
460/60/3 414-508
575/60/3 520-635
400/50/3 360-440
LD18588
POWER SUPPLY WIRING
