SECTION 5 - TECHNICAL DATA
FORM QTC4-NM1
ISSUE DATE: 4/2/2018
The data below is applicable to select configurations.
Other configurations are available through our con-
figuration/selection software.

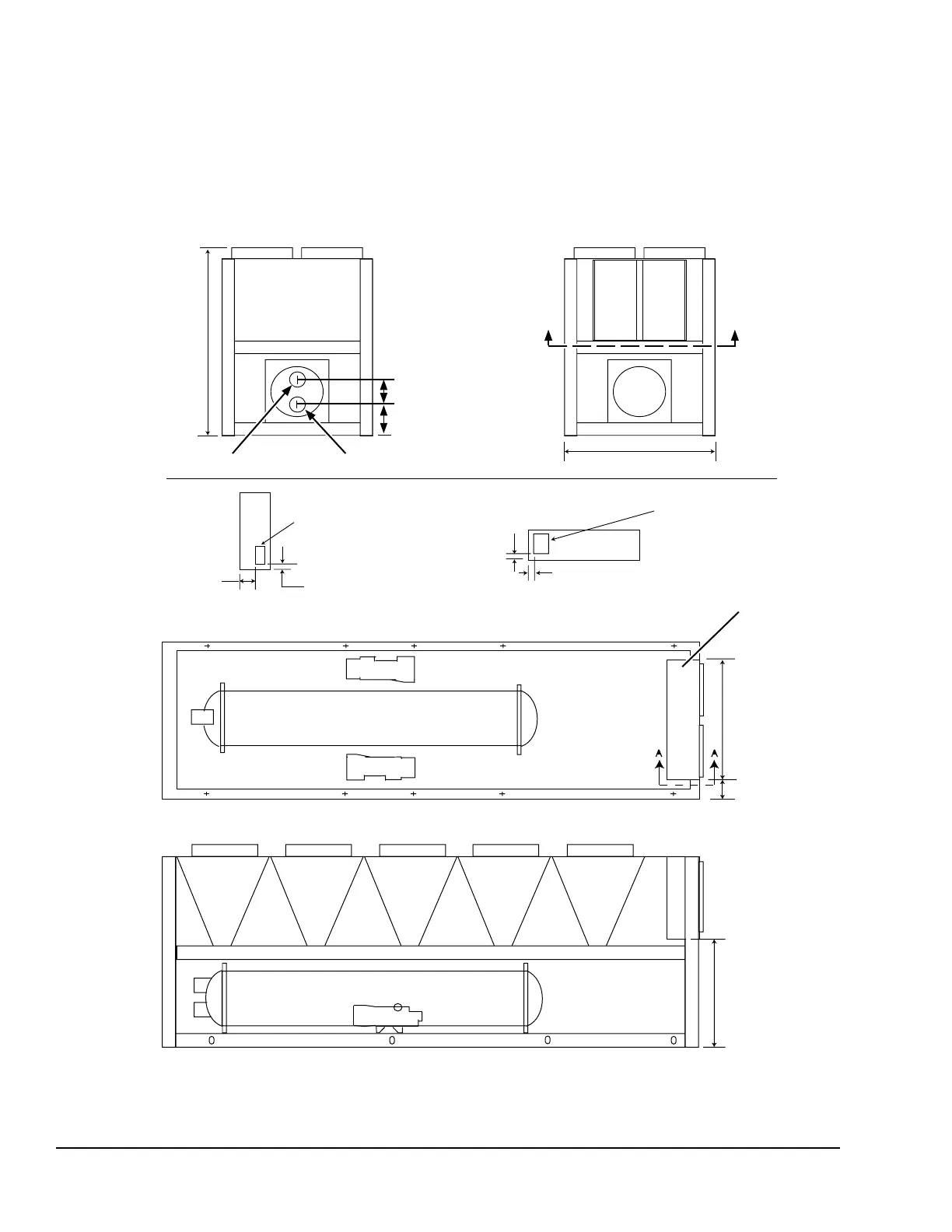

FIGURE 16 - QTC4 DIMENSIONS
A" PIPE WATER OUTLET
A" PIPE WATER INLET
C
B
POWER ENTRY
10" (254 mm) WIDE X
13" (330 mm) HIGH
VIEW B-B
VIEW A-A
CONTROL ENTRY
3.0" (76 mm) WIDE X
11.5" (292 mm) HIGH
LD16178
VSD / CONTROL PANEL
88.3" (2242 mm)
BB
94.6"
(2403 mm)
4.0"
(102 mm)
1.5"
(38 mm)
120"
(305 mm)
3.0"
(75 mm)
47.4"
(1204 mm)
60.0"
(1524 mm)
14.1"
(359 mm)
Please contact your nearest Quantech Sales Represen-
tative for the chiller configuration that best matches
your specific needs.

Quantech QTC4 STYLE A Series Specifications

General

Brand	Quantech
Model	QTC4 STYLE A Series
Category	Chiller
Language	English
