SECTION 5 - TECHNICAL DATA
QUANTECH
89
FORM QTC4-NM1
ISSUE DATE: 4/2/2018
5

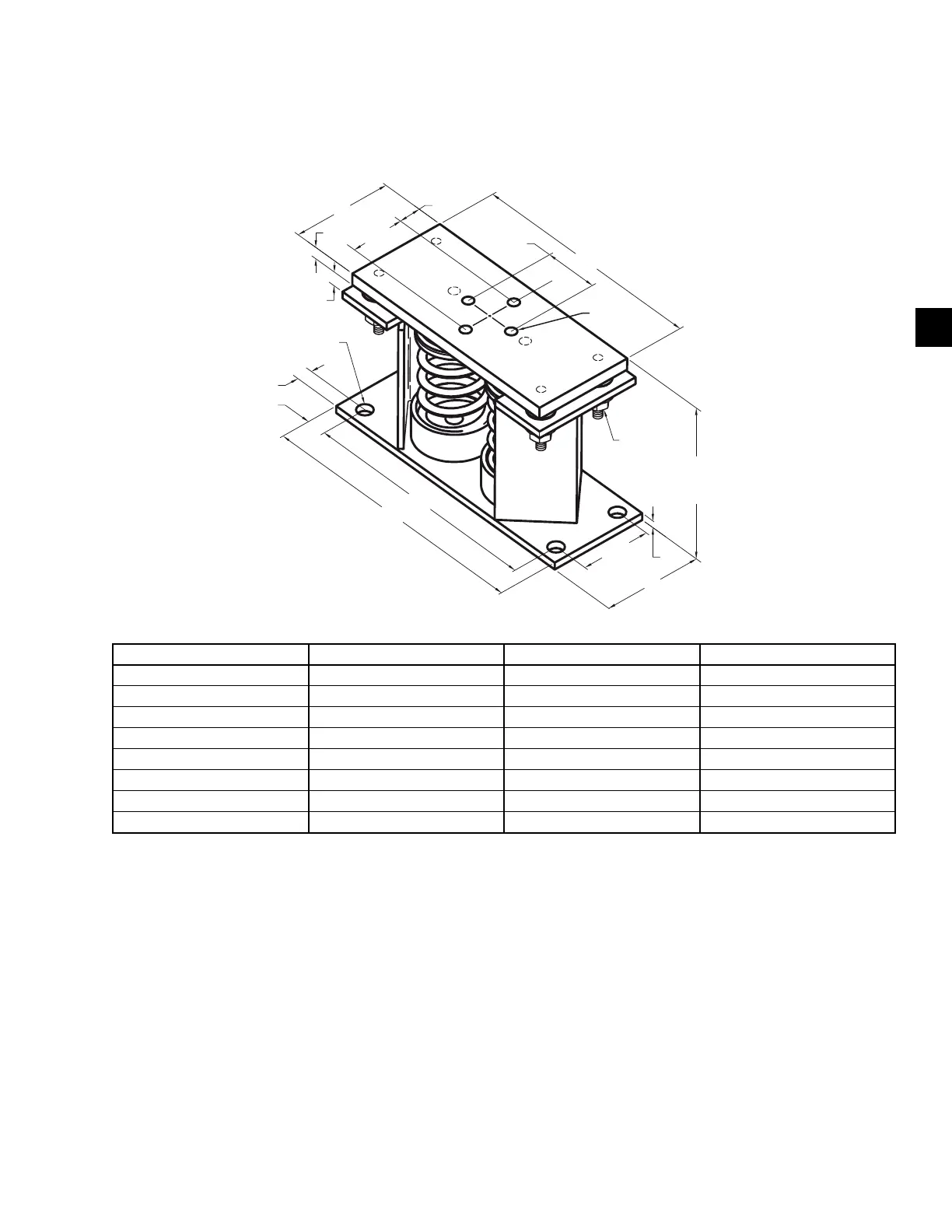

TWO INCH DEFLECTION, RESTRAINED SPRING ISOLATOR SPECIFICATIONS
12"
5"
2-3/4"
12-1/4"
8-3/8"
OPER.
HEIGHT
14"
5/8"
3/8"
Ø3/4"
TYP.(4)
3-1/2"
5/8-11UNC
TYP. (4)
2-3/4"
3/4"
7/8"
1-1/8"
3/8" GAP
5"
1/2" LIMIT
STOP &
NUT
NOTES:
1. All dimensions are in inches, interpret as per ANSI Y14
2. Equipment must be bolted or welded to the top plate to meet allowable seismic ratings.
3. All springs are designed for 50% overload capacity with exception of the 029-25336-013 and 029-25336-014.
4. Contact your nearest Quantech Sales Representative for concrete installation.
Y2RS
MODEL NUMBER WEIGHT RANGE (LBS) WEIGHT RANGE (KGS) QUANTECH P/N
Y2RSI-2D-460 Up thru 391 UP TO 177 029-25336-006
Y2RSI-2D-710 392 thru 604 178 - 274 029-25336-008
Y2RSI-2D-870 605 thru 740 275 - 336 029-25336-009
Y2RSI-2D-1200N 741 thru 1020 337 - 463 029-25336-010
Y2RSI-2D-1690 1021 thru 1437 464 - 652 029-25336-011
Y2RSI-2D-2640N 1438 thru 2244 653 - 1018 029-25336-012
Y2RSI-2D-2870N 2245 thru 2618 1019 - 1188 029-25336-013
Y2RSI-2D-3280N 2619 thru 3740 1189 - 1696 029-25336-014
