QUANTECH
86
SECTION 5 - TECHNICAL DATA
FORM QTC4-NM1
ISSUE DATE: 4/2/2018

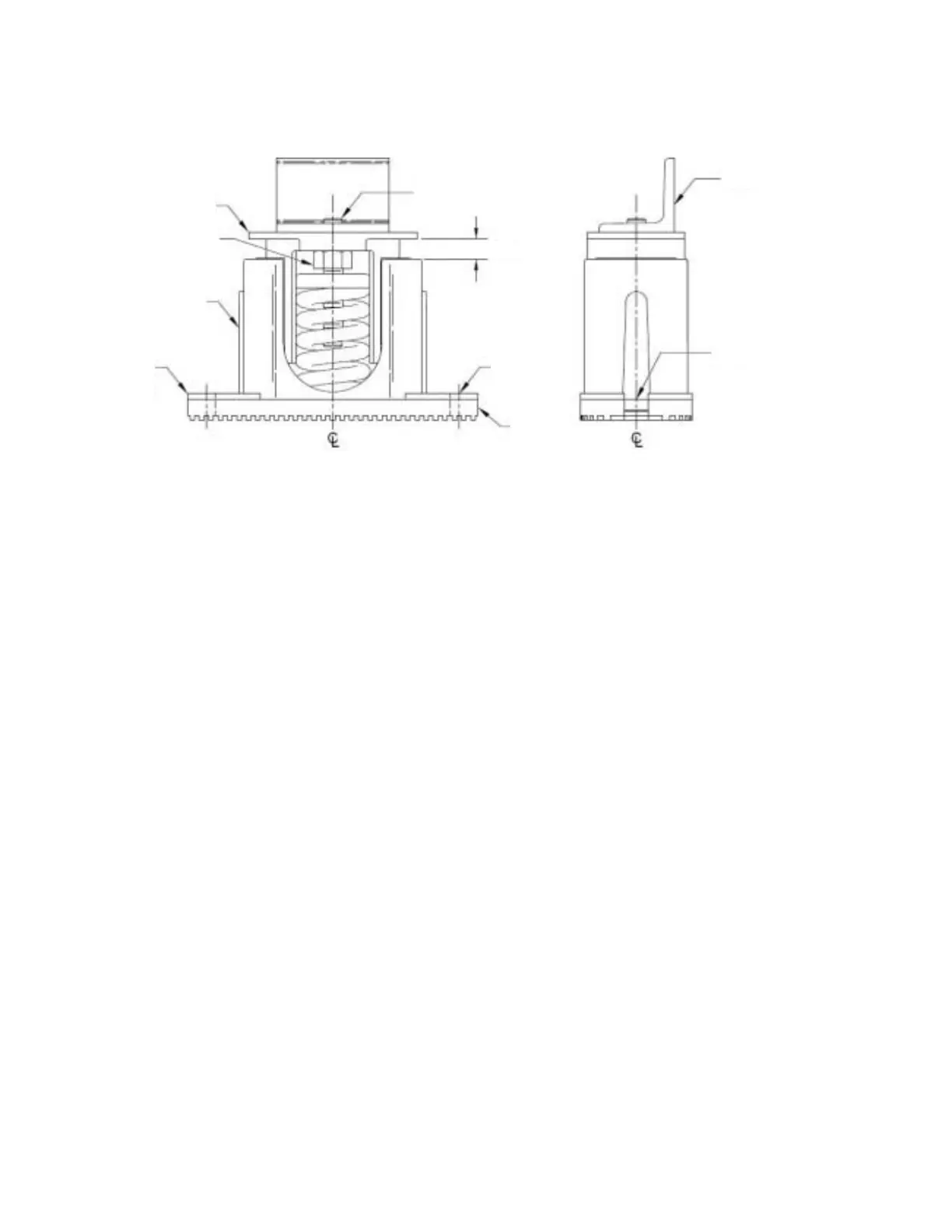

ONE INCH DEFLECTION ISOLATOR INSTALLATION
UPPER
HOUSING
(D)
LOWER
HOUSING
NON-SKID
ELASTOMERIC
PA D
POSITIONING
PIN (H)
0.25” min - 0.5” max
(C)
(C)
(B)
EQUIPMENT
BASE
Read the following instructions before beginning
installation.
1. Isolators are shipped fully assembled and are to be
positioned in accordance with the submittal draw-
ings or as otherwise recommended.
2. Set isolators on oor, housekeeping pad or sub-
base, ensuring that all isolators centerlines
match the equipment mounting holes. The VMC
group recommends that the isolator base (“B”)
be installed on a level surface. Shim or grout as
required, leveling all isolator bases to the same
elevation (0.25-inch maximum difference can be
tolerated).
3. Bolt or anchor all isolators to supporting structure
utilizing base slotted holes (“C”).
4. Place equipment on top of isolators making sure
that mounting holes of the equipment line up with
isolator positioning pin (“H”).
5. Equipment or machine is at its full operating
weight.
6. Adjust each isolator in sequence by turning
spring adjusting bolt (“D”) one full counterclock-
wise turn at a time. Repeat this procedure on all
isolators, one at a time.
7. Continue adjusting each isolator until a minimum
of 0.25” clearance is achieved between the low-
er housing and upper housing. (See illustration
above).
8. Fine adjust isolators to level equipment.
