SECTION 5 - TECHNICAL DATA
FORM QTC4-NM1
ISSUE DATE: 4/2/2018
LD18587

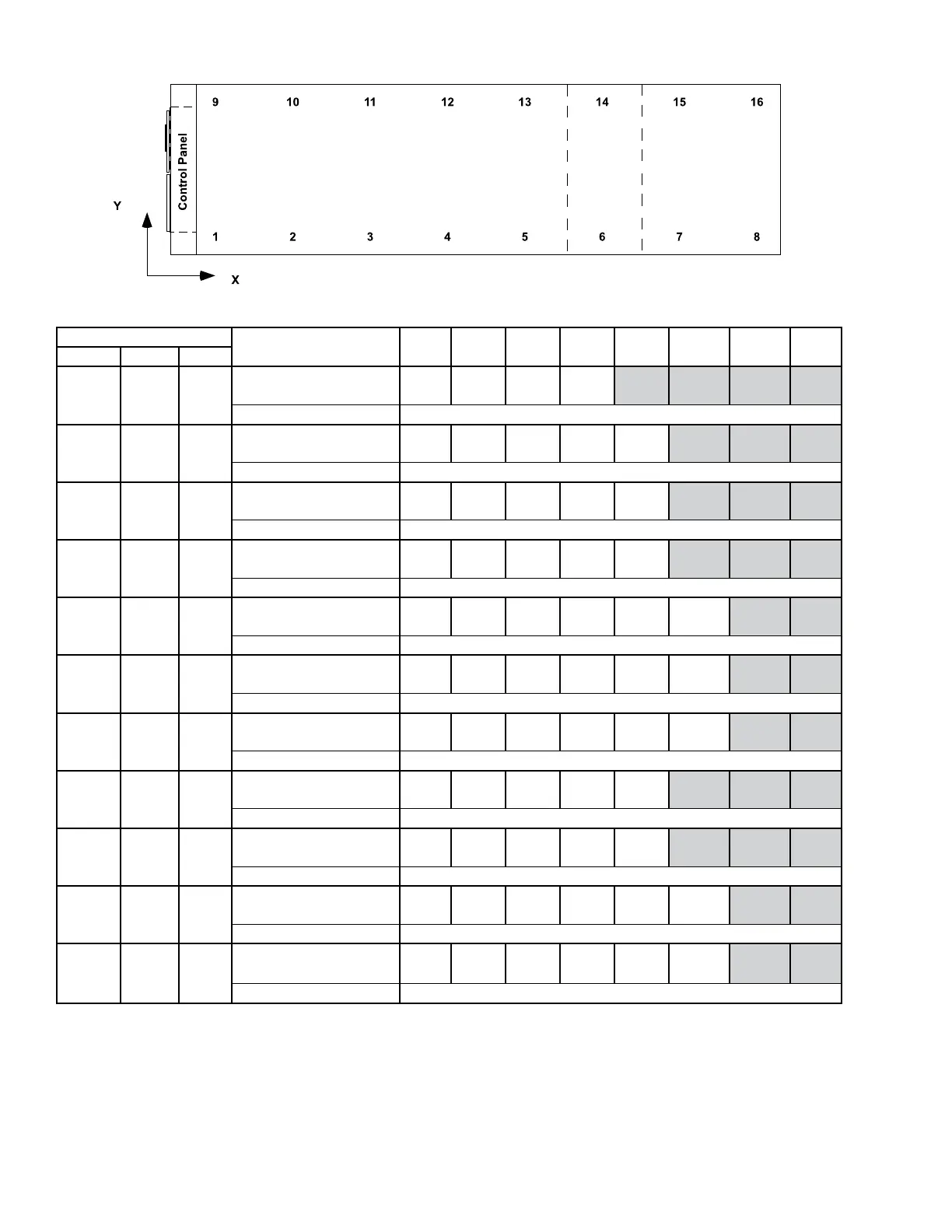

TABLE 10 - ISOLATOR SELECTION AND MOUNTING LOCATIONS
QTC4 CONFIGURATION
DESCRIPTION 1 2 3 4 5 6 7 8
MODEL COND EVAP
150 S B
Isolator X-Dimension
10
(263)
73
(1852)
144
(3662)
193
(4900)
Isolator Y-Dimension 1 (34)
165 H B
Isolator X-Dimension
10
(263)
77
(1943)
118
(3000)
157
(3985)
220
(5589)
Isolator Y-Dimension 1 (34)
175 P C
Isolator X-Dimension
10
(263)
81
(2057)
149
(3779)
187
(4756)
251
(6368)
Isolator Y-Dimension 1 (34)
185 S A
Isolator X-Dimension
10
(263)
76
(1943)
124
(3152)
163
(4137)
210
(5323)
Isolator Y-Dimension 1 (34)
185 H A
Isolator X-Dimension
10
(259)
76
(1939)
118
(2997)
157
(3982)
208
(5295)
281
(7132)
Isolator Y-Dimension 1 (34)
185 P B
Isolator X-Dimension
10
(263)
76
(1943)
118
(3000)
157
(3985)
209
(5299)
308
(7823)
Isolator Y-Dimension 1 (34)
175 C C
Isolator X-Dimension
10
(263)
76
(1943)
118
(3000)
157
(3985)
209
(5299)
281
(7136)
Isolator Y-Dimension 1 (34)
210 S A
Isolator X-Dimension
10
(263)
81
(2057)
149
(3779)
187
(4756)
251
(6368)
Isolator Y-Dimension 1 (34)
210 H C
Isolator X-Dimension
10
(263)
81
(2057)
149
(3779)
187
(4756)
251
(6368)
Isolator Y-Dimension 1 (34)
210 P C
Isolator X-Dimension
10
(263)
81
(2057)
149
(3779)
187
(4756)
235
(5968)
301
(7653)
Isolator Y-Dimension 1 (34)
230 S B
Isolator X-Dimension
10
(263)
76
(1943)
118
(2999)
157
(3984)
209
(5298)
281
(7135)
Isolator Y-Dimension 1 (34)
NOTES:
1. Contact your nearest Quantech Sales Representative for weight data.
2. All isolator mounting holes are 19mm.
3. Dimensions are in inches (mm).
