Section
1
General
Description
and Specifications
1.2.1

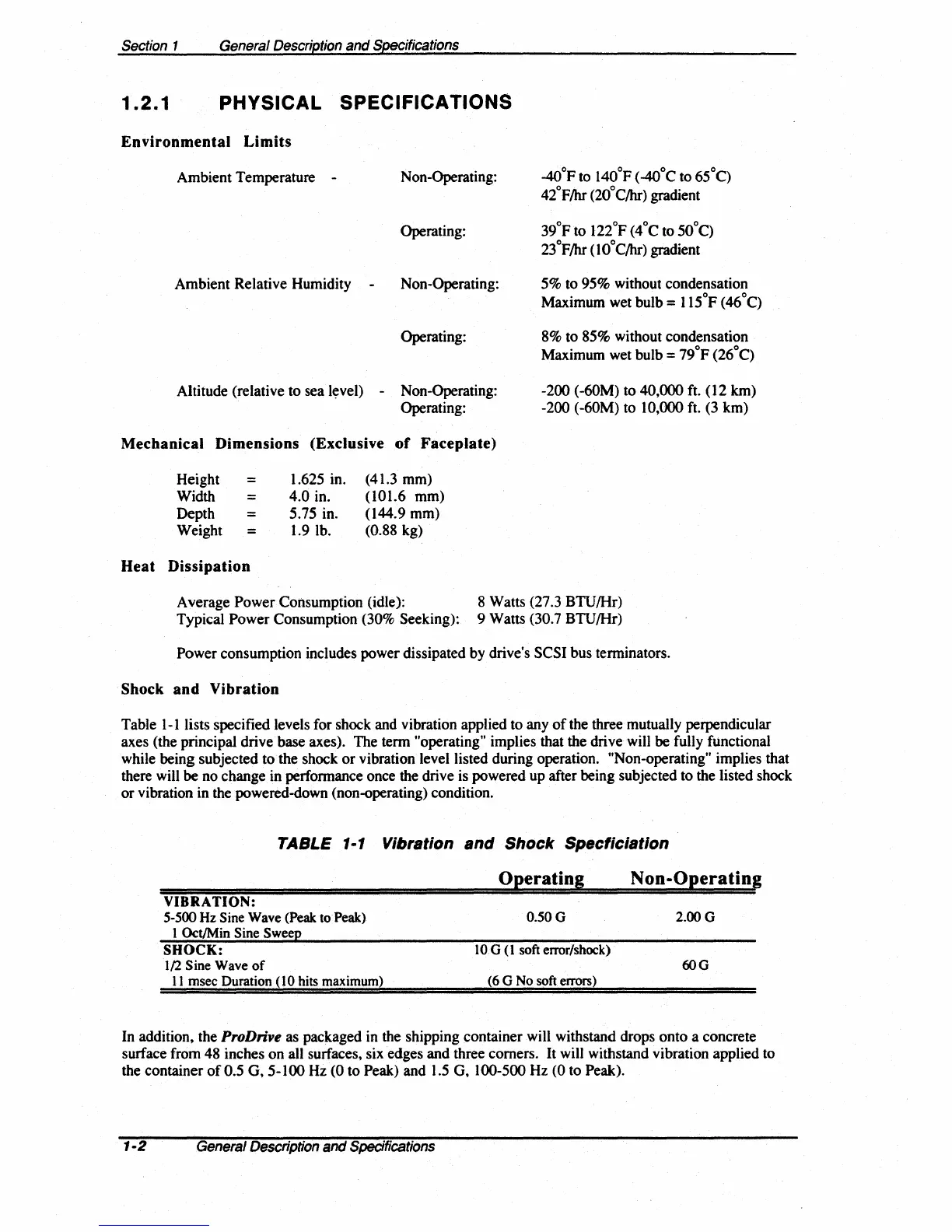

PHYSICAL SPECIFICATIONS
Environmental
Limits
Ambient Temperature -
Non-Operating:
-40°F to 140°F (-40°C to 65°C)
42°F/hr (20°C/hr) gradient
Operating:
39°F to 122°F (4°C to 50°C)
23°F/hr (IO°C/hr) gradient
Ambient Relative Humidity Non-Operating:
5% to 95% without condensation
Maximum wet bulb
= 115°F (46°C)
Operating:
8% to 85% without condensation
Maximum wet bulb
= 79°F (26°C)
Altitude (relative to sea
l~vel)
- Non-Operating:
-200 (-60M) to 40,000 ft. (12
km)
Operating:
-200 (-60M) to 10,000 ft. (3 km)
Mechanical Dimensions (Exclusive
of
Faceplate)
Height
=
Width
=
Depth
=
Weight
=
Heat Dissipation
1.625 in.
4.0 in.
5.75 in.
1.9 lb.
(41.3 mm)
(101.6 mm)
(144.9 mm)
(0.88 kg)
Average
Power Consumption (idle):
Typical
Power Consumption (30% Seeking):
8 Watts (27.3 BTUlHr)
9 Watts (30.7 BTUlHr)
Power consumption includes power dissipated by drive's SCSI bus terminators.
Shock
and
Vibration
Table
I-I
lists specified levels for shock and vibration applied to any
of
the three mutually perpendicular
axes (the principal drive base axes). The term "operating" implies that the drive will be fully functional
while being subjected to the shock or vibration level listed during operation. "Non-operating" implies that
there will be no change in performance once the drive is powered up after being subjected to the listed shock
or vibration in the powered-down (non-operating) condition.
TABLE 1·1 Vibration
and
Shock Specficiation
VIBRATION:
5-500 Hz Sine Wave (Peak to Peak)
1 Oct/Min
Sine Sweep
SHOCK:
1/2 Sine Wave
of
11
msec Duration ( 1 0 hits maximum)
Operating
Non-Operating
O.50G
2.00G
lOG
(1
soft error/shock)
60G
(6 G No soft errors)
In addition, the ProDrive as packaged in the shipping container will withstand drops onto a concrete
surface from 48 inches on all surfaces, six edges and three comers. It will withstand vibration applied to
the container
of
0.5 G, 5-100 Hz (0 to Peak) and
1.5
G, 100-500 Hz (0 to Peak).
1·2
General Description and Specifications
