SECTION 3
PRINCIPLES OF OPERAtiON
3.1 ProDrive 40S/80S DRIVE MECHANISM
The drive mechanism consists of the mechanical subassemblies which are sealed under a metal cover.
These subassemblies are not adjustable nor are they field repairable. Please refer to
Figure 3-1.

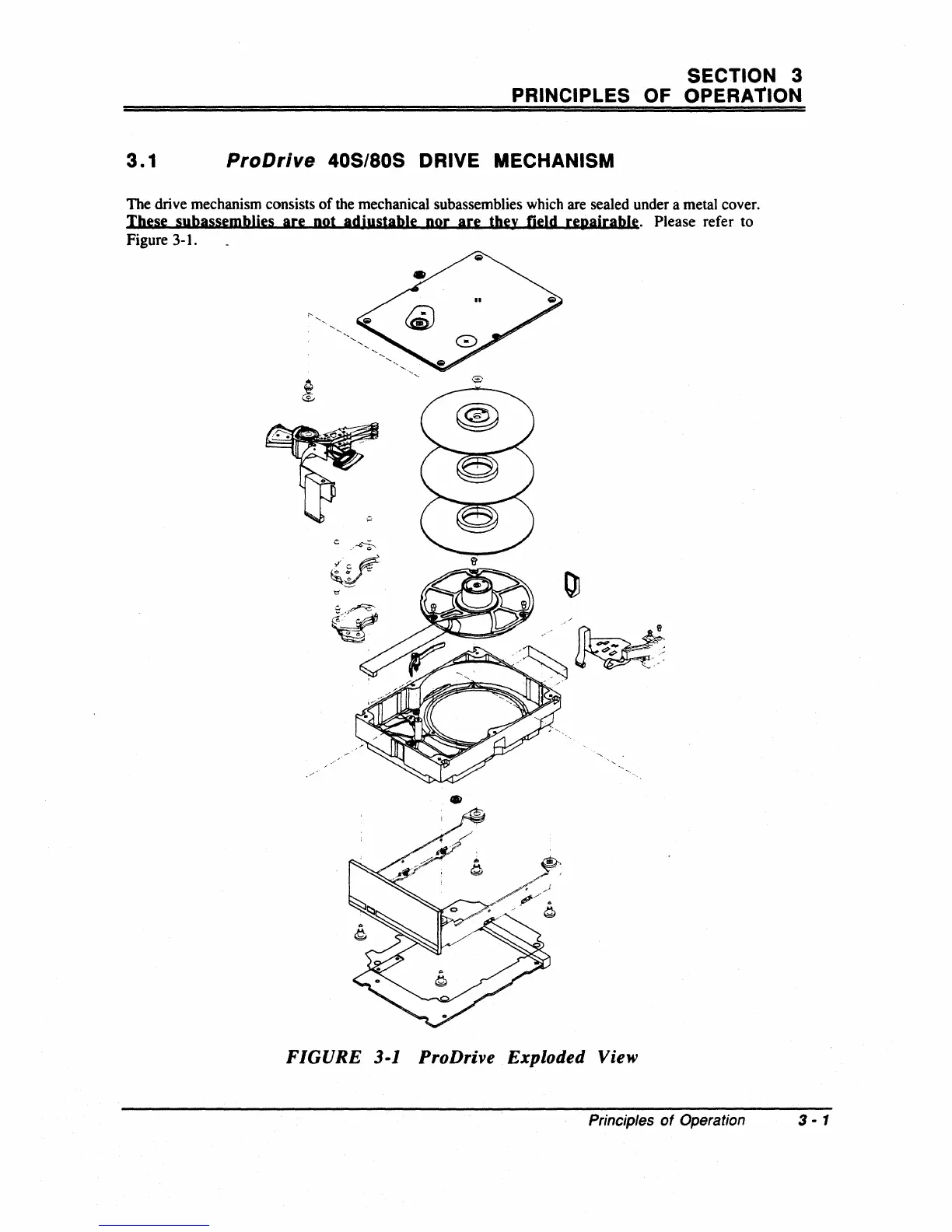

FIGURE 3·1 ProDrive Exploded View
PrinCiples of Operation 3 • 1
