UNPACKAGING INSTRUCTIONS
a) Open the shipping container.
b) Lift shipping container material and remove drive.

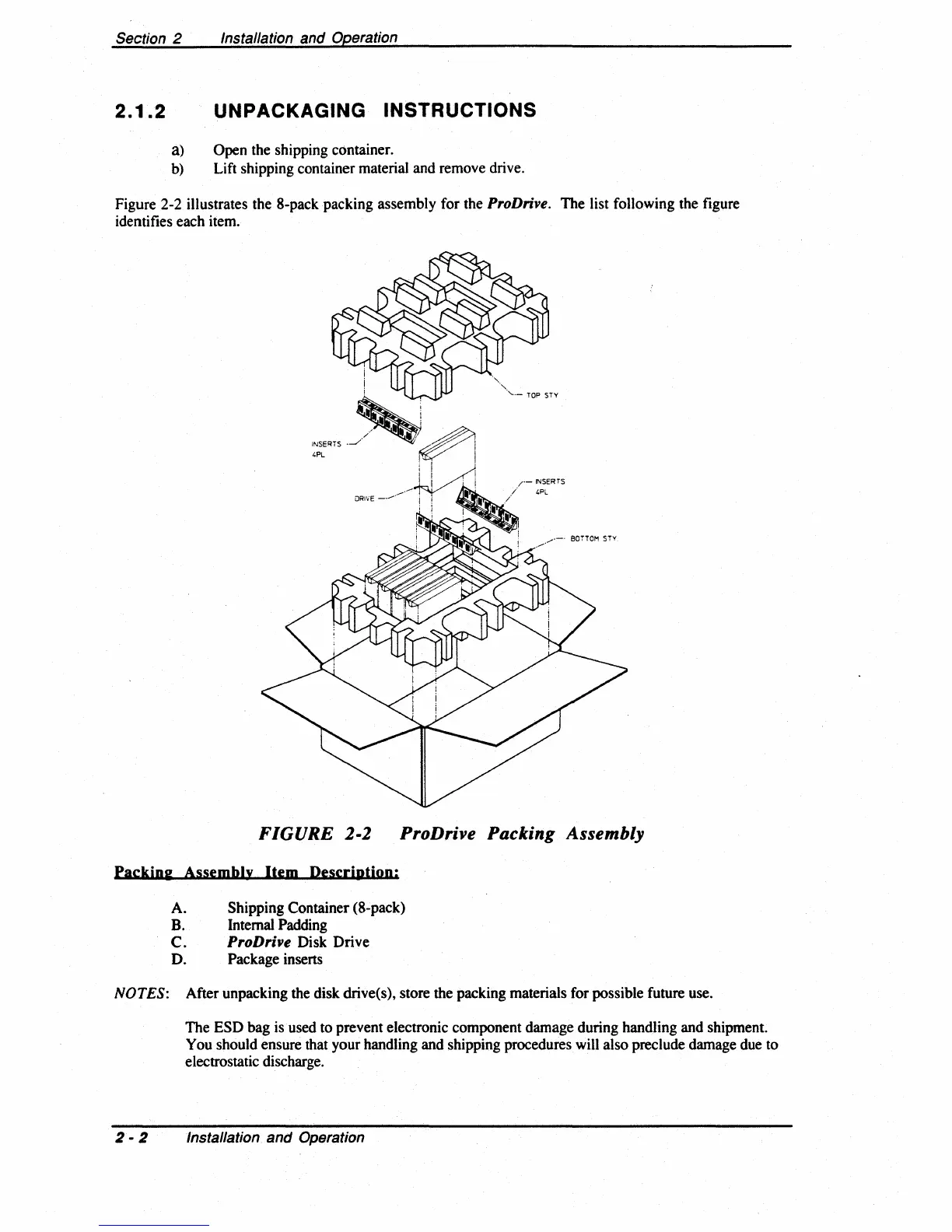

Figure 2-2 illustrates the 8-pack packing assembly for the
ProDrive. The list following the figure
identifies each item.
/"- INSERTS
/ 4PL
./
./.
/_. BOTTOM STY
FIGURE 2·2
ProDrive Packing Assembly
PackinK Assembly Item Descrjptjon:
A. Shipping Container (8-pack)
B. Internal Padding
C. ProDrive Disk Drive
D.
Package inserts
NOTES: After unpacking the disk drive(s), store the packing materials for possible future use.
The
ESD bag is used to prevent electronic component damage during handling and shipment.
You should ensure that your handling and shipping procedures will also preclude damage due to
electrostatic discharge.
