Quantum ProDrive 40S - SECTION 2 - INSTALLATION AND OPERATION; 2.1 INSTALLATION

To Next Page

To Previous Page

2.1

2.1.1

INSTALLATION

SECTION 2

INSTALLATION

AND OPERATION

SPACE REQUIREMENTS

The ProDrive disk drives are shipped with a faceplate installed and shock mounts mounted directly to the

base casting. Figure

2-1

shows the external dimensions

the drives.

104.2

438

All dimensions in millimeters

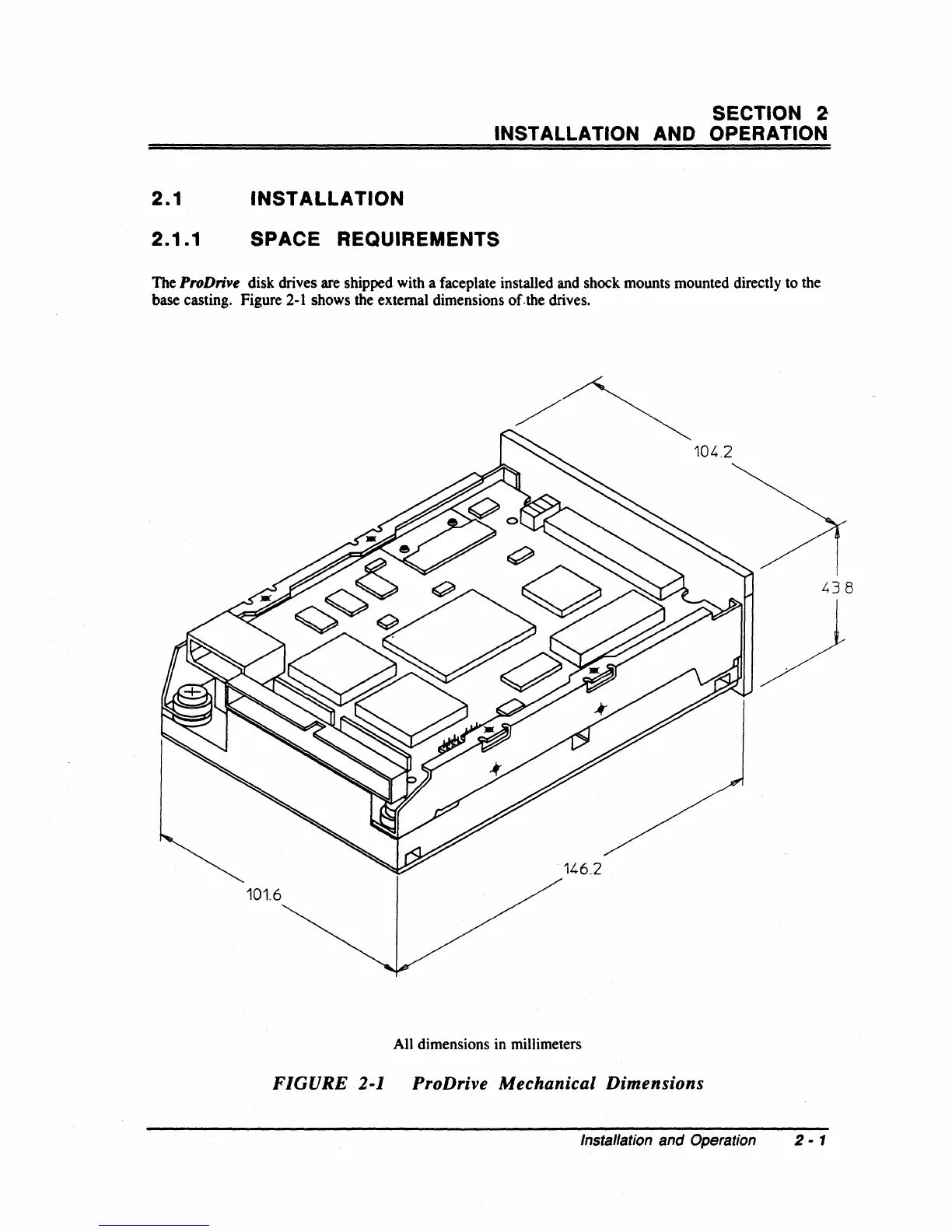

FIGURE 2-1 ProDrive Mechanical Dimensions

Installation and Operation 2 - 1
