Section 2
Installation and Operation
2.4
OPERATION
2.4.1
GENERAL
PROCEDURES
Configuration
of
a ProDrive disk drive varies depending on the system
in
which it is to be installed.
This section describes the user-selectable hardware options that should be set prior to installation. Figure
2-7 identifies the location
of
shorting plugs and terminators on the Printed Circuit Board which control
these options. In addition to the optional hardware configurations described below,
ProDrive operation
can also be affected by many optional features controlled by individual
SCSI commands. See Section 5 for
information about the
SCSI commands.
J2
DC
CONNECTOR
BACK
OF
DRIVE
SCSI
TERMINATORS
MICROPROCE
SSOR
o
JUMPERS
SCSI
CONNECTOR
(1)
FACTORY TEST
CONNECTOR
EPROM
FACE
PLATE
SIDE

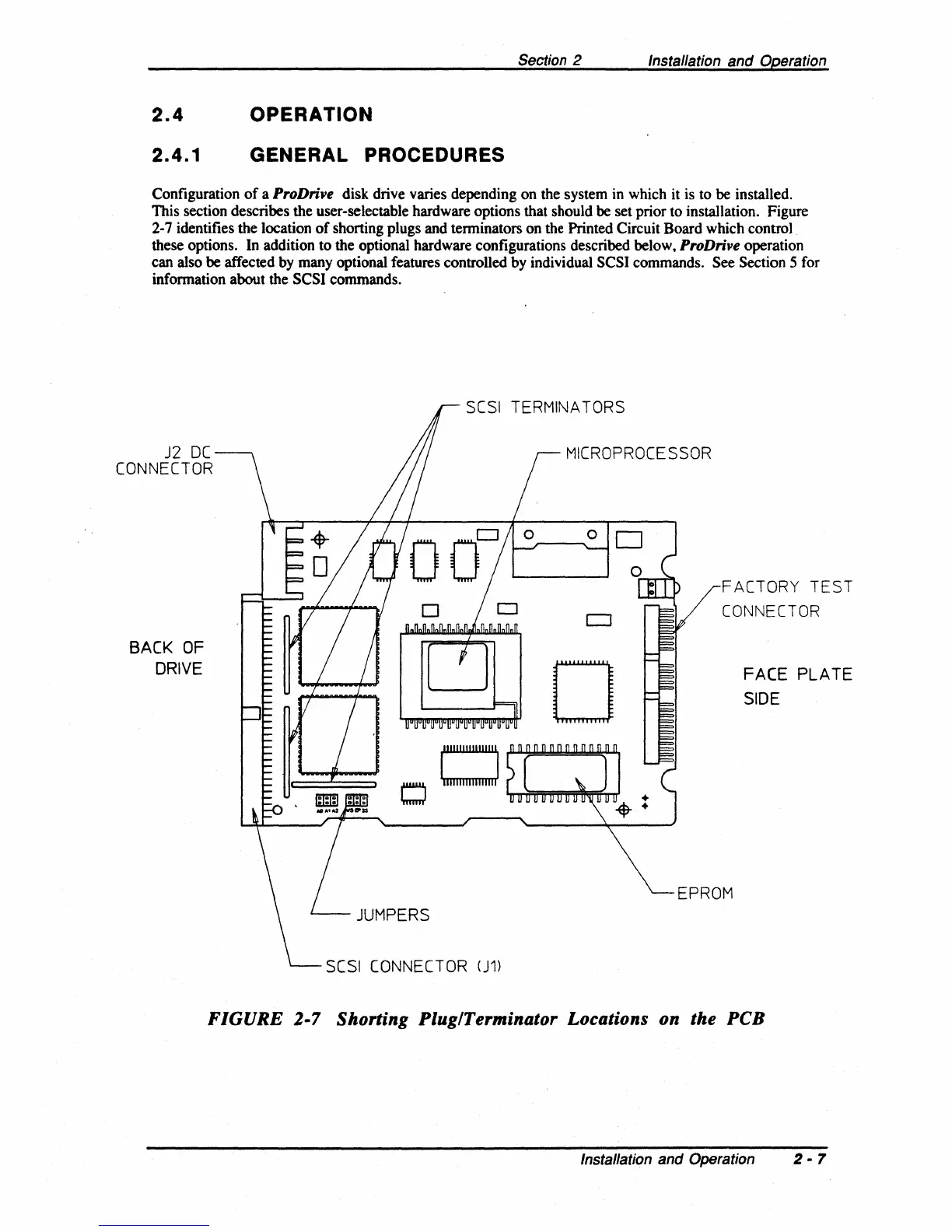

FIGURE 2-7 Shorting Plug/Terminator Locations on the PCB
Installation and Operation 2 - 7
