qubev smart EVON0090 - Schematic Diagrams

Installation
Intelligent Electric Vehicle Chargepoints QUBEVSM-V01-R0 Installation and Operation Manual
Page 13 of 42 February 2023
Schematic Diagrams

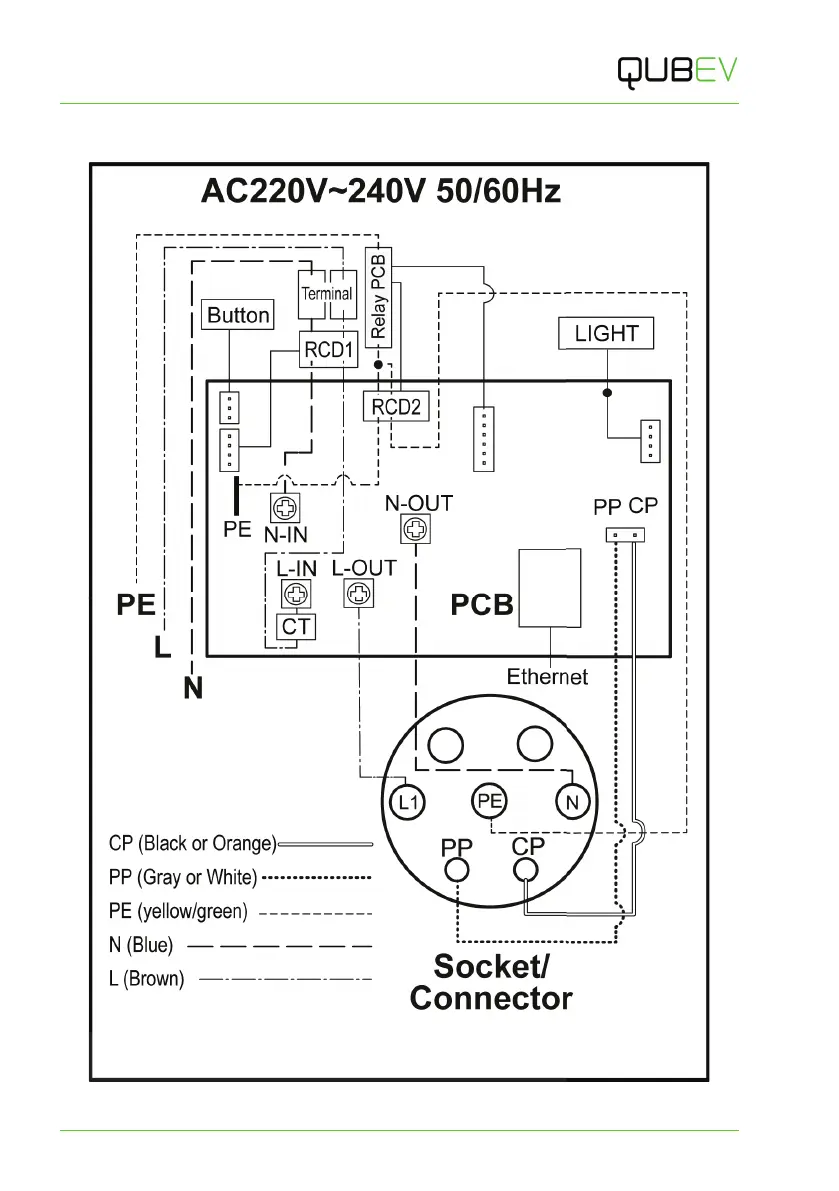

Figure 6 EVON0090 -1-Phase, Version Schematic Diagram
EARTH IN
ACCORDANCE
WITH CURRENT
REGULATIONS
