Installation
QUBEVSM-V01-R0 Installation and Operation Manual Intelligent Electric Vehicle Chargepoints
February 2023 Page 22 of 42
Install Cable Tidy/Hanger
1. The charging cable on tethered
chargers is permanently attached to
the unit and must be stored correctly
to help ensure long and trouble-free
service.
2. Identify a mounting location that is
close to the charger and that will
support the weight of the cable.
3. User the hanger as a template to mark
the 4x fixing points on the mounting
location at an accessible height.
4. If required, drill the marked fixing
points, and insert wall plugs into the
holes.
5. Secure the hanger to the mounting
location with the screws provided or
with screws that are suited to the
location

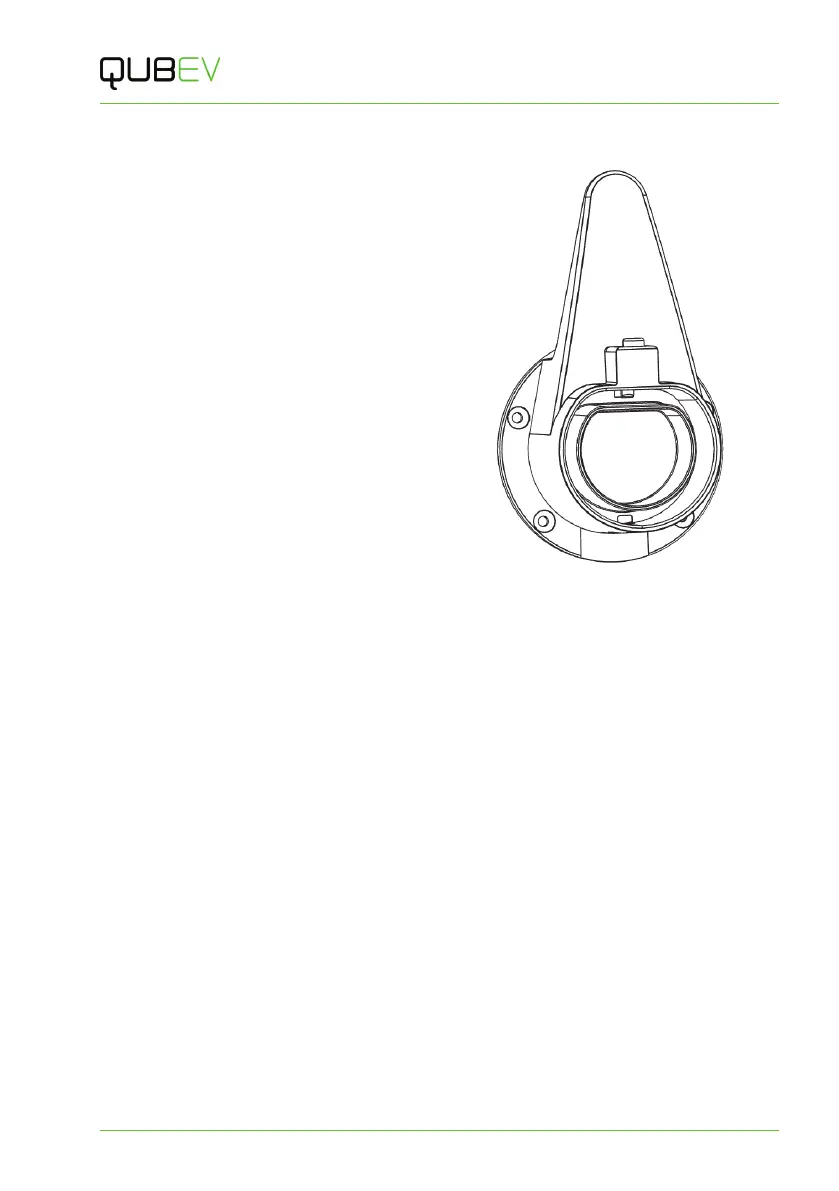

Figure 16 Cable Tidy/Hanger (Holster)
6. To remove the plug from the dummy socket, press the button and pull the plug away
from the dummy socket at the same time.
