QubicaAMF TMS Tenpin String Pinspotter User Manual

TMS STRING PINSPOTTER OWNER’S MANUAL
400-051-010-01 Rev. Date: 6/17 Page 5-56

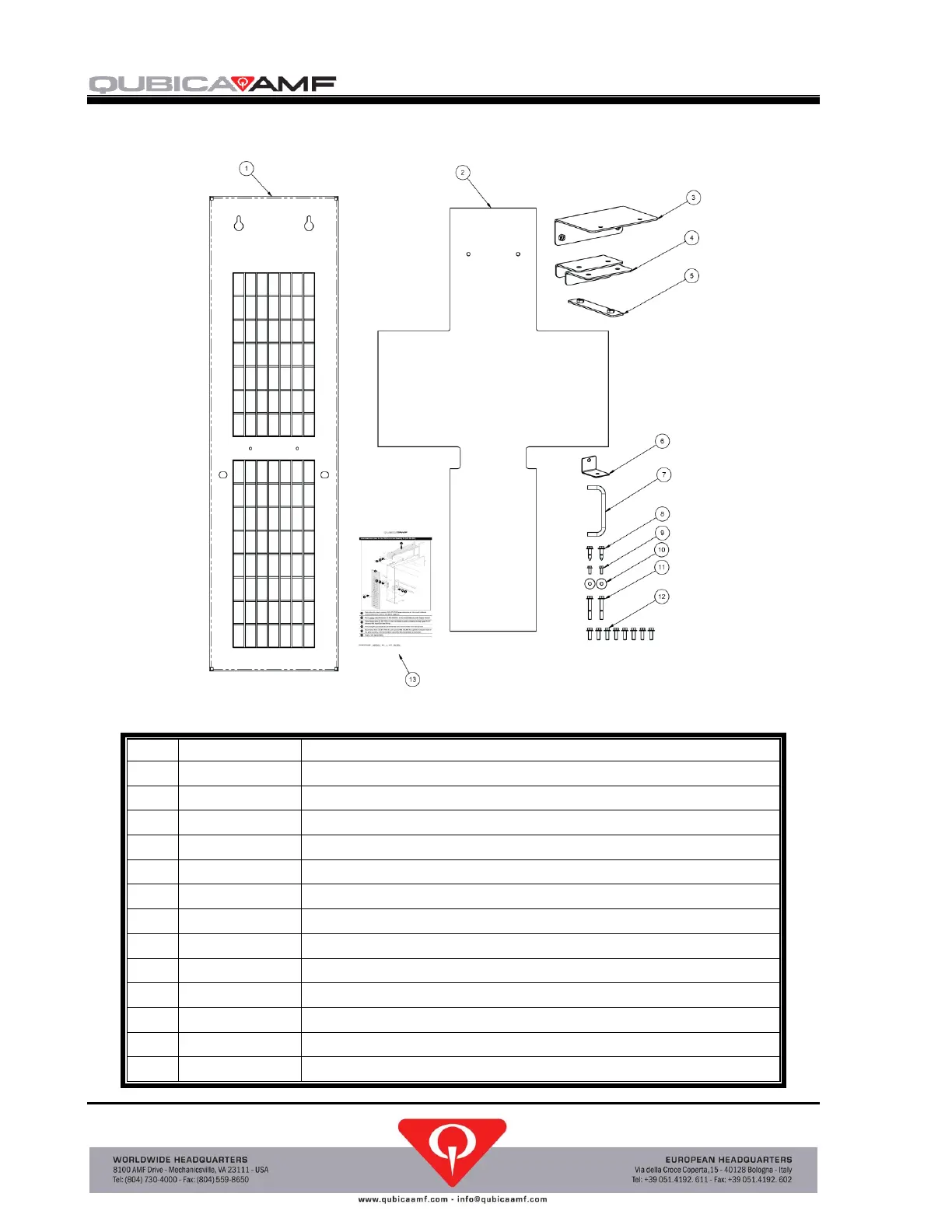

610-051-003 – TMS Accelerator Guard Kit
610-051-003 – TMS Accelerator Guard Kit
Item
Part Number
Description
1
051-020-032
ACCELERATOR GUARD GATE WELDMENT
2
051-070-086
ACCELERATOR WALKBOARD
3
051-020-030
ACCELERATOR GUARD GATE SUPPORT WELDMENT
4
051-020-035
ACCELERATOR GUARD GATE BRACKET WELDMENT
5
051-070-097
WALKBOARD NUT PLATE ASSEMBLY
6
088-200-313
MASK GUARD ANGLE BRACKET
7
088-501-144
HANDLE
8
859-048-167
FBLS 1/4 X 1.00 ZN
9
818-740-082
HWMS 10-32 X 0.50 ZN
10
000-026-865
FW 0.25 X 0.88 X 0.06 ZN
11
801-749-281
FBCS 1/4-20 X 1.75 GR8 BO
12
801-749-121
FBCS 1/4-20 X 0.75 GR8 BO
13
400-051-014
ACCELERATOR GUARD INSTALLATION SHEET
