Cardiac Stress Treadmills Service Manual Troubleshooting 3-7

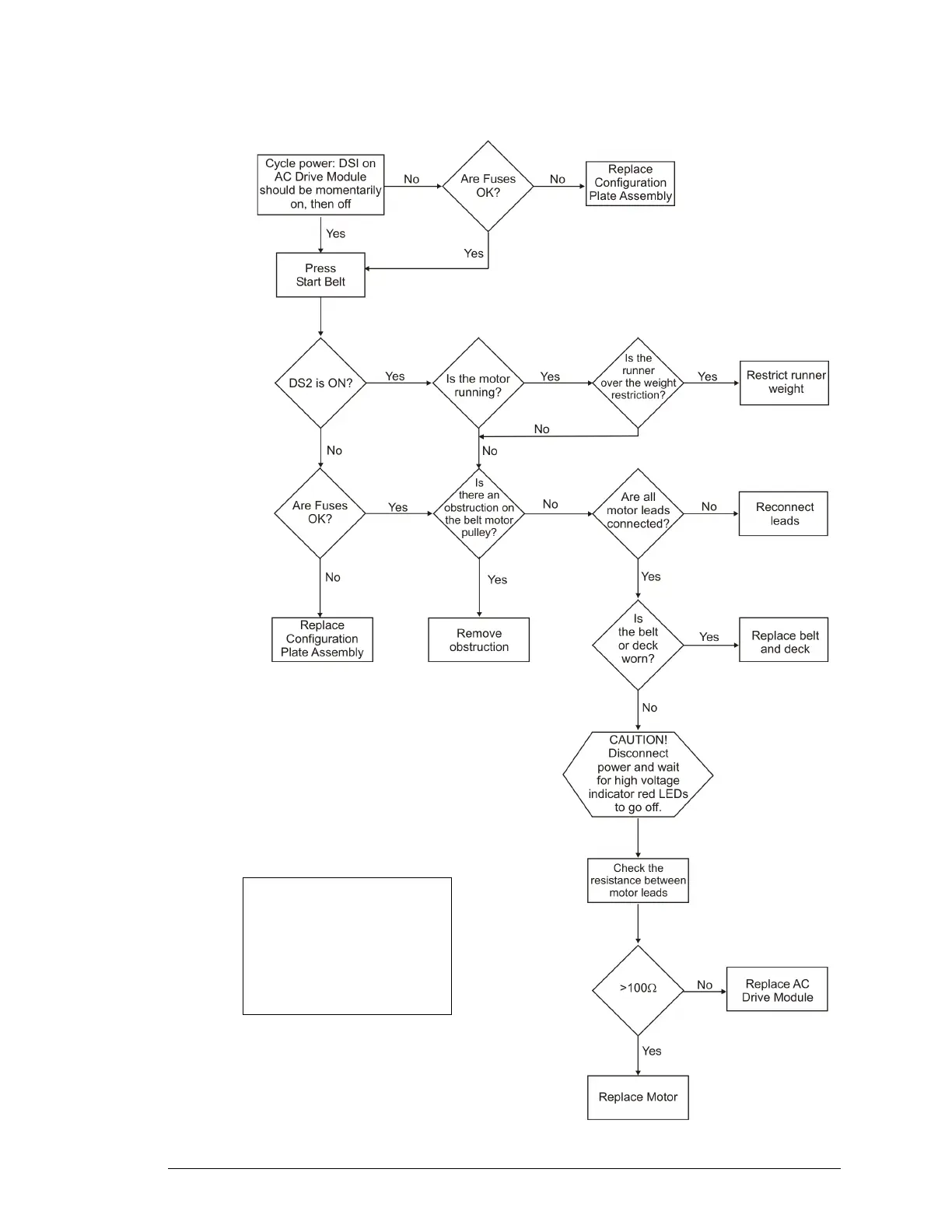

Drive Motor Flow Chart
Error Code Flow Chart: E203
Troubleshooting chart for all
drive motor related error
codes and failures. (Source
power and power to drive
board on the AC Drive Module
established).
To Next Page
