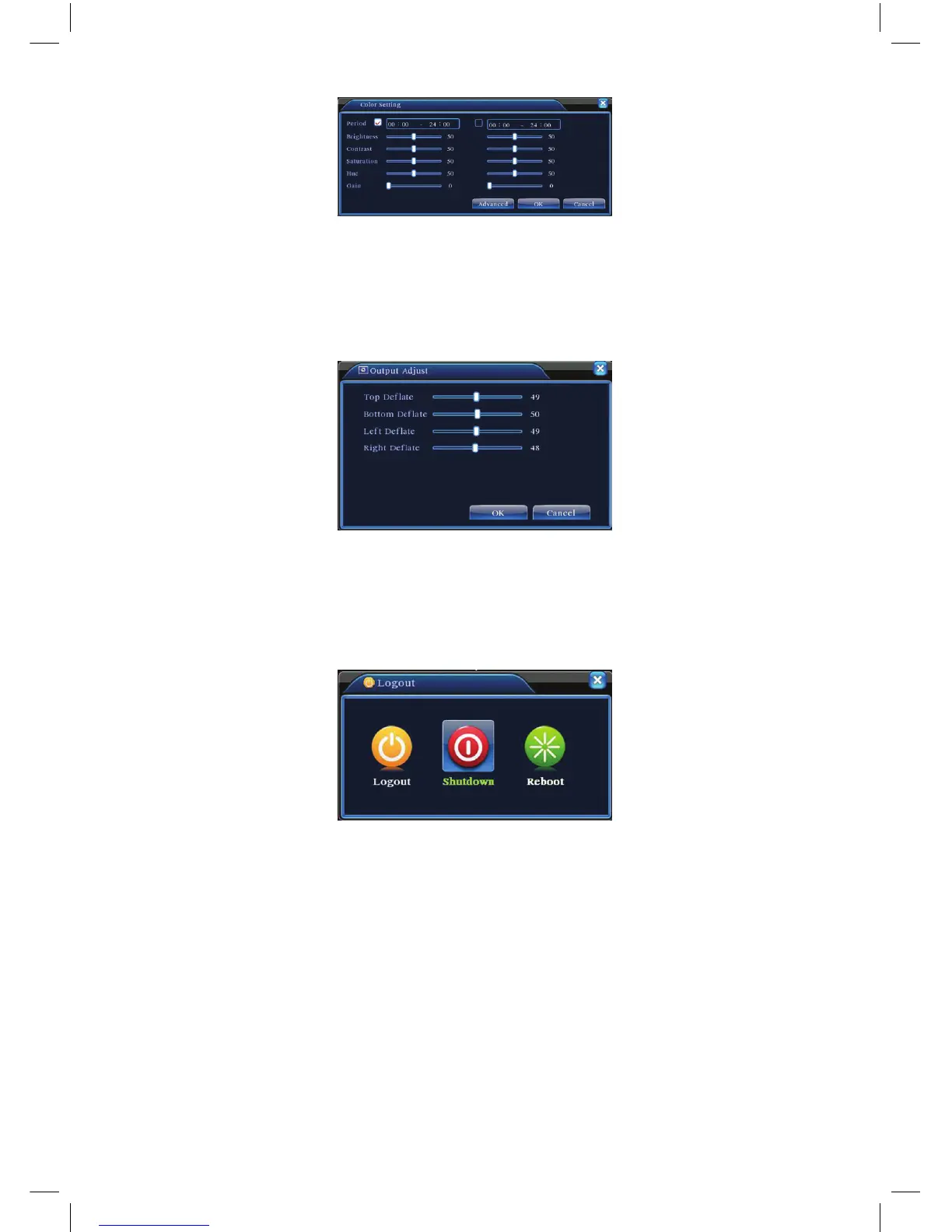

Picture 3.18 Color Setting
3.5.7 Output Adjust
Adjust TV output area parameters. You can use the desktop shortcut menu or
enter [main menu]> [management tools]> [Output adjust].
Picture 3.19 Output Adjust
3.5.8 Logout
Tologout,shutdownthesystemorrebootthesystem.Youcanusethedesktop
shortcut menu or enter [main menu].
Picture 3.20 Logout/Reboot the system
(Logout) Quit the menu. Use to switch user.
(Shut down) Quit the system. Turns off the power supply. When you press the
shutdownbutton,thereisschedulehint.Afterthreeseconds,thesystemshuts
down. This cannot be cancelled once the shut down button is pressed.
(Reboot) Quit or Reboot the system.
3.5.9 Window switch
Preview in asingle window/fourwindows/eight windows/ninewindows/sixteen
windows according to your choice.
