Qvis DVR series User Manual

30
4.3 Alarm Function
Alarmfunctionsinclude:motiondetect,videoblind,videoloss,alarminputand
alarm output.
4.3.1 Motion Detect
Whenthesystemdetectsamotionsignalthatreachesthesetlevelofsensitivity,
the motion detect alarm is switched on and the linkage function is turned on.

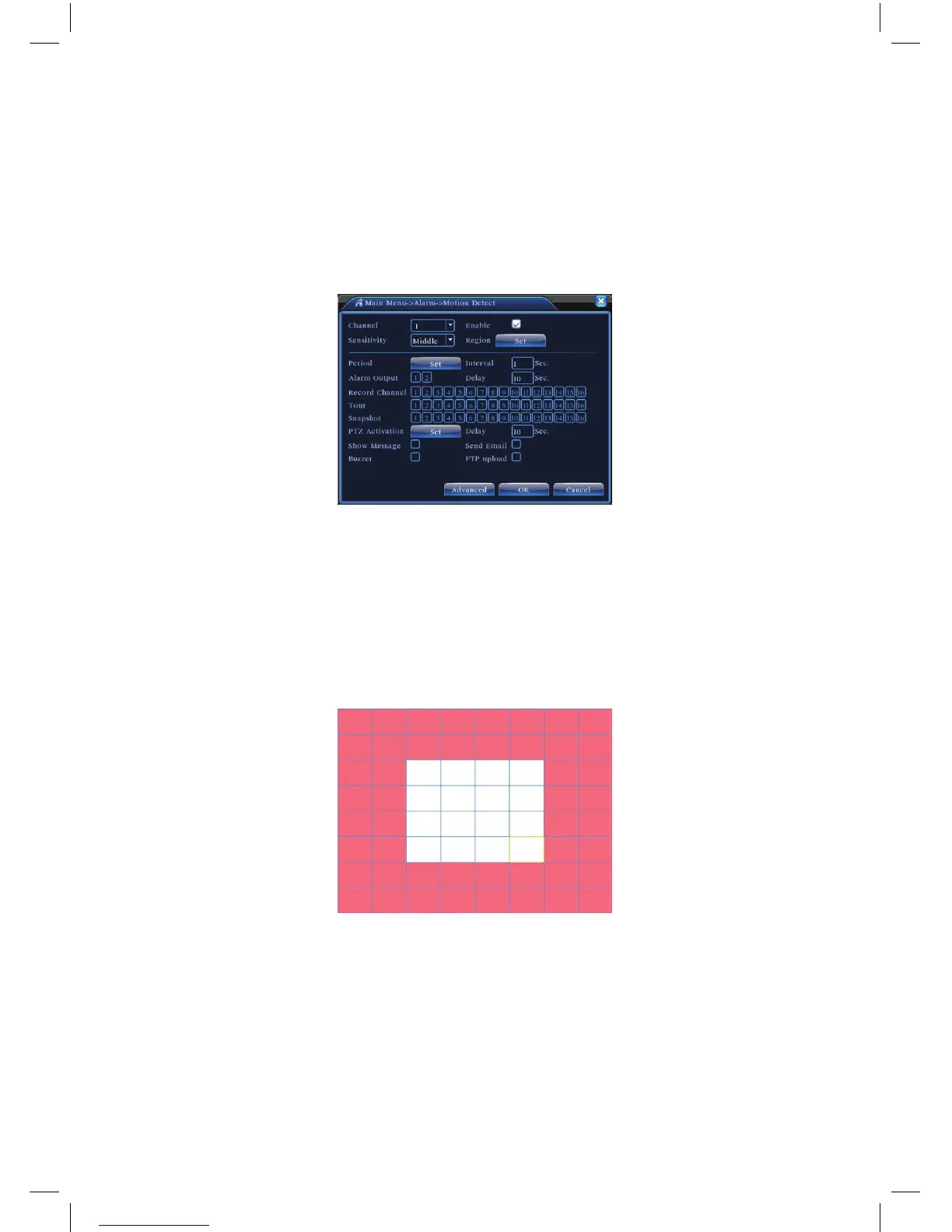

Picture 4.4 Motion Detect
(Channel) Choose the set motion detect channel.
(Enable)  means that the motion detect function is on.
(Sensitivity
)Chooseinthesixoptionsaccordingtothesensitivity.
(Region)Clicksetupandenterthesetarea.TheareaisdividedintoPAL8x8.
Green block means the current cursor area. Yellow block means the dynamic
detect defensive area. Black block means the unfenced area. You can set the area
asfollowed,Dragthemouseanddrawthearea.
Picture 4.5 Region
(Period) Trigger the motion detect signal in the set time section. You can set
according to week or set uniformly. Each day is divided into four time sections.
 means the setup is valid.
