Qvis DVR series User Manual

42
4.4.5 GUI Display
Congurethevideooutputparametersincludingthefrontoutputmodeandcode
output mode.
Front output:Inthelocalpreviewmodeandincludes:channeltitle,timedisplay,
recordstatus,alarmstatus,bitrateinfo,transparencyandregioncover.
Code output:Inthenetworksurveillanceandvideolemodeinclude:channel
title, time display, record status, alarm status, bitrate info, transparency and
region cover.

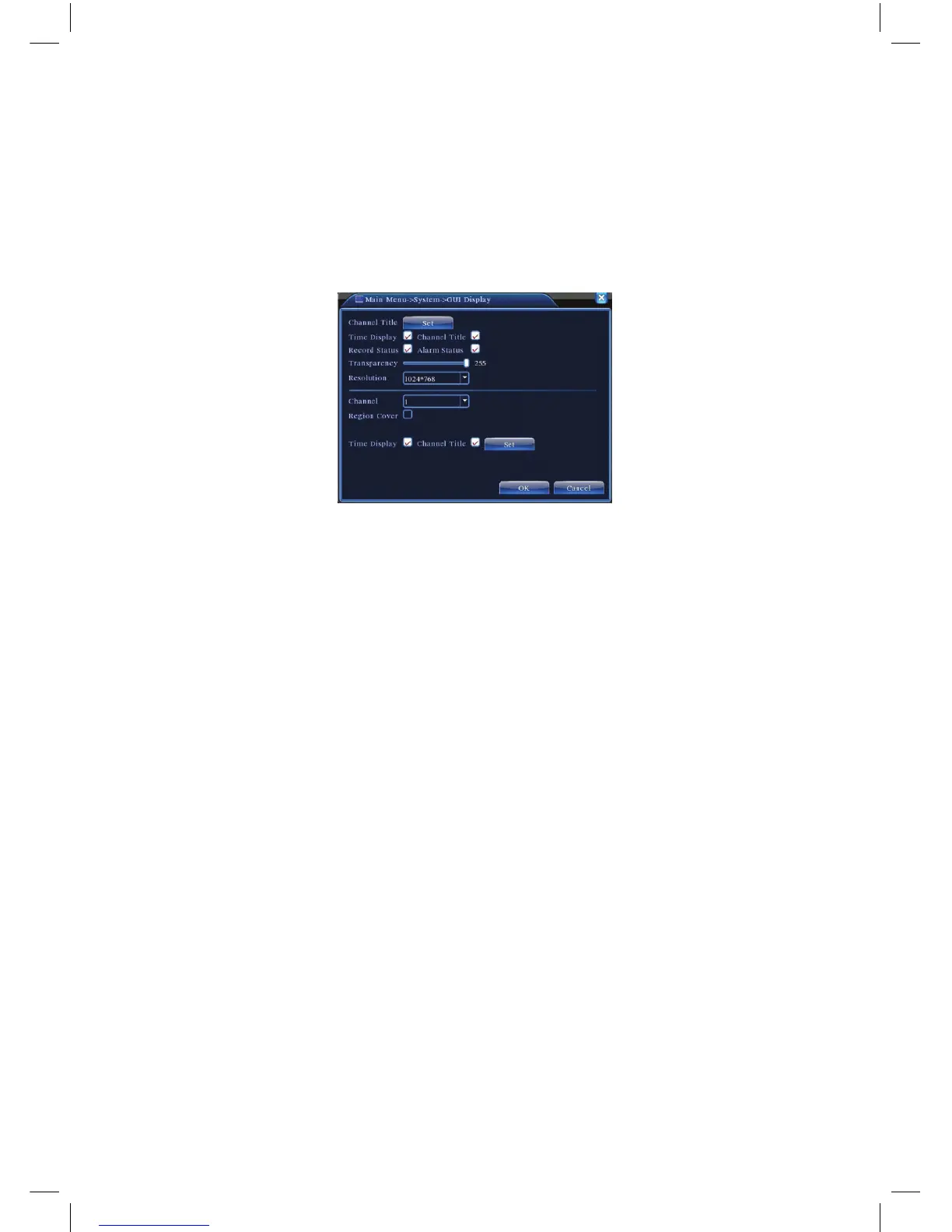

Picture 4.28 GUI Display
(Channel Title) Click the channel name modify button and enter the channel
name menu. Modify the channel name as required.
(Time Display) means the selected state. This displays the system data and time
in the surveillance window.
(Channel Title) means the selected state. This displays the system channel
number in the surveillance window.
(Record Status) means the selected state. This displays the system recording
status in the surveillance window.
(Alarm Status) means the selected state. This displays the system alarm status
in the surveillance window.
(Bitrate info) means the selected state. The ninth window displays the code
streaminformationinthenine-windowpreviewstatus.
(Transparency) Choose the background image level of transparency. The range
is128~255.
(Resolution) set the display resolution.
(Channel) Choose the set code for the output channel number.
(Region Cover) means the selected state. Click the cover area button and enter
the corresponding channel window. You can cover arbitarily using the mouse.
(the black region is for output)
(Time display)
(Channel Title)
