Qvis DVR series User Manual

7
5).
Connect SATA data wire 6). Connect the power wire
7).
Put the top back on 8). Screw on the cover

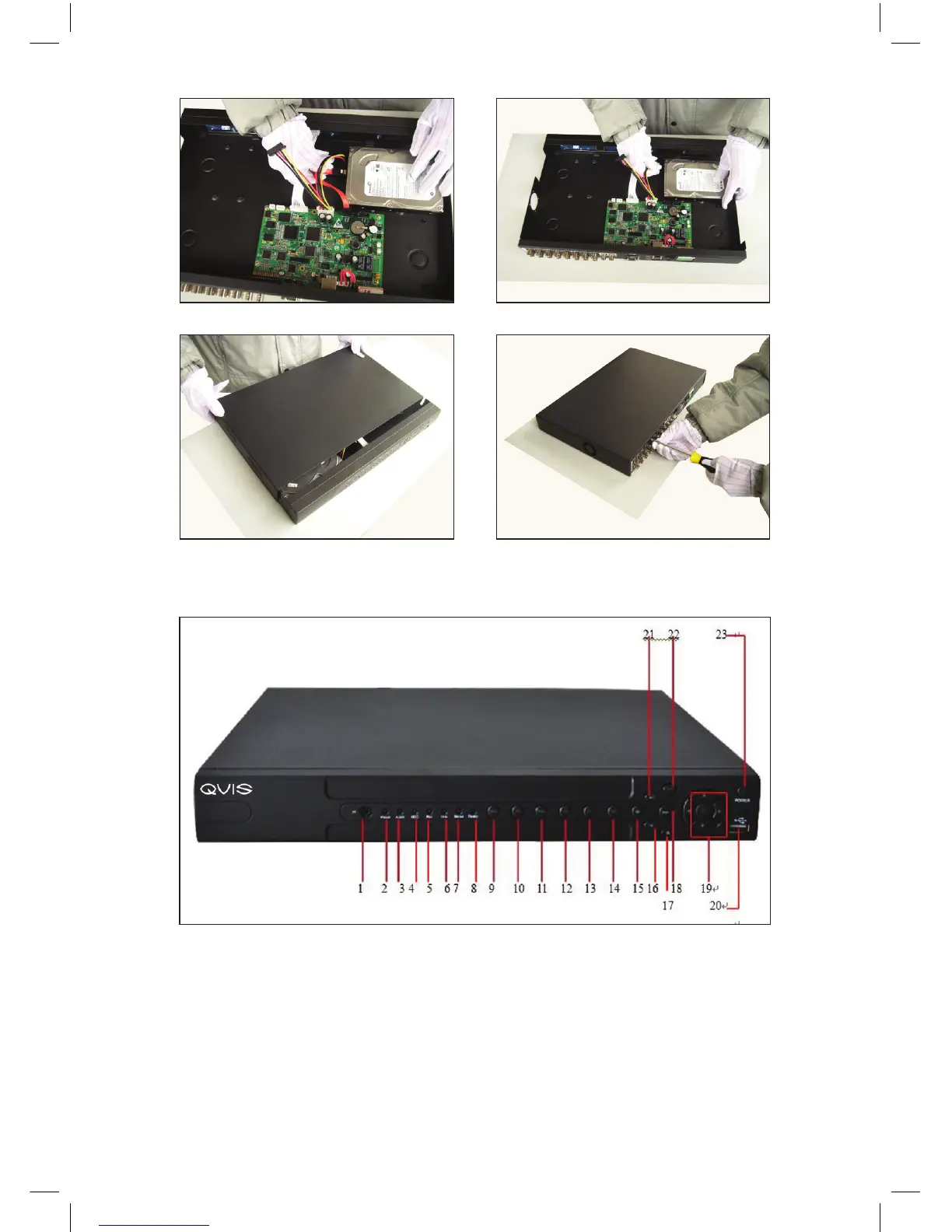

2.3 Front panel (may vary on some models)
(1) IR remoter receiver (2) Power indicator light (3) Alarm indicator light
(4) HDD indicator light (5) Record indicator light (6) Network indicator light
(7) Status indicator lighter (8) Running indicator lights (9) Back to main course
(10) PTZ control (11) Playback (12) Previous File
(13) NextFile (14) Record (15) Slow Play
(16) Backwards Pause (17) Stop (18) Fast Play
(19) Direction&Enter (20) USB (21) Play Pause
(22) ESC (23) Power Switch
