Qvis DVR series User Manual

33
4.3.4 Alarm input
Whenthesystemgetsanexternalalarmsignal,thealarmfunctionisturnedon.

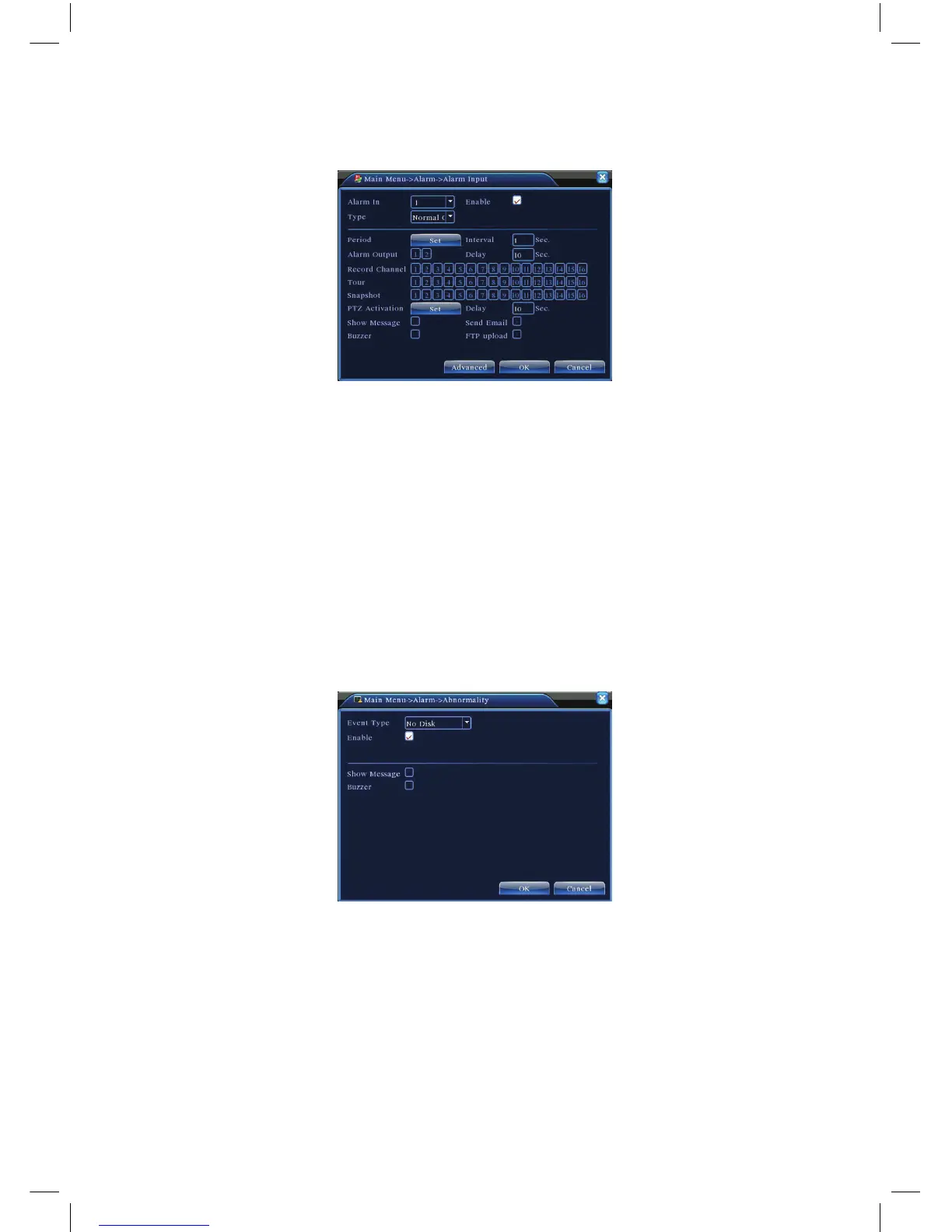

Picture 4.11 Alarm input
Setmethod:refertochapter4.3.1.Motiondetect
Note:"Advanced" button is the same as rightclick.
4.3.5 Alarm output
Refer to chapter 3.5.4.
4.3.4 Abnormal
Analysing and inspecting current software and hardware of the device: When
someabnormaleventshappen,thedevicewillmakearelativeanswersuchas
show message and buzzer.
Picture 4.12 Abnormal
(Event Type) Selecting the abnormity you want to inspect
(Enable) Select it to make sure the abnormal function works
(Show message
)Automaticallyanalarmcuedialogboxcomesuponthemain
screen
(Buzzer)Thedevicewillhavea“didi”noisewhenthealarmissounding
