80 Smartcat (BL2100)
Table C-1 lists the electrical, mechanical, and environmental specifications for the LCD/
keypad module.

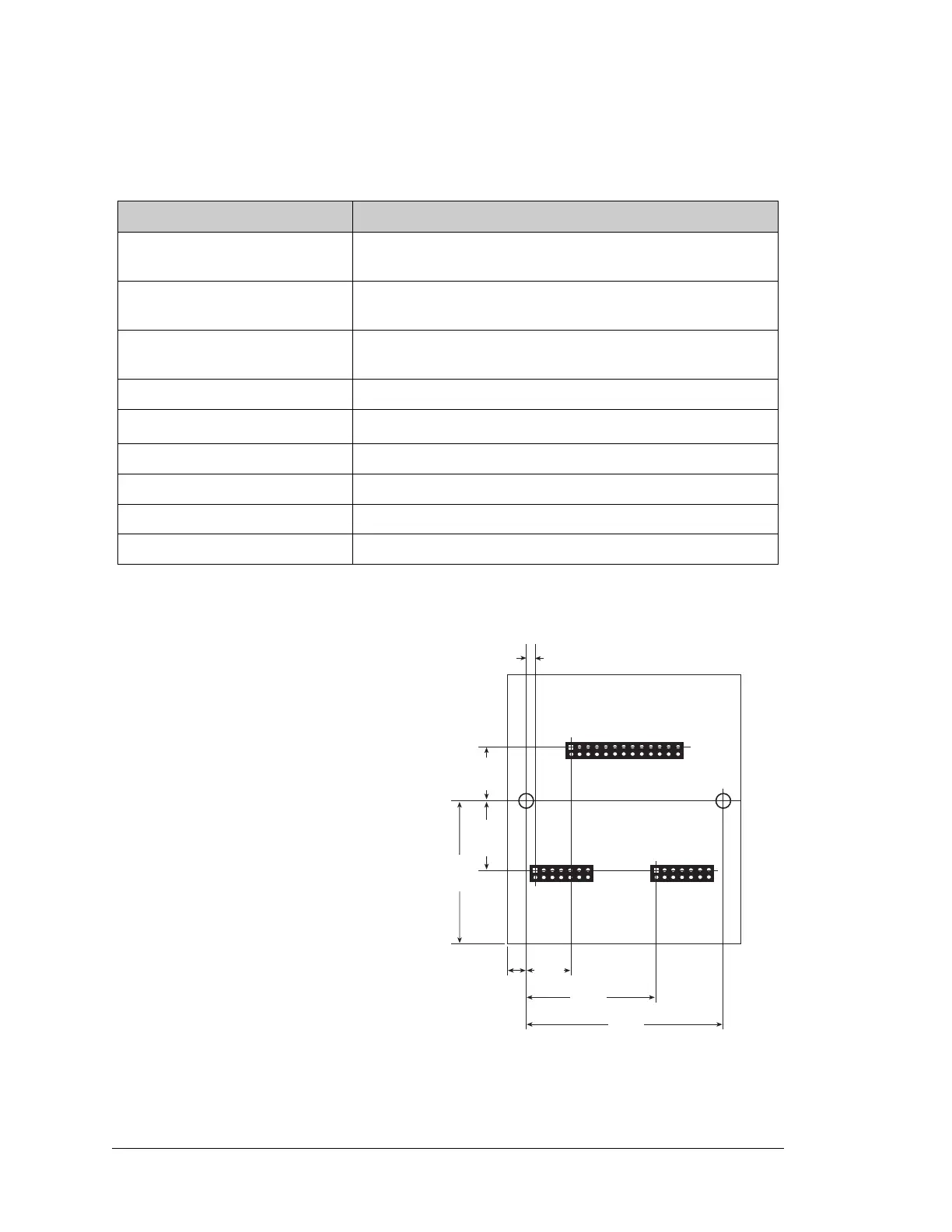

Table C-1. LCD/Keypad Specifications
Parameter Specification
Board Size
2.60" × 3.00" × 0.75"
(66 mm × 76 mm × 19 mm)
Bezel Size
4.50" × 3.60" × 0.30"
(114 mm × 91 mm × 7.6 mm)
Temperature
Operating Range: 0°C to +50°C
Storage Range: –40°C to +85°C
Humidity 5% to 95%, noncondensing
Power Consumption
1.5 W maximum
*
* The backlight adds approximately 650 mW to the power consumption.
Connections Connects to high-rise header sockets on BL2100
LCD Panel Size 122 × 32 graphic display
Keypad 7-key keypad
LEDs Seven user-programmable LEDs
The LCD/keypad module has 0.1"
IDC header sockets at J1, J2, and J3
for physical connection to other
boards or ribbon cables. Figure C-2
shows the LCD/keypad module foot-
print. These values are relative to one
of the mounting holes.
NOTE: All measurements are in
inches followed by millimeters
enclosed in parentheses. All dimen-
sions have a manufacturing toler-
ance of ±0.01" (0.25 mm).
Figure C-2. User Board Footprint for
LCD/Keypad Module
J2
J1
0.200
(5.1)
0.100
(2.5)
0.500
(12.7)
1.450
(36.8)
J3
2.200
(55.9)
1.600
(40.6)
0.768
(19.5)
0.607
(15.4)
