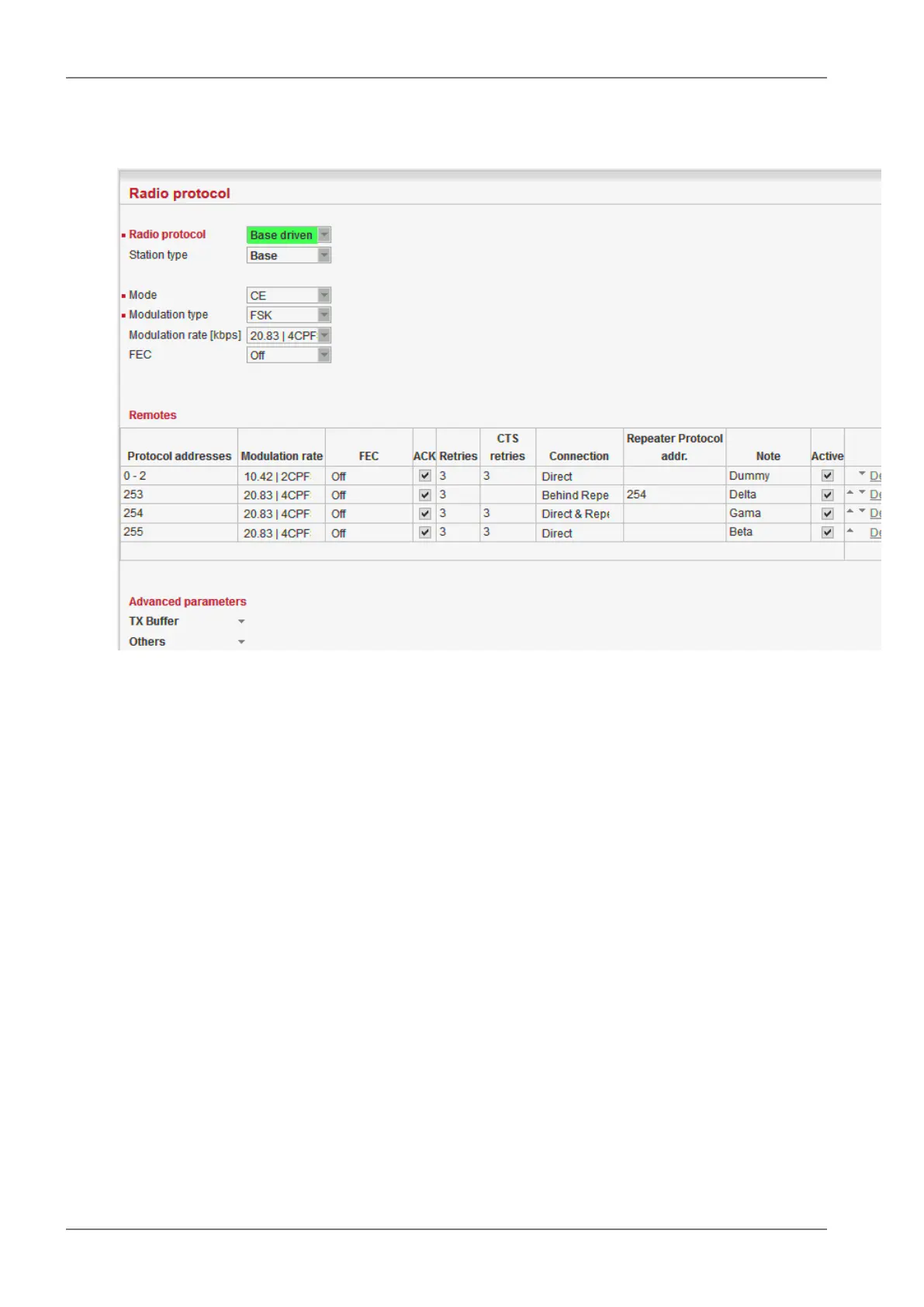

○ Base driven //Operating mode = Router
Router mode with Base driven protocol is suitable for a star network topology with up to 256
Remotes under one Base station. Each Remote can simultaneously work as a Repeater for one
or more additional Remotes. This protocol is optimized for TCP/IP traffic and/or 'hidden' Remotes
in report-by-exception networks when a Remote is not be heard by other Remotes and/or different
Rx and Tx frequencies are used.
All traffic over the Radio channel is managed by the Base station. Radio channel access is
granted by a deterministic algorithm resulting in collision free operation regardless of the network
load. Uniform distribution of Radio channel capacity among all Remotes creates stable response
times with minimum jitter in the network.
Frame acknowledgement, retransmissions and CRC check, guarantee data delivery and integrity
even under harsh interference conditions on the Radio channel.
NOTE 1:
There is no need to set any routes in Routing table(s) for Remote stations located behind Re-
peater. Forwarding of frames from the Base station over the Repeater in either direction is ser-
viced transparently by the Base driven protocol.
NOTE 2:
When Remote to Remote communication is required, respective routes via Base station have
to be set in Routing tables in Remotes.
Station type
List box: Base, Remote
Default = Base
