RadioLink RC4GS V3 User Manual

RadioLink Electronic Limited
www.radiolink.com
10

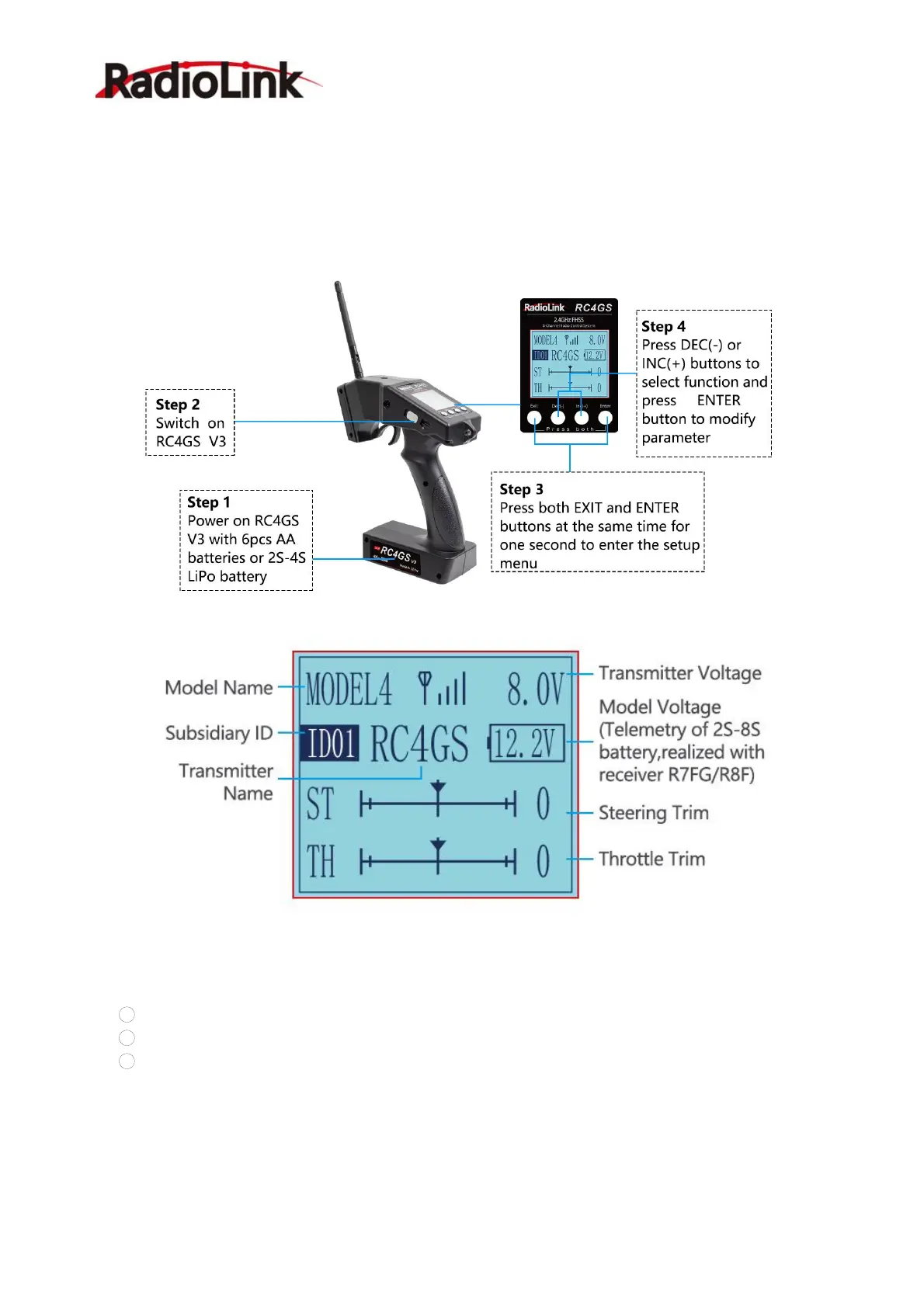

II. RC4GS V3 Functions
2.1 Display on LCD Screen
Basic Operation
When the transmitter is powered on, LCD screen shows Model Name, Transmitter Name, Transmitter Voltage,
Steering Trim, Throttle Trim, Model Voltage, Subsidiary Model ID, Returned Signal.
Note
1 The Subsidiary ID won’t display until the function is activated in the menu ID SEED.
2 The telemetry function of model battery voltage can only be realized with R8FG/R7FG/R8F.
3 When binding is done, there’s signal tower on top middle of the screen. As there’s no amplifier
module added on R6FG, the signal telemetry from receiver is about 80m(262.5ft). If the distance is longer
than 80m, the signal tower may disappear but the control range of RC4GS V3 is as long as 400m(1312ft).

RadioLink RC4GS V3 Specifications

General

Channels	4
Frequency	2.4GHz
Model Memory	10 models
Telemetry	Yes
Modulation Mode	FHSS
Spreading Spectrum	DSSS
Screen	128*64 LCD
Low Voltage Alert	Yes
Simulator	Yes
Weight	320g
RF Power	<20dBm
Band	2.4GHz
Display	LCD
Fail-Safe	Yes
Power Supply	6x AA batteries or 2S LiPo
Adjacent Channel Rejection	>38dB
Transmitter Power	<20dBm
Operating Voltage	4.8~8.4V
Model Type	Car/Boat
