for one second), press “Inc(+)” button four times to chose STSPD function.
(2) Press“Enter” button to get into STSPD function interface, press “Dec(-)” or“Inc(+)” button to select setup
item, then press “Enter” key and the initial value of selected setup item will blink.
(3) Use“Dec(-)” or “Inc(+)” button to adjust the value of the selected setup item.
(Note : In the interface of adjusting the value, return to the initial value "100%" by pressing“Dec(-)” and“Inc(+)”
buttons simultaneously for about 1 second.)
(4) Press “Enter”button, the adjusted value of the selected setup item stops blinking, now the value of the
selected setup item has been set.
(5) Return to the initial screen by pressing “Exit” button twice.
2.7 Throttle Exponential "THEXP"
This function makes the throttle high side and brake side direction servo operation quicker or milder. It has no
effect on the servo maximum operation amount. For the high side, selection from among three kinds of curves
(CRV/VTR/EXP) is also possible.
The curve can be divided into: Five dots throttle curve adjustment, Single point adjustment,
Exponential curve adjustment, Braking index curve adjustment.
Curve point adjustment(select five points 1-5)
(1) Press"Enter" button,The curve point value start flashing,then
press"Dec(-)"and"Inc(+)" button to adjust the starting value.
(2) Press "Enter" button ,starting value stop flashing,adjustment is
completed.
(3) Press "Exit" button for two times,back to the initial interface.
Throttle curve adjustment
Adjustment method for CRV curve
Setup Items
Mode: ON/OFF
RATE: 0%~100%

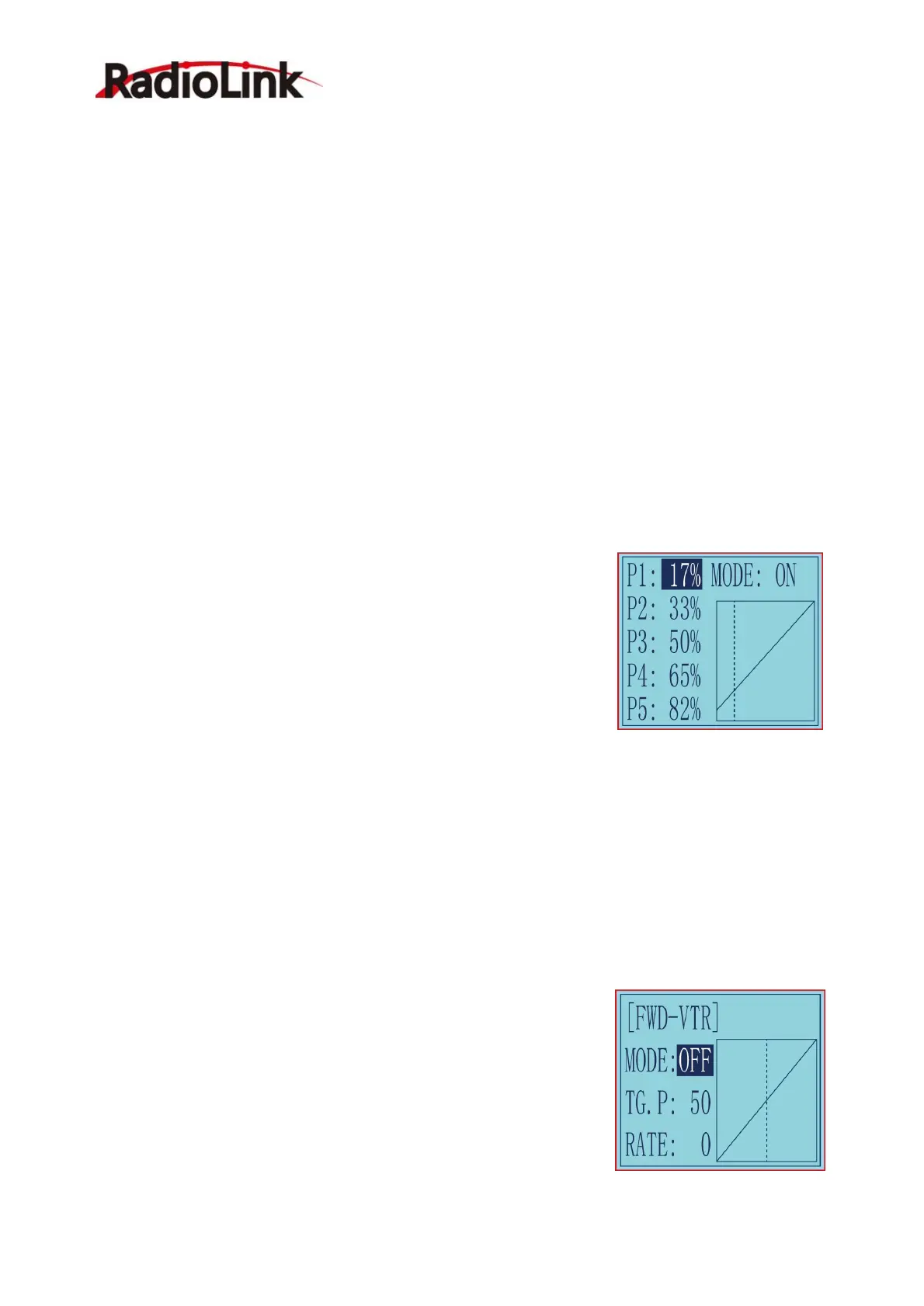

1. Enter the function menu and use“ Dec(-) ” or “ Inc(+) ”button
to access THEXP function. Select “FWD-CRV” function.
2. Press “Dec(-)” or “Inc(+)” button to select curve points 1~5
for curve point adjustment that you want, from the graph you
will clearly see the changes you have made.
Adjustment method for VTR curve
Adjustment range
TG.P: 20-80
RATE: -100~0~+100
1.Enter the function menu and use “Dec(-)” or“Inc(+)”button
to access THEXP function. Select“FWD-VTR” function.
2.Press “Dec(-)” or “Inc(+)” button to select RATE for forward
side adjustment that you want, when the “MODE” value is “OFF” the VTR
will not work, only the “MODE” value set to “ON” the VTR function is
available. From the graph you will clearly see the changes you have made on TG.P and RATE.
