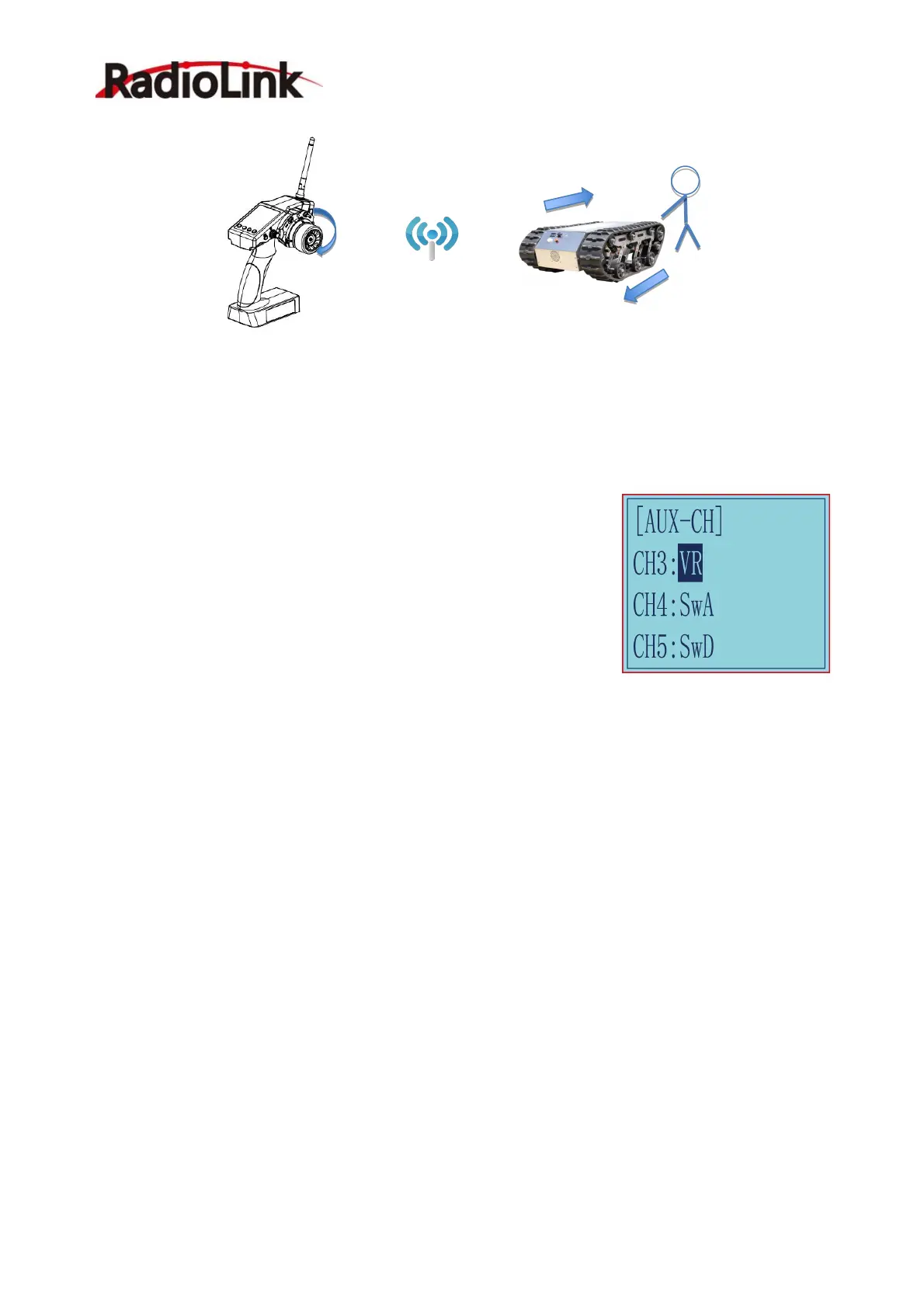

2.17 Auxiliary Channel "AUX-CH"
In addition to the two basic channels of the steering channel (channel 1) and
the throttle channel (channel 2), RC4GS V3 also has three auxiliary
channels, all of which can be customized to assign control switches.
The control switch of the auxiliary channel can be selected as ST, TH, VR,
SwA, SwD, LK-A, LK-D, NULL.
When it is set to NULL, the channel will not be controlled by any switch;
When the channel is set to ST as the control switch, the channel will be
controlled by the steering wheel;
When the channel is set as TH as the control switch, the channel will be
controlled by the throttle trigger;
SwA and SwD are jog switches. When SwA/SwD is pressed, the channel output value will jump from the initial
value to the maximum value (or minimum value), and when the switch is released, it will return to the initial
value (For example, after pressing SwA, the channel output +100 , and after releasing SwA, the channel
output will return to -100);
LK-A is the lock mode of SwA. When the channel is set to LK-A as the control switch,after pressing SwA, the
output of the channel will jump to the maximum value (or minimum value), and will not return to the initial
value when the switch is released. (For example, after pressing SwA, the channel outputs +100, and after
releasing the switch, the +100 will remain unchanged. After pressing SwA again, the channel will output -100 ,
and the rudder will remain unchanged after releasing it). LK-D is the lock mode of SwD.
Note: The lock mode is another working logic of the jog switch and the two-way switch. After the channel
control switch is set to LK-A or LK-D, the SwA or SwD switch is also used to control the current auxiliary
channel, but the effect achieved is different from SwA and SwD. When setting to LK-A and LK-D, releasing the
switch will not return to the initial value. When set to SwA and SwD, releasing the switch will return to the
initial value.
Setting method:
(1) Long press "Exit" and "Enter" button simultaneously for one second to enter the function menu of RC4GS
V3. Press "Inc(+)" button at the bottom of the screen to move the cursor to "17. AUX-CH", and then press "
Enter” button to enter the function setting interface.
Steering mix throttle setup completed, left track moves forward while right backward when
turning the wheel clockwise. The differential realizes the right turning of track vehicle
