3.3 ADVANCED Menu

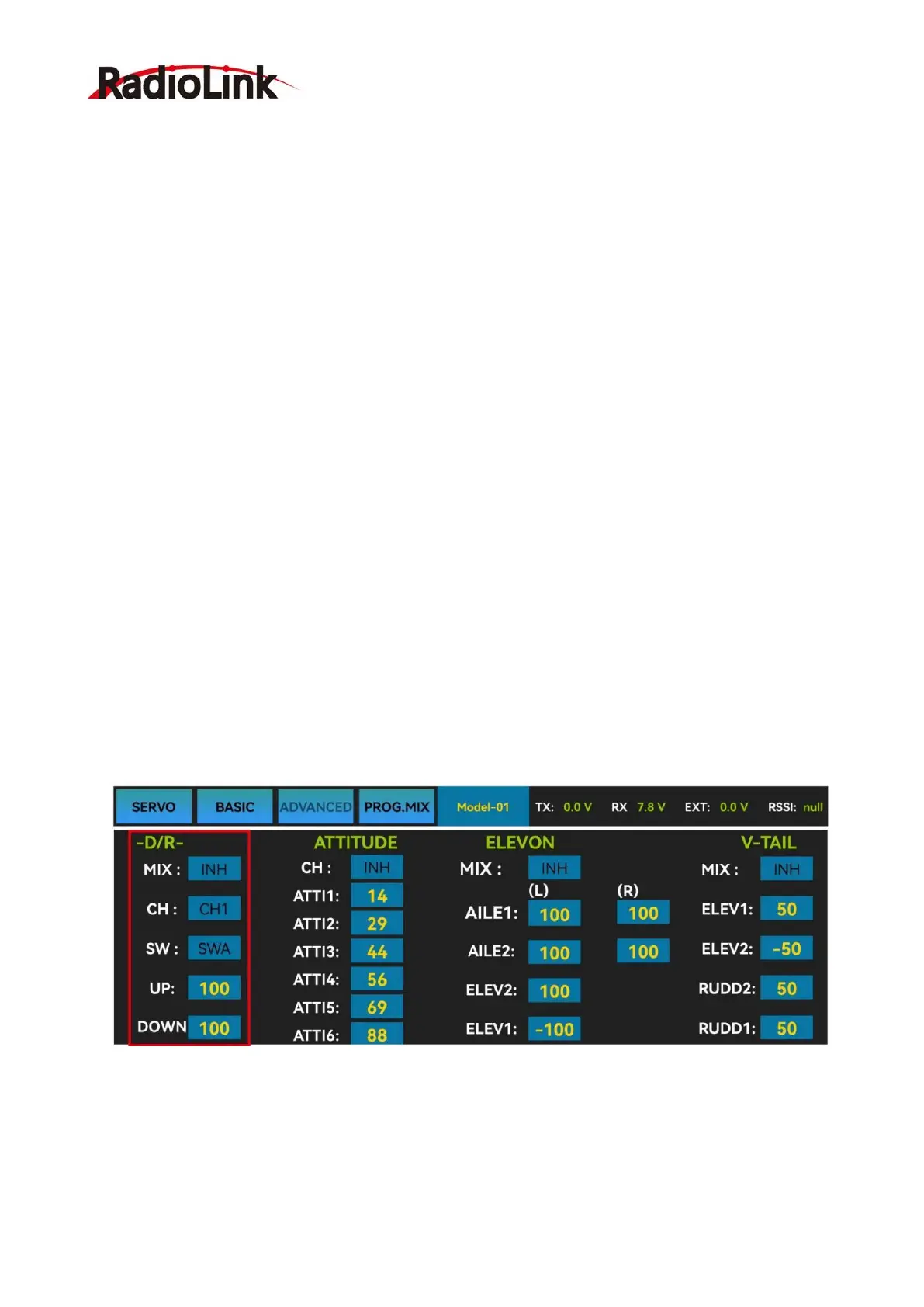

3.3.1 D/R (Dual Rate)
The model can be controlled to work on different servo travel range by a switch. Before using
this function, set the state of “Mix” from “INH” to “ON”.CH1/2/3/4 can be chosen to set
separately. the switch can be set to SWA or SWB. “Up” and “Down” correspond to the
positions of switch. The value of “Up” and “Down” is maximum servo travel range you set.
Channels 1 to 4 can be set for different servo travel range both individually and at the same
time.
When setting one channel for different servo travel range, click “WRITE” after setting D/R
value for the corresponding channel. When setting 4 channels for different servo travel range at
the same time, click “WRITE” after setting D/R value for each channel. For example: after setting
D/R value of channel 1, click “WRITE” to save the settings, and then switch the channel to
“CH2”. Set D/R value of channel 2, and then click “WRITE” to save the settings. Repeat this
step for channel 3 and channel 4.
DR/CURE: It’s an index. When it is not set, the value defaults to 0, and the output servo travel
range of the corresponding channel will be output in proportion to the move of the joystick. The
value can be set from -100% to +100%. The change of the index will not change the maximum
and minimum servo travel range. When controlling the aircraft, the index setting value is usually
negative.
When the index is a negative value, the greater the negative value, the lower the sensitivity of
the joystick in the neutral position and the higher the sensitivity at both ends position.
When the index is a positive value, the greater the positive value, the higher the sensitivity of
the joystick in the neutral position, and the lower the sensitivity at both ends position.
