RadioLink Electronic Limited
www.radiolink.com
22

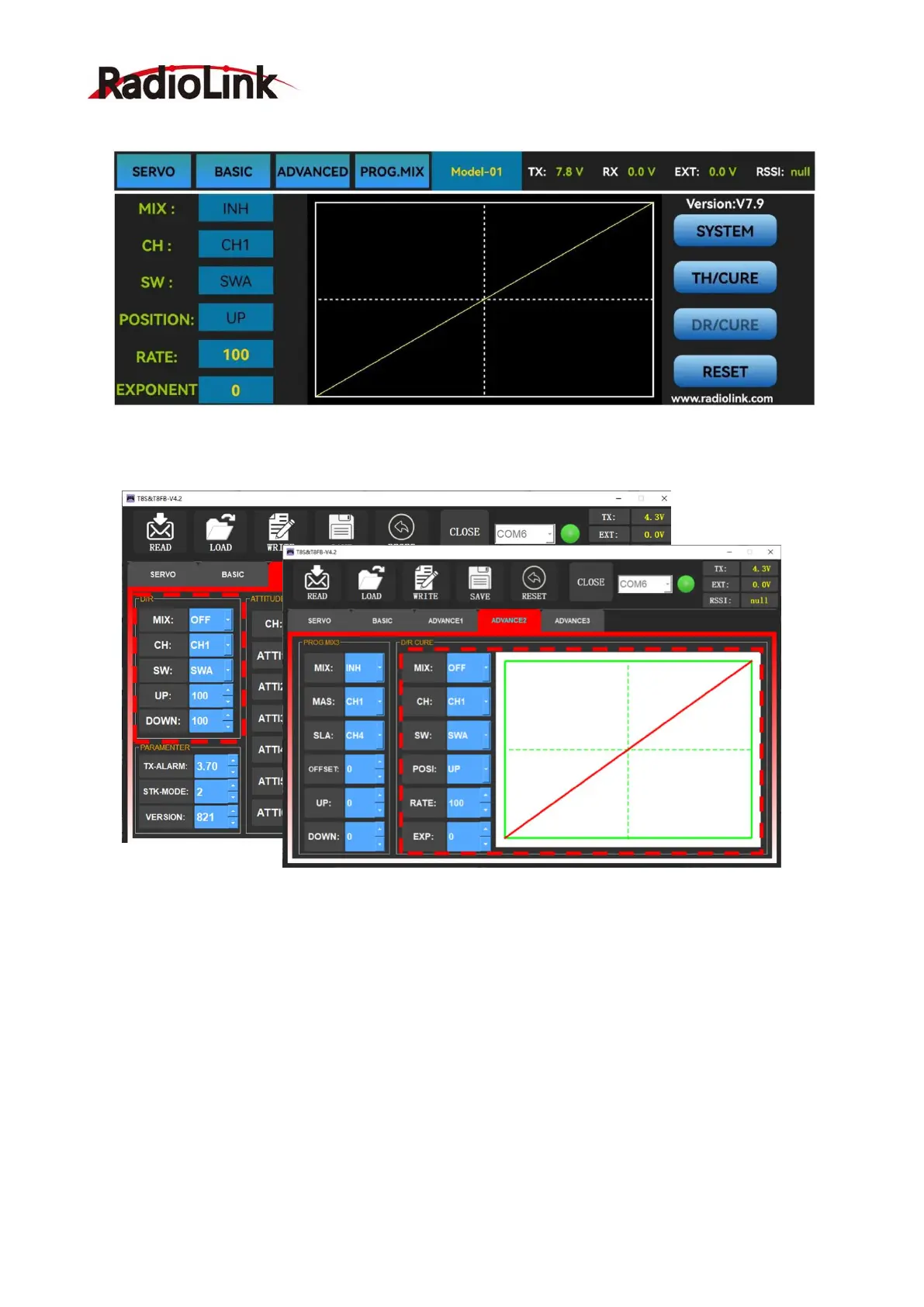

The interface of parameter setup APP on phone.
The interface of parameter setup software on computer.
3.3.2 ATTITUDE
Select the preferred channel from CH5 through CH8. CH5 is always the default switch to
change attitude when connect to flight controller PIXHAWK/MINI PIX/APM/TURBO PIX with
multi-rotor firmware, and CH8 is the default switch with fixed-wing firmware, while CH7 is default
when connect to DJI flight controller. For the default channel to switch attitudes, please refer to
the flight controller user manual.
Note: After open the “Attitude” function, the switch of CH5 and CH7 will be used by default
to control the output of the “attitude channel”.
