Note: Each interface can display the transmitter voltage, receiver voltage, RSSI value, and
telemetry battery voltage (Telemetry function is available when using R8FG, R7FG, R8F, R8XM
receivers ).
Chapter 3 Function Setup Menu on APP
3.1 SERVO Menu
The 8 rectangles show the CH1-CH8 servos range instantly (4 basic channels and 4 auxiliary
channels) from left to right. CH1--Aileron, CH2 - Elevator, CH3 - Throttle, CH4--Rudder, CH5 to
CH8--Auxiliary channels.
There is a real-time display when you are toggle any channel switch, it is suitable for set up
complex mix control functions.

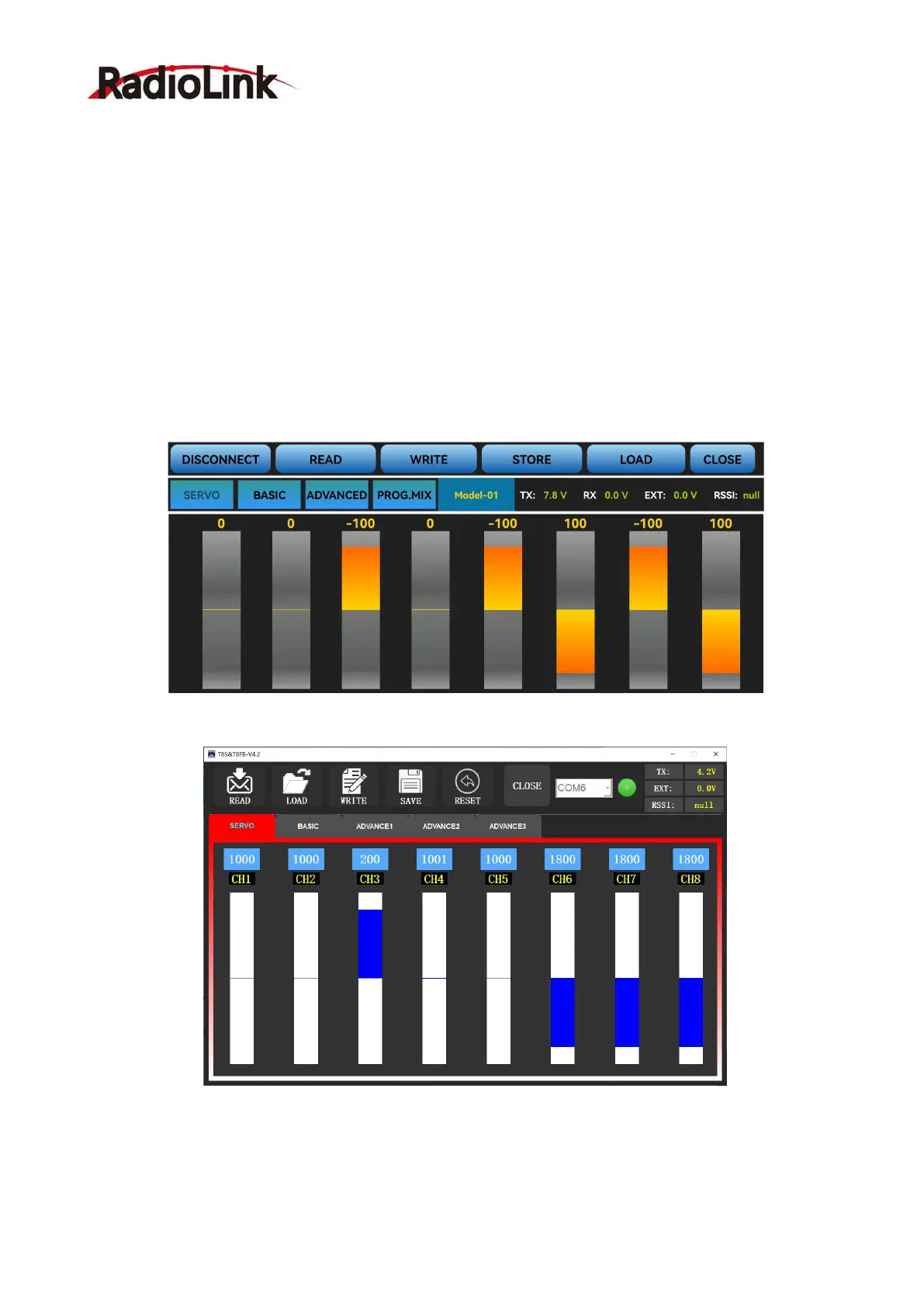

The interface of parameter setup APP on phone.
The interface of parameter setup software on computer.
