RadioLink t8fb User Manual

RadioLink Electronic Limited
www.radiolink.com
42

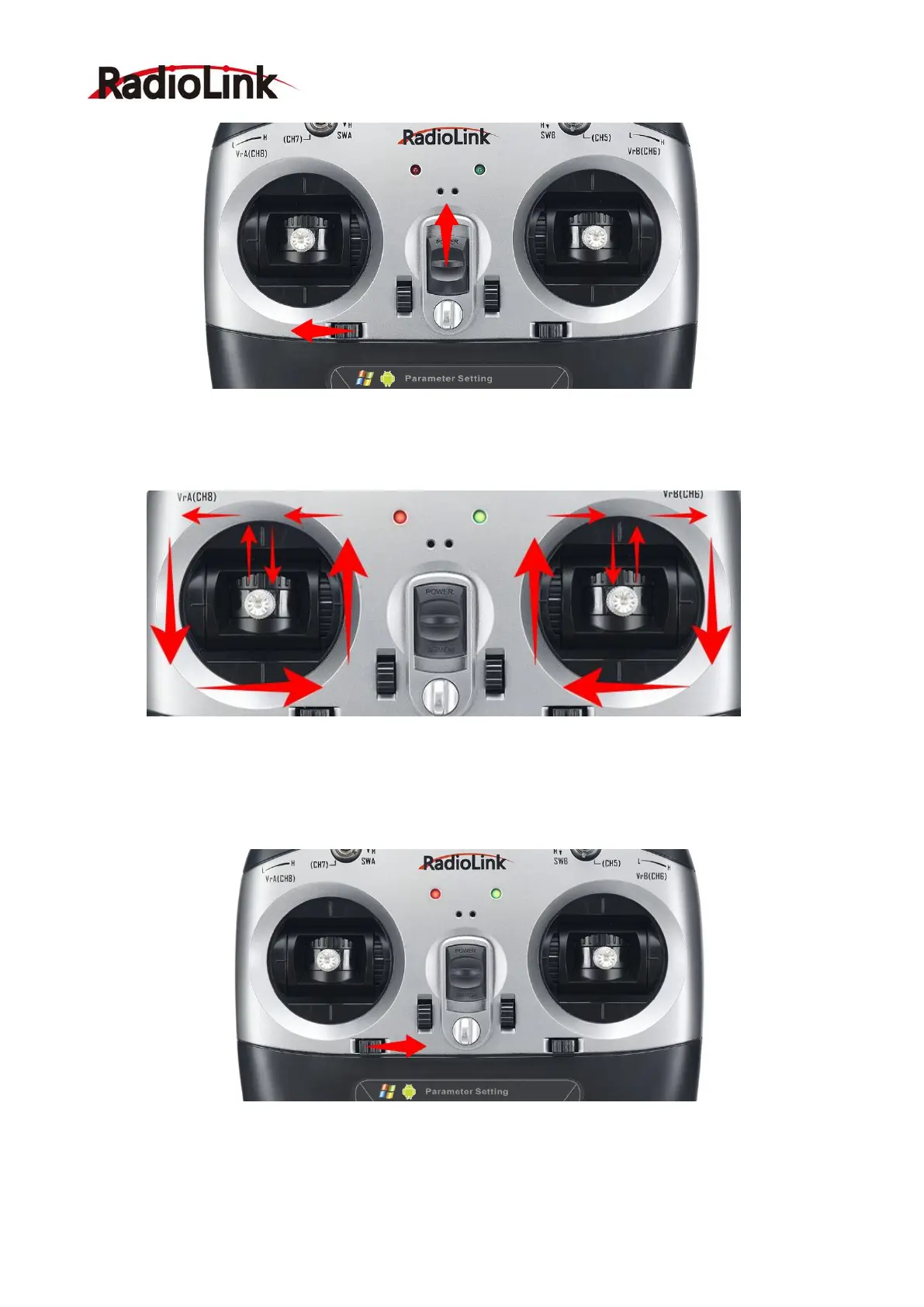

2. Range Calibration: Toggle both sticks (Ch1-4) to the highest point/maximum and the lowest
point/minimum. Then back to the central point. (Refer to image below)
3. Central Point Calibration: When the joysticks are back to the central point, press rudder
trimmer right, and then red and green LED always on means sticks calibration is done with
success. Then turn off T8FB and repower it on.

RadioLink t8fb Specifications

General

Channels	8
Frequency	2.4GHz
Modulation	FHSS
Spread Spectrum	Yes
Output	PPM
Compatibility	R8EF, R8FM
Battery	4 x AA batteries
Power Supply	4 x AA batteries
